3.12 Console Type Indoor Unit
3.12.1 Outline and installation dimension
The table below lists the detailed dimensions.
Unit: mm
Item
Model
W
H
D
GMV-ND22C/A-T, GMV-ND28C/A-T
GMV-ND36C/A-T, GMV-ND45C/A-T
GMV-ND50C/A-T
700
600
215

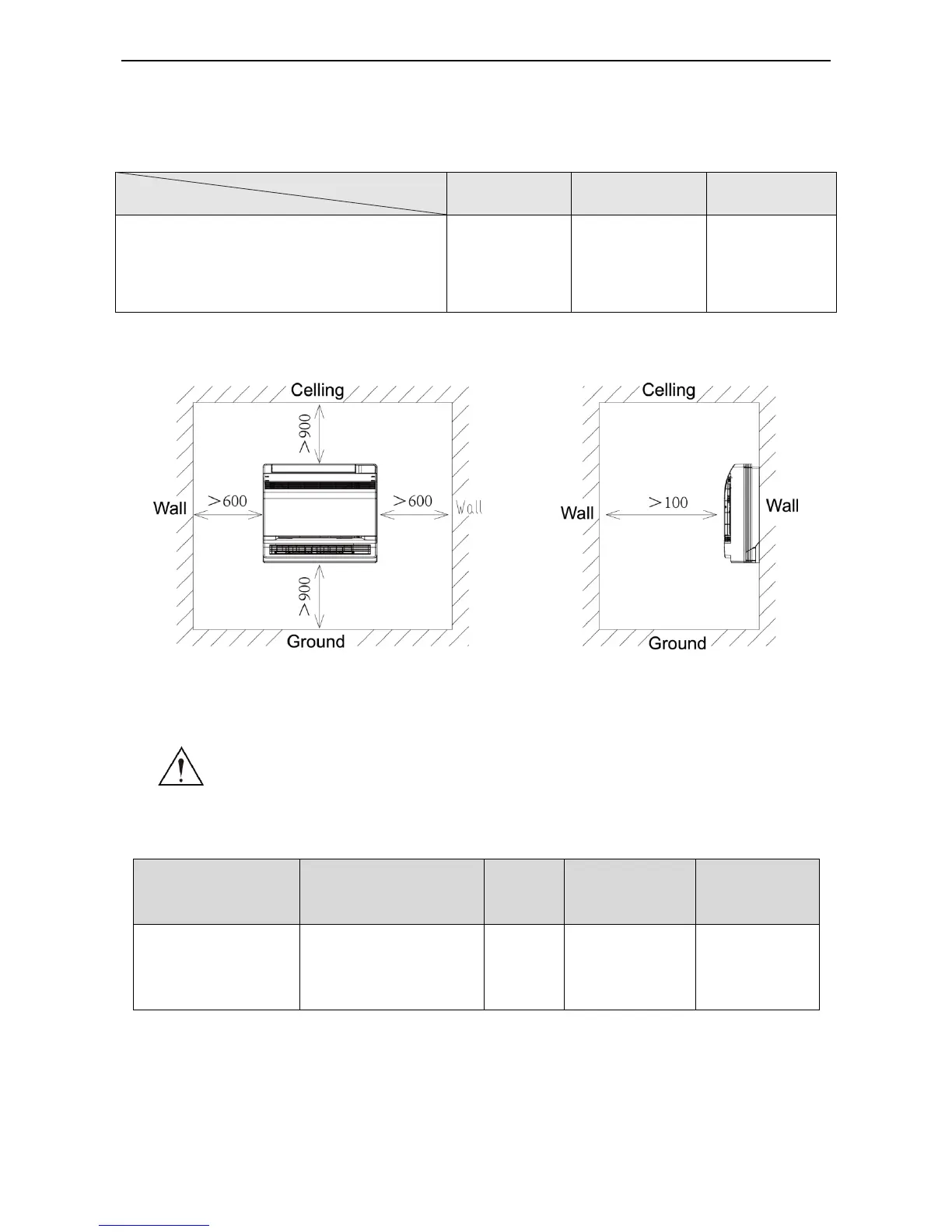

3.12.2 Installation space
(Unit:mm)
3.12.3 Installation notice
Connect the ends of the connection pipe with two leading pipes, and then tighten the joint nuts tightly.
Connect the connect pipe with the two relative leading pipe, tie the nut on tie –in of the connect pipe
tightly.
Notes:
③ Be careful in bending the connection pipes, or you would damage the pipes.
④ If the tightening torque for the flare nut is too great, leakage would happen.
3.12.4 Selection of air switch and power cord
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power
Cord
(mm
2
/AWG)
GMV-ND22C/A-T, GMV-
ND28C/A-T
GMV-ND36C/A-T, GMV-
ND45C/A-T
GMV-ND50C/A-T
220-240V ~ 50Hz
6
1.0/AWG18
1.0/AWG18
