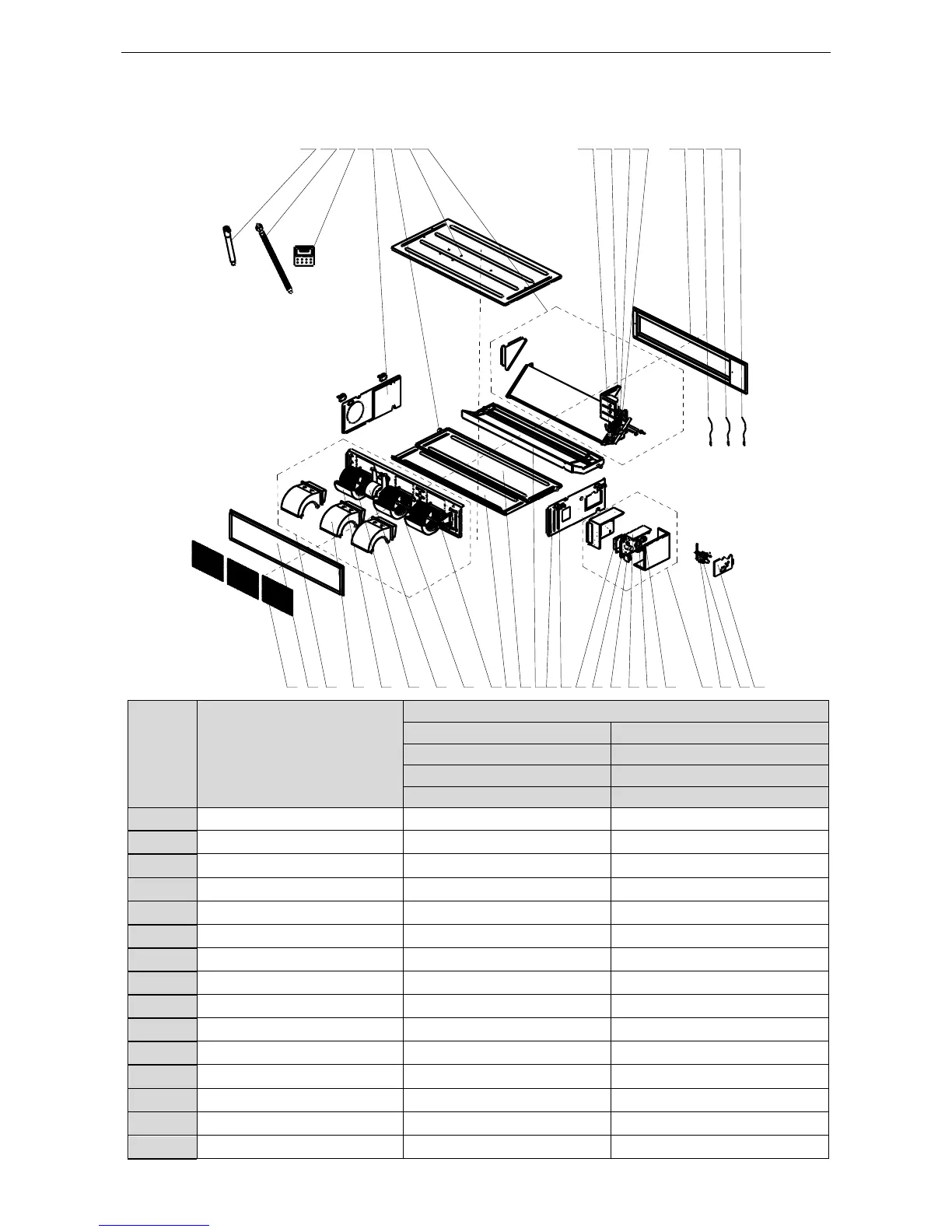

Exploded View of GMV-ND140PHS/B-T、GMV-ND160PHS/B-T：
2
3 4 5 6 7 8
12
28293031
343536
15 16
17 18 19
21 22
23
9 10 11
24
32
33
27 26 25
严 禁 在 潮 湿 场
所 使 用
3738
13
14
201
39
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND140PHS/B-T
CM810N0460
GMV-ND160PHS/B-T
CM810N0840
Part code
Quantity
1
Filter Sub-Assy
'111001000052
3
2
Return Air Frame Sub-Assy
'017026000003
1
3
Centrifugal Fan Assy
'000052000029
1
4
Propeller Housing(Upper)
'26905200078
3
5
Propeller Housing(Lower)
'26905200079
3
6
Centrifugal Fan
'10455200003
3
7
Brushless DC Motor
'1570940000801
1
8
Joint Slack
'73018731
1
9
Fan Bearing
'76512210
1
10
Cover Plate(Air return)
'01265200123
1
11
Bottom Cover Plate
'01265200125
1
12
Foam Sub-Assy(Water Tray)
'12505200021
1
13
Left Side Plate Assy
'01314100118
1
14
Hook
'02112466
4
15
Radiator
49018000068
1
