Multi Variable Air Conditioners Wall Mounted Type Indoor Unit
8
manufacturer.
④ If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
⑤ Install cut-off device near the unit. The minimum distance between each stage of
cut-off device should be 3mm (The same for both indoor unit and outdoor unit).
4 Installation Instructions
4.1 Installation of Indoor Unit

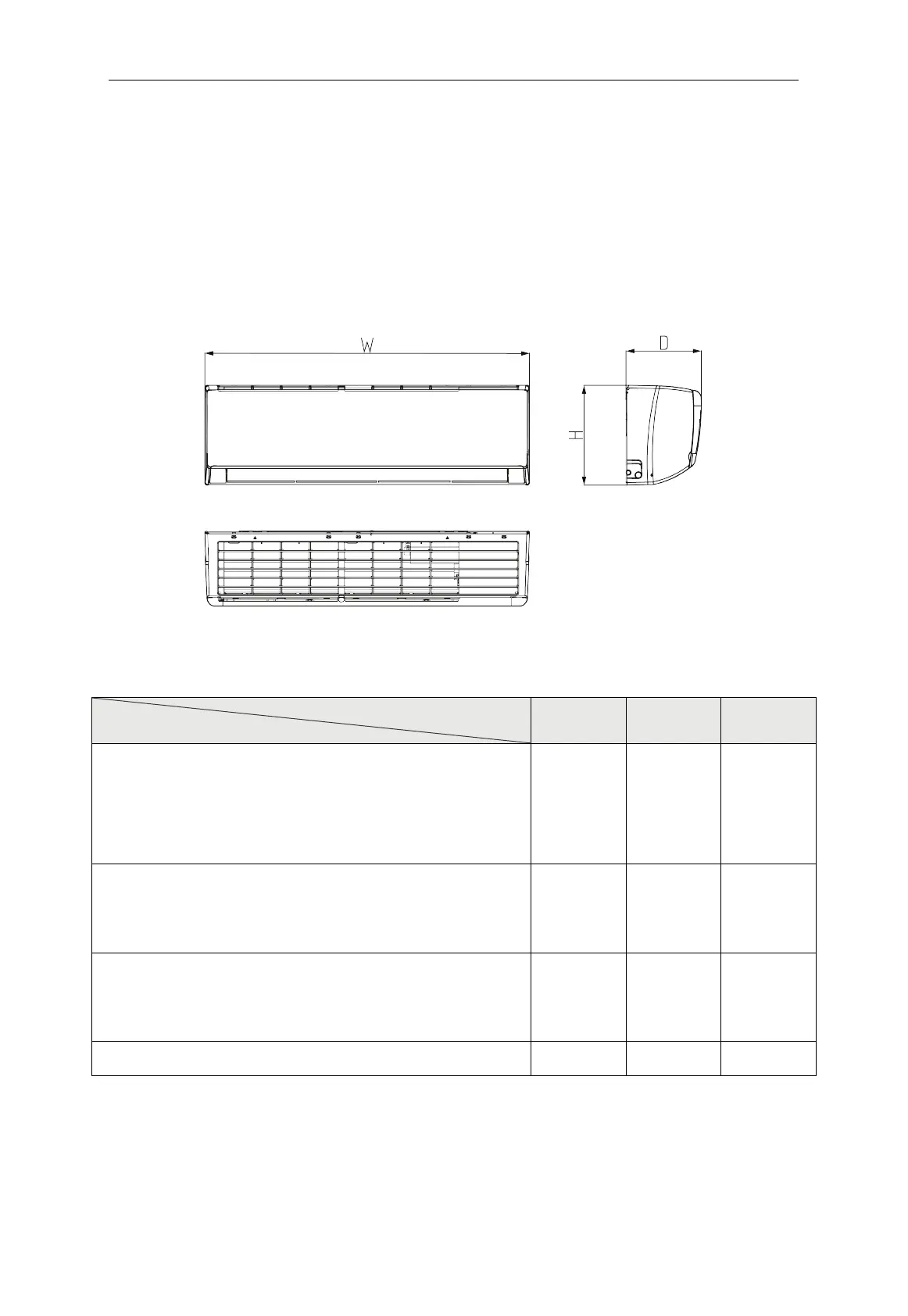

Fig 4.1
Below are dimensions of W, H, D for different models:
Unit: mm
Model
W H D
GMV-ND15G/B6B-T,GMV-ND18G/B6B-T
GMV-ND22G/B6B-T,GMV-ND28G/B6B-T,GMV-ND36G/B6B-T
GMV-ND15G/B4B-T,GMV-ND18G/B4B-T
GMV-ND22G/B4B-T,GMV-ND28G/B4B-T,GMV-ND36G/B4B-T
GMV-ND22G/C4B-T,GMV-ND28G/C4B-T,GMV-ND36G/C4B-T
GMV-ND22G/C2B-T,GMV-ND28G/C2B-T,GMV-ND36G/C2B-T
GMV-ND22G/D2B-T,GMV-ND28G/D2B-T,GMV-ND36G/D2B-T
845 289 209
GMV-ND45G/B6B-T,GMV-ND50G/B6B-T
GMV-ND45G/B4B-T,GMV-ND50G/B4B-T
GMV-ND45G/C4B-T,GMV-ND50G/C4B-T
GMV-ND45G/C2B-T,GMV-ND50G/C2B-T
GMV-ND45G/D2B-T,GMV-ND50G/D2B-T
970 300 224
GMV-ND56G/B6B-T,GMV-ND63G/B6B-T,GMV-ND71G/B6B-T
GMV-ND56G/B4B-T,GMV-ND63G/B4B-T,GMV-ND71G/B4B-T
GMV-ND56G/C4B-T,GMV-ND63G/C4B-T,GMV-ND71G/C4B-T
GMV-ND56G/C2B-T,GMV-ND63G/C2B-T,GMV-ND71G/C2B-T
GMV-ND56G/D2B-T,GMV-ND63G/D2B-T,GMV-ND71G/D2B-T
1078 325 246
GMV-ND80G/B4B-T,GMV-ND90G/B4B-T,GMV-ND100G/B4B-T 1350 326 258
