Gree GMV5 Compact Series Service Manual

PRODUCT 6 0
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL

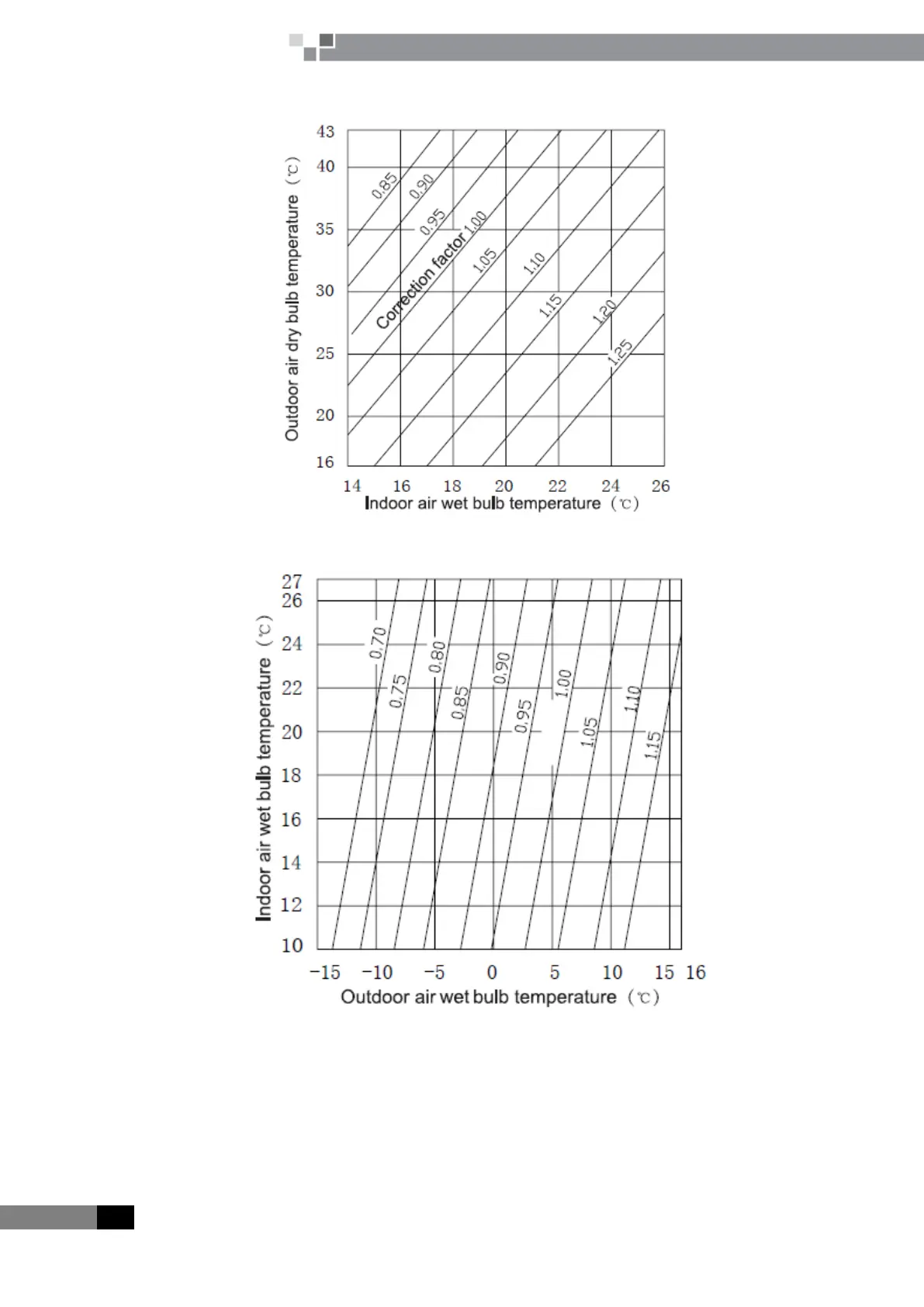

b. Correction factor of heating capacity
4.2 Correction factor of pipe length and height difference
(1) Symbol description:
Hp: Height difference in case indoor unit is below outdoor unit (m);
Hm: Height difference in case indoor unit is above outdoor unit (m);
L: Length of one-way equivalent pipe.
(2) Below table shows the capacity variance ratio for 100% full load in standard working condition (thermostat
