6 Explosive View and Parts List

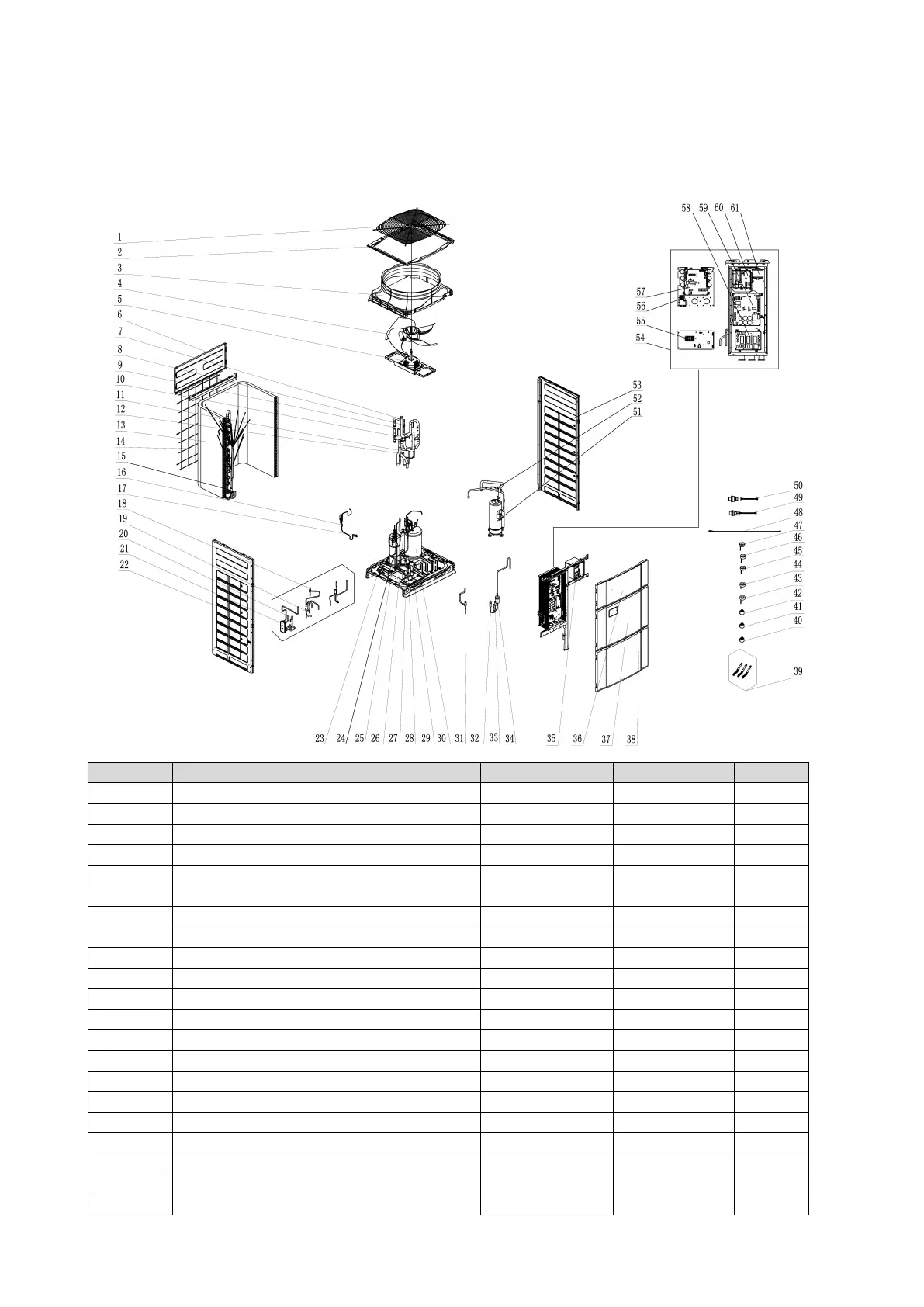

6.1 Explosive View and Parts List of GMV-224WM/G-U, GMV-
280WM/G-U and GMV-335WM/G-U
No.
Name
Material code
Vulnerable part *
Qty
1
Rear Grill
016001060007
*
1
2
Coping
012049000050
1
3
Diversion Circle
200150060002
*
1
4
Axial Flow Fan
103002000007
*
1
5
Brushless DC Motor
1570412406
*
1
6
Cover Plate
012035000236P
*
2
7
Nozzle for Adding Freon
06120012
*
1
8
Nozzle for Adding Freon(R410A)
06123006
*
1
9
One Way Valve
071001060007
*
1
10
4-Way Valve
43000339
*
1
11
Filter
07218603
1
12
Discharge Charge Valve
07334100002
*
1
13
Condenser Assy
01100206041301
*
1
14
Rear Grill
016001060006
*
1
15
Filter
0341010701
*
1
16
Strainer
07415200002
*
1
17
Nozzle for Adding Freon
06130002
*
1
18
Electromagnetic Valve
43044100224
*
1
19
Gas Tube Filter
072190511
*
1
20
Electronic Expansion Valve
43044100172
*
1
21
Plate-type Heat Exchanger
010007060008
1
