Gree GMV6 DC Inverter VRF Units Service Manual
305

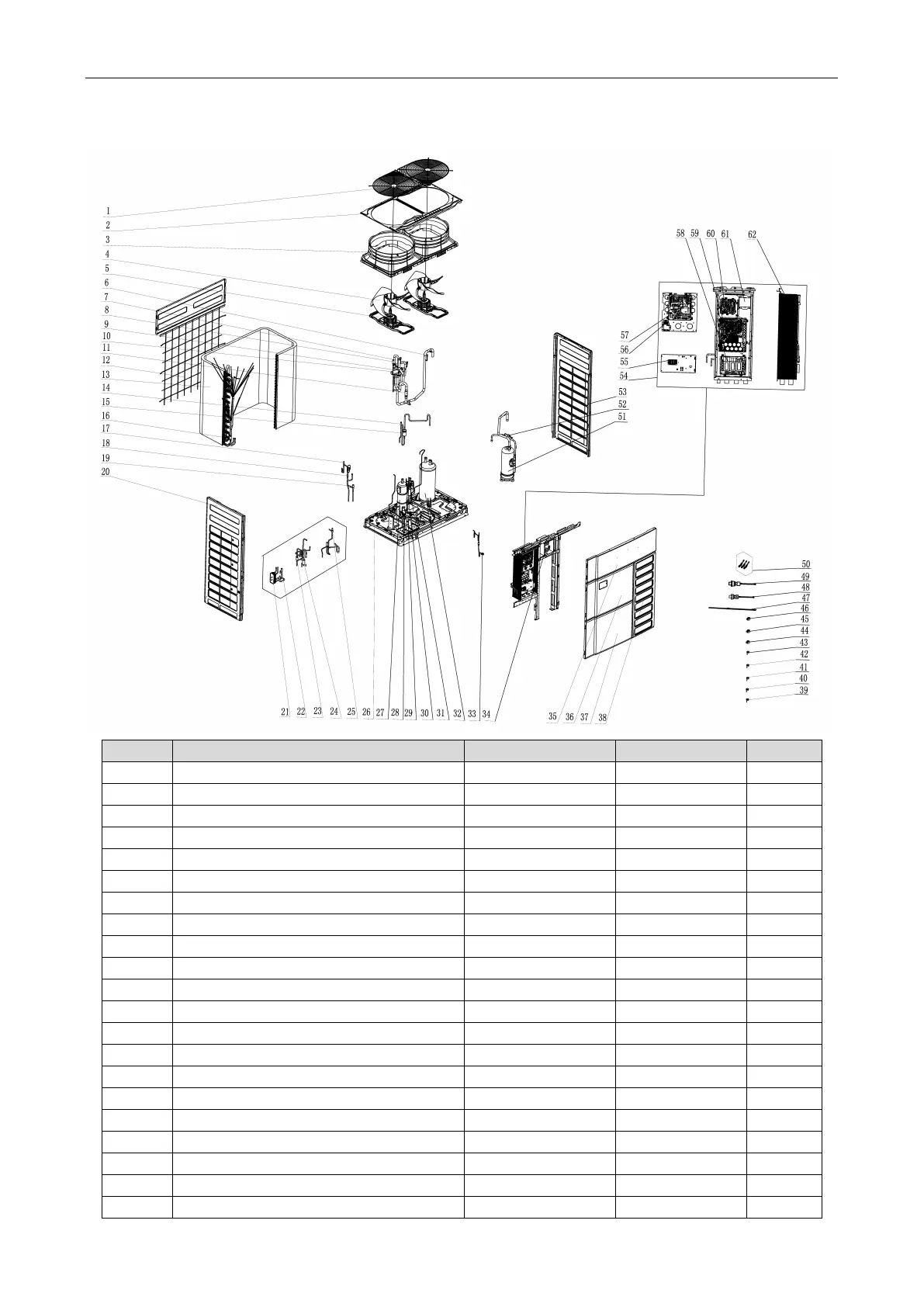

6.2 Explosive View and Parts List of GMV-400WM/G-U, GMV-
450WM/G-U and GMV-504WM/G-U
No.
Name
Material code
Vulnerable part *
Qty
1
Rear Grill
016001060013
*
1
2
Coping
012049000059P
1
3
Diversion Circle
200150000011
*
2
4
Axial Flow Fan
103002060011
*
2
5
Brushless DC Motor
1570412406
*
2
6
Nozzle for Adding Freon
06120012
*
2
7
Nozzle for Adding Freon
035114060003
*
1
8
Discharge Charge Valve
07334100002
*
2
9
One Way Valve
071001060007
*
1
10
4-Way Valve
43000339
*
1
11
Filter
07218603
*
1
12
Rear Grill
016001060012
*
1
13
Condenser Assy
01100206024901
*
1
14
Electronic Expansion Valve
43044100190
*
1
15
Silencer
07245008
*
1
16
Filter
0341010701
*
1
17
Electromagnetic Valve
43000072
*
1
18
Strainer
07415200002
*
2
19
Electronic Expansion Valve
072009060012
*
1
20
Left Side Plate Sub-Assy
017037060016P
1
21
Plate-type Heat Exchanger
010007060007
*
1
