UNIT INSTALLATION SPACE REQUIREMENTS
7.1Outline size and installation hole size
Unit : mm

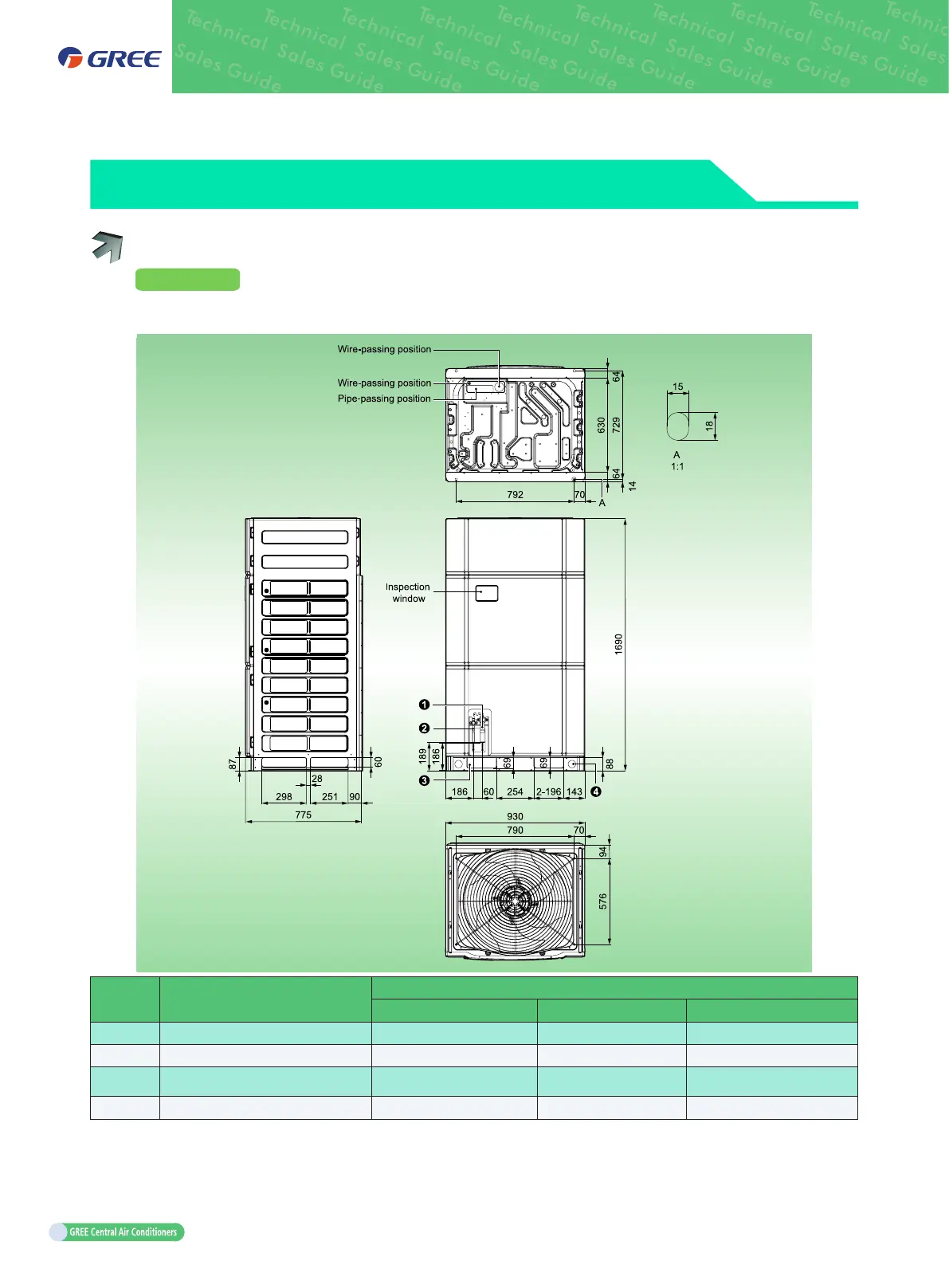

Outline size and installation hole size of GMV-224WM/H-X, GMV-280WM/H-X and GMV-335WM/H-X
No. Name
Pipe diameter
GMV-224WM/H-X GMV-280WM/H-X GMV-335WM/H-X
①
Gas pipe
Φ
19.05
Φ
22.2
Φ
25.4
②
Liquid pipe
Φ
9.52
Φ
9.52
Φ
12.7
③
Pipe and wiring passing hole
(L×W)
196×69 196×69 196×69
④
Hoist hole
Φ
50
Φ
50
Φ
50
