GMV6 DC Inverter VRF Units Technical Sales Guide

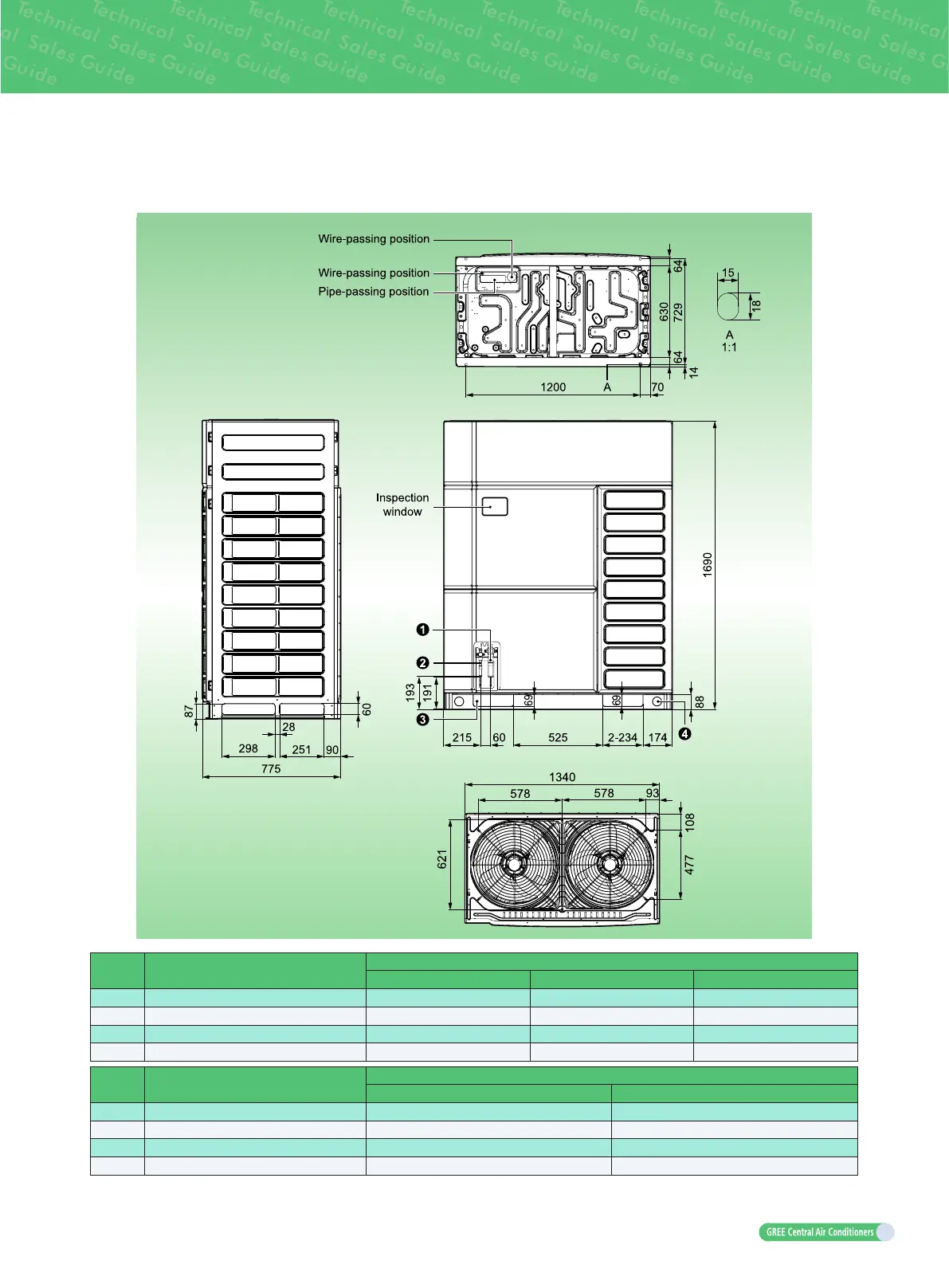

Outline size and installation hole size of GMV-400WM/H-X, GMV-450WM/H-X, GMV-504WM/H-X,
GMV-560WM/H-X, GMV-615WM/H-X
No. Name
Pipe diameter
GMV-400WM/H-X GMV-450WM/H-X GMV-504WM/H-X
①
Gas pipe
Φ
25.4
Φ
28.6
Φ
28.6
②
Liquid pipe
Φ
12.7
Φ
12.7
Φ
15.9
③
Pipe and wiring passing hole (L×W) 234×69 234×69 234×69
④
Hoist hole
Φ
50
Φ
50
Φ
50
No. Name
Pipe diameter
GMV-560WM/H-X GMV-615WM/H-X
①
Gas pipe
Φ
28.6
Φ
28.6
②
Liquid pipe
Φ
15.9
Φ
15.9
③
Pipe and wiring passing hole (L×W) 234×69 234×69
④
Hoist hole
Φ
50
Φ
50
