78
Maintenance
Service Manual

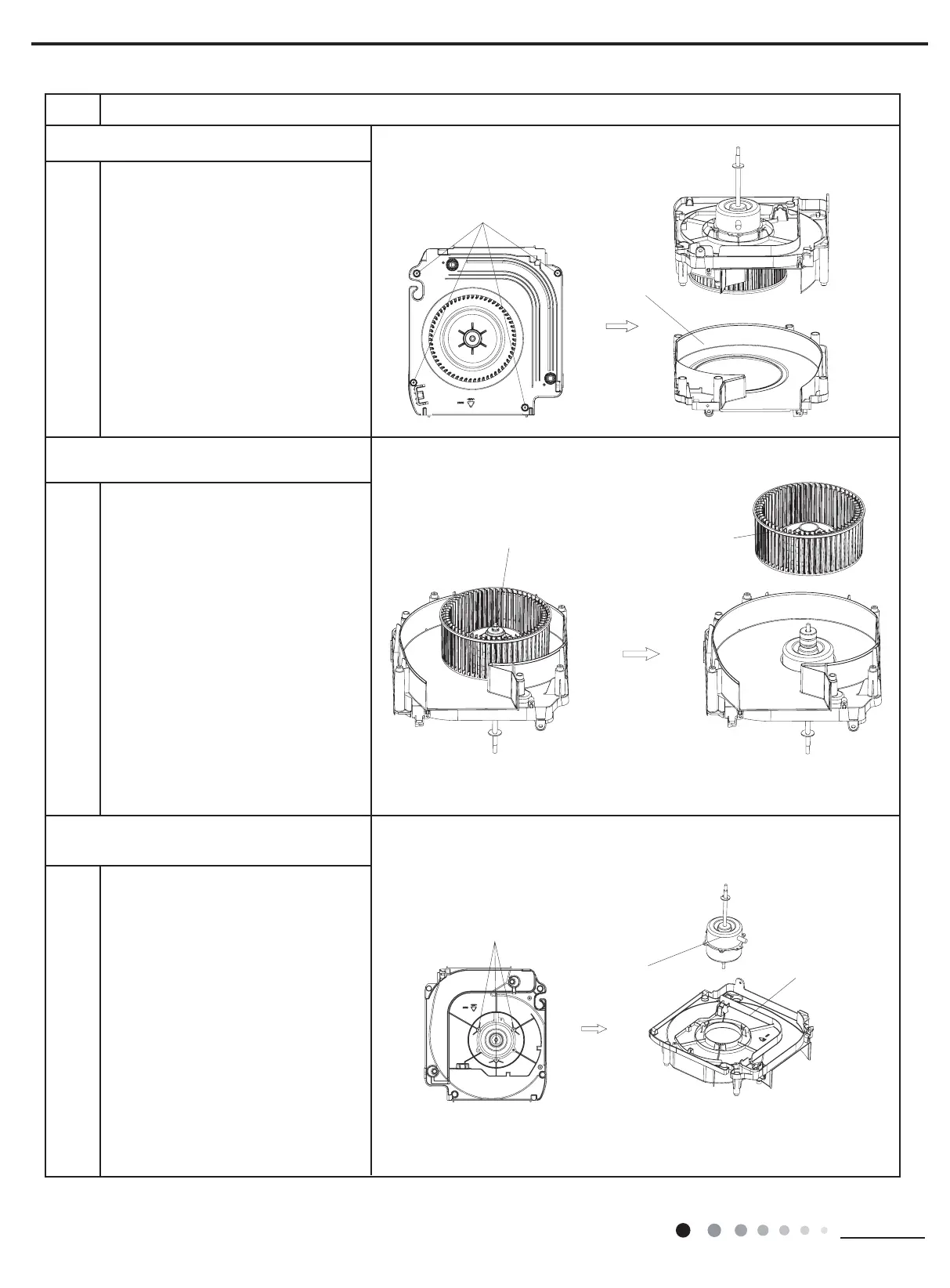

18.Remove diversion ring
19.Remove centrifugal louver (lower)
20.Remove motor
Unscrew 4 screws fixing diversion ring to
remove diversion ring.
Unscrew nuts of centrifugal louver
anticlockwise, take out gasket to remove
the centrifugal louver (lower).
Unscrew 3 screws fixing motor to remove
the motor.
Step Procedure
screws
diversion ring
centrifugal louver (lower)
nut
screws
motor
motor tray
To Next Page
