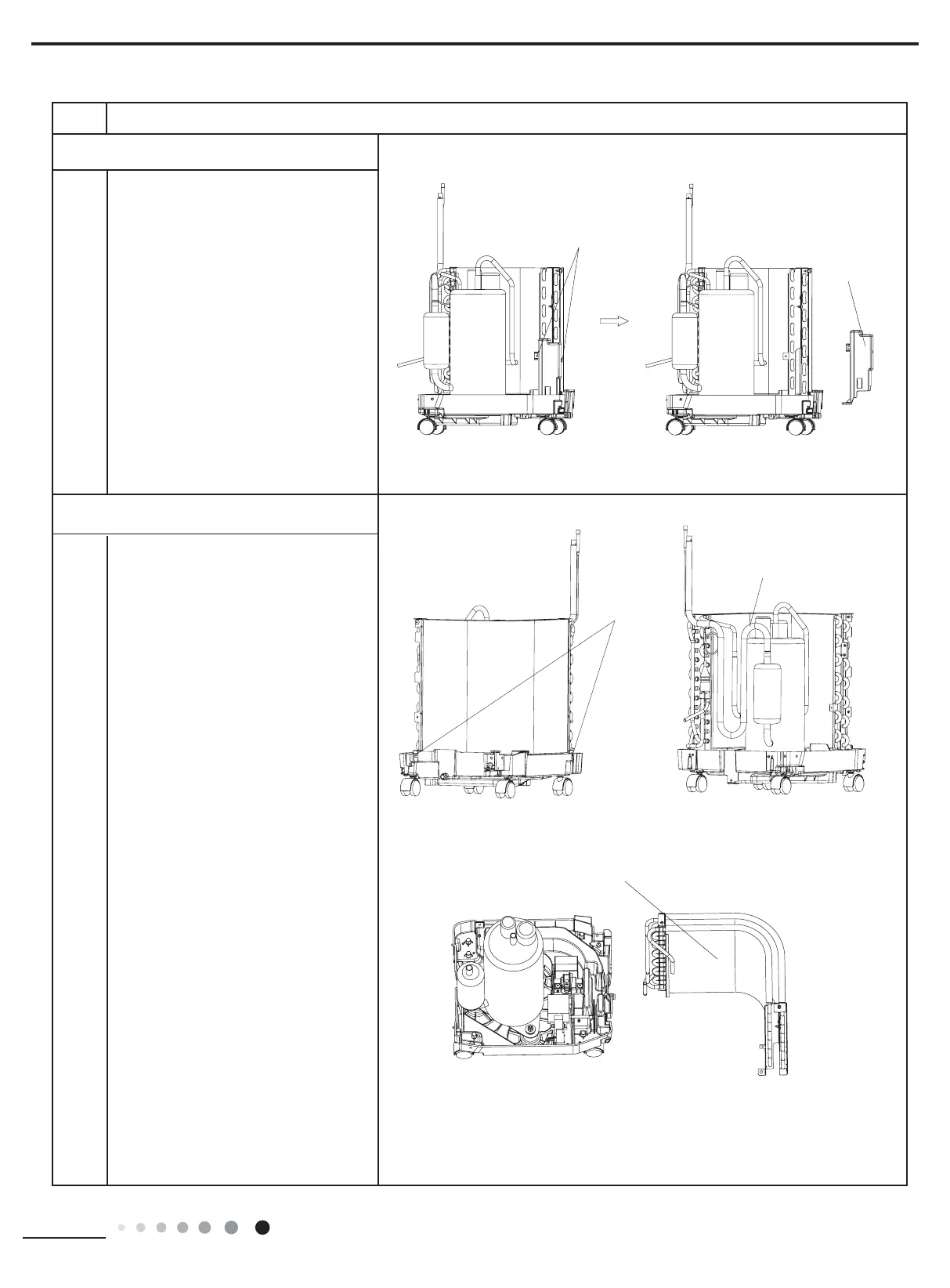

21.Remove water retaining tray
Unscrew 2 screws fixing water retaining
tray to remove water retaining tray.
22.Remove condenser assembly
Unscrew 2 screws, then unsolder the
spot weld to remove condenser assembly.
(Note: The refrigerant must be discharged
before unsoldering.)
Step Procedure
screws
water
retaining tray
screws
condenser assembly
spot weld
To Next Page
