Maintenance
Service Manual

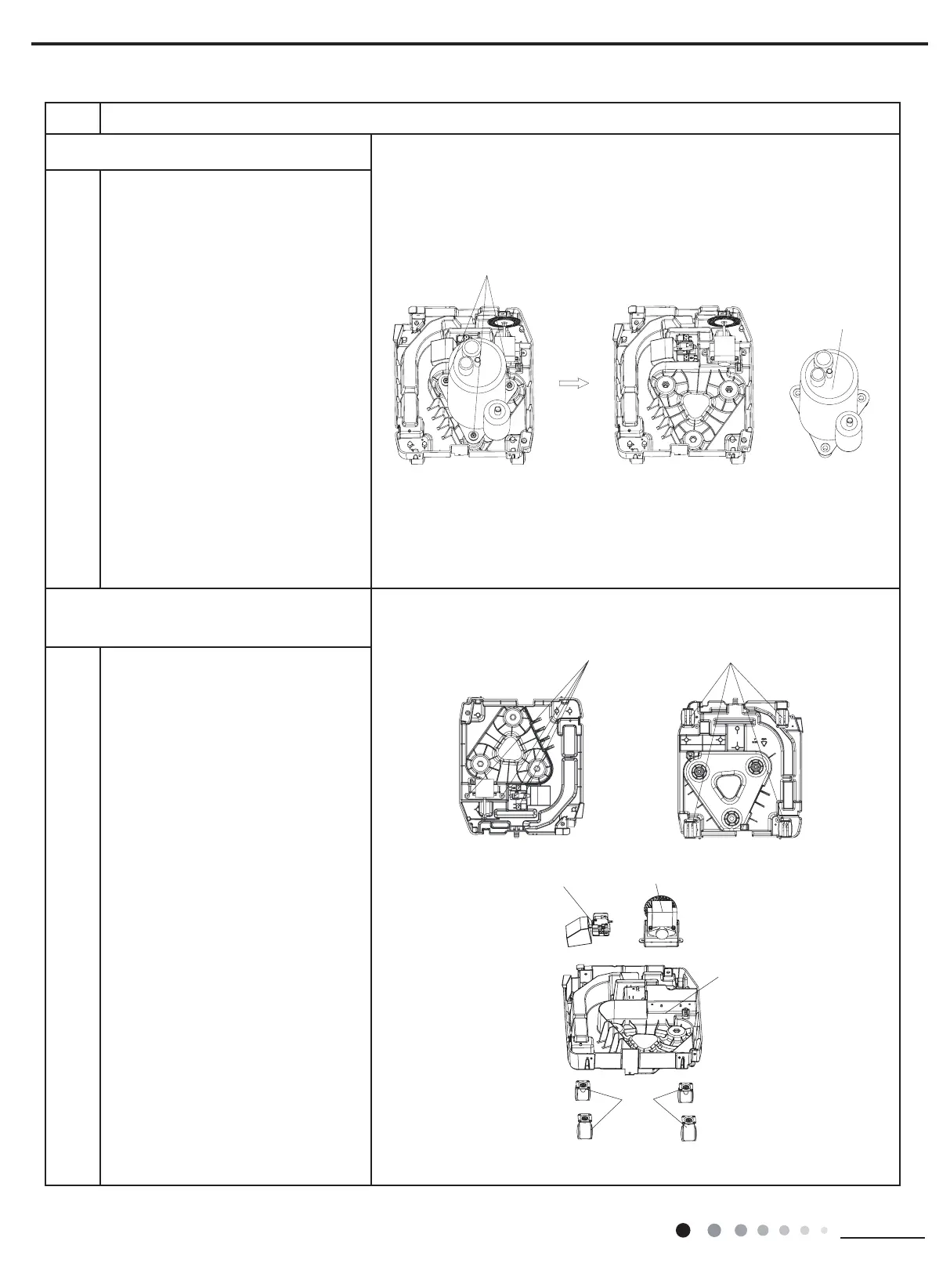

23.Remove compressor assembly
Unscrew 3 bolts of compressor chassis,
then take out gasket to remove
compressor.
24.Remove motor sub-assy, water level
switch sub-assy and caster wheel
(1) Unscrew 2 screws of bottom of
sub-assy to remove motor sub-assy.
(2) Unscrew 2 screws fixing water level
switch to remove water level switch
sub-assy.
(3) Unscrew 8 screws fixing caster wheel
to remove the 4 caster wheels.
Step Procedure
bolts
compressor and
spareparts
screws
screws
motor sub-assy
water lvel switch sub-assy
chassis
caster
wheels
To Next Page
