Gree GUD35PS/A-T Service Manual

GREE U-Match 5 SERIES UNIT SERVICE MANUAL
132

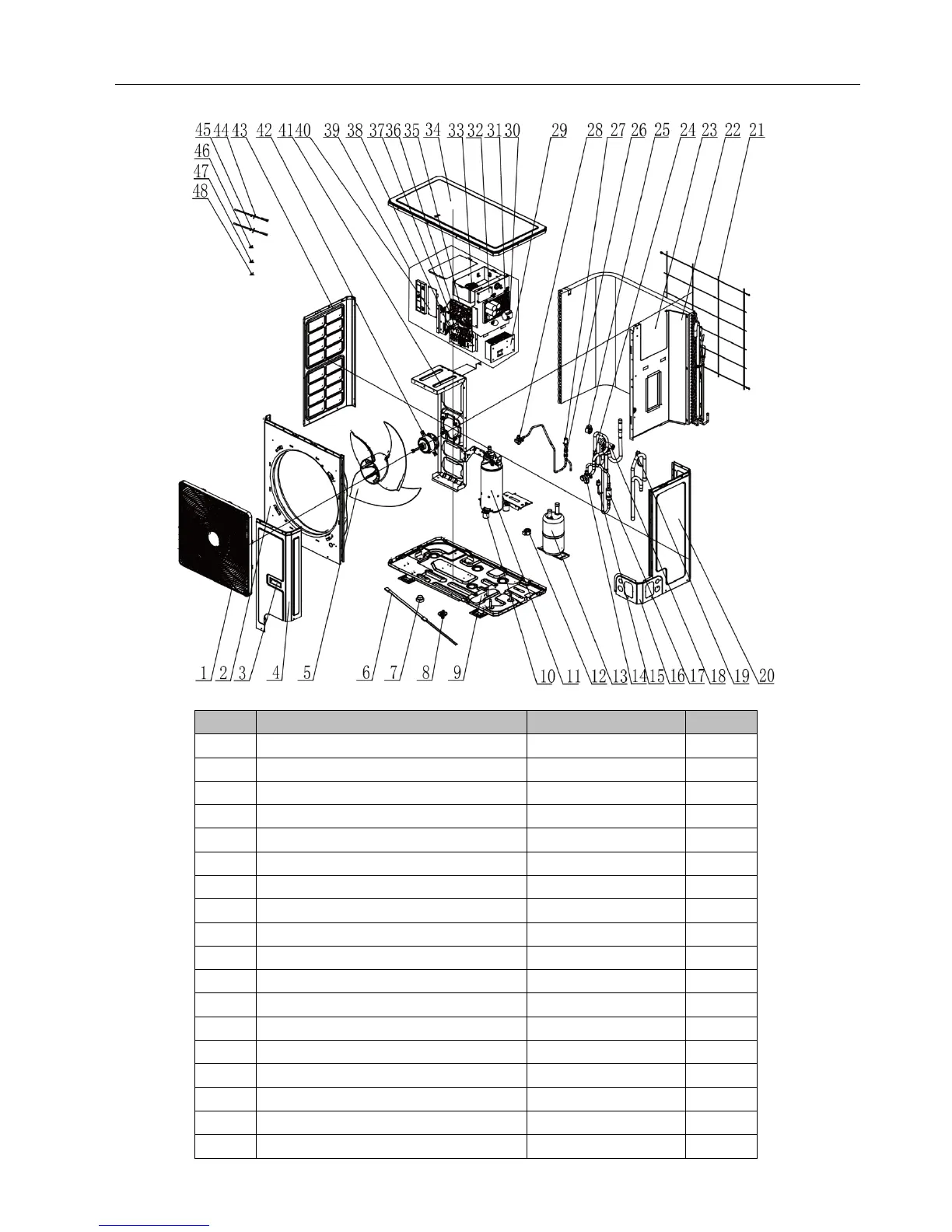

GUD100W/NhA-T(Product Code：CF090W1240)
No.
Material name
Finished Product Code
Quantity
1
Front Grill
01572800003
1
2
Cabinet
012022000003
1
3
Handle
26904100016
2
4
Front Side Plate
012050000007
1
5
Axial Flow Fan
1043410000801
1
6
Electric Heater（Compressor）
7651873215
1
7
Drainage hole Cap
76715005
3
8
Drainage Joint
26113009
1
9
Base Plate Sub-assay
017000060073
1
10
Filter Board
300020000004
1
10
Compressor and Fittings
009001000231
1
11
Compressor Gasket
009012000004
1
12
Electric Expand Valve Fitting
43000344
1
13
Gas-liquid Separator
07423902
1
14
Cut off Valve
07334100016
1
15
Pressure Protect Switch
4602000603
1
16
Connection Board
01344100070
1
17
Silencer
07245012
1

Gree GUD35PS/A-T Specifications

General

Cooling Capacity	3.5 kW
Power Supply	220-240V, 50Hz
Indoor Unit Dimensions (W x H x D)	845 x 289 x 209 mm
Outdoor Unit Dimensions (W x H x D)	720 x 495 x 270 mm
Type	Split System
Cooling Capacity (BTU)	12000 BTU
Energy Efficiency Ratio (Cooling)	3.21
