Service Manual
75
Installation and Maintenance
ProcedureStep

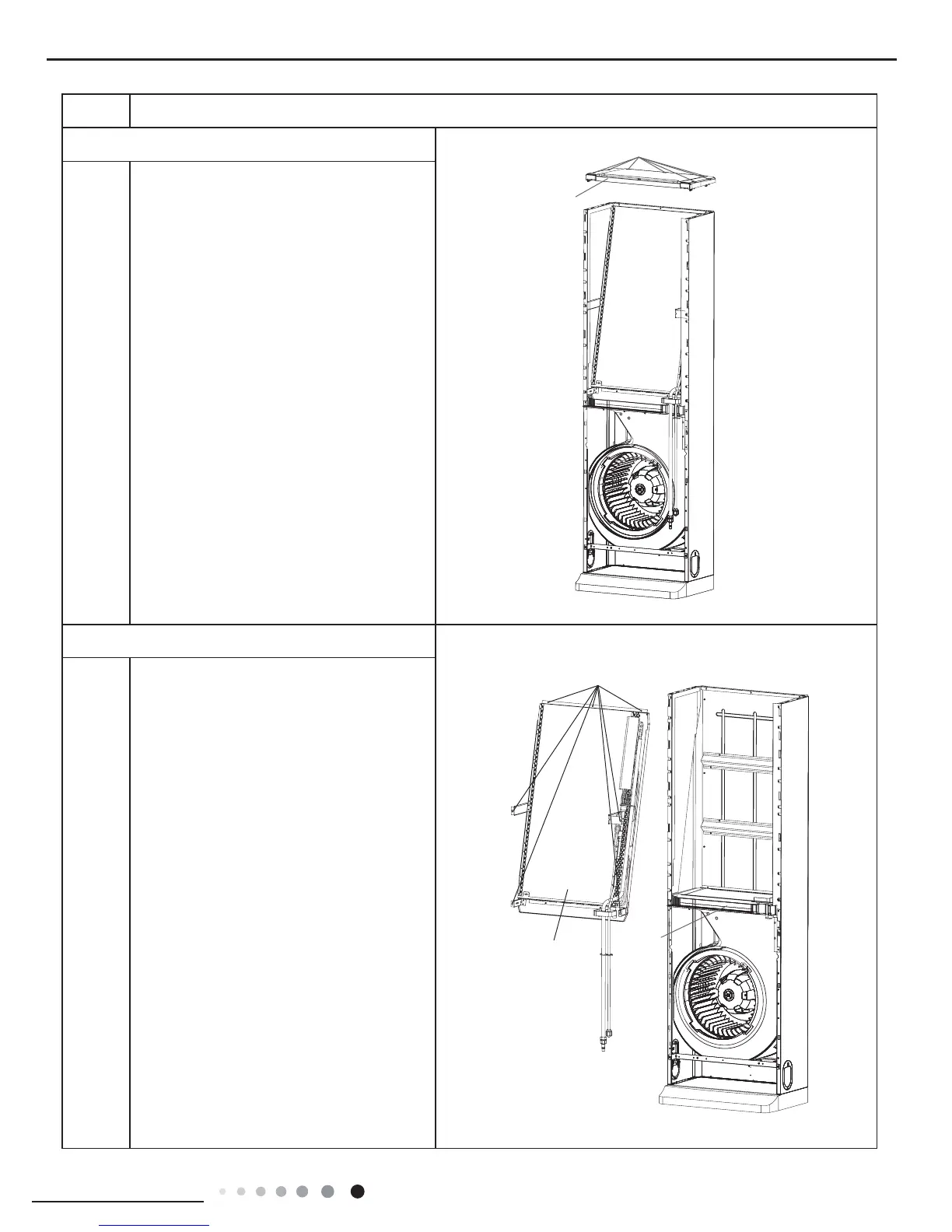

13.Remove evaporator
Top cover
12.Remove top cover
Screw
Remove 7 screws on the top cover,
and then pull the top cover upwards to
remove it.
Remove 3 screws on the evaporator, 2 screw
at the middle part and 2 screws at the lower
part. Pull left and right side plates outwards
slightly and then take out the evaporator, bafe
board and water tray. When the evaporator
is removed, the left and the right air damper
and the bafe board of the evaporator can be
removed.
Screw
Evaporator
Water
tray
To Next Page
