Service Manual
76
Installation and Maintenance
Procedure
Step
15.Remove chassis
Propeller housing
Guide loop
Wire-pressing plate
Centrifugal blade
Press plate of propeller housing
Motor

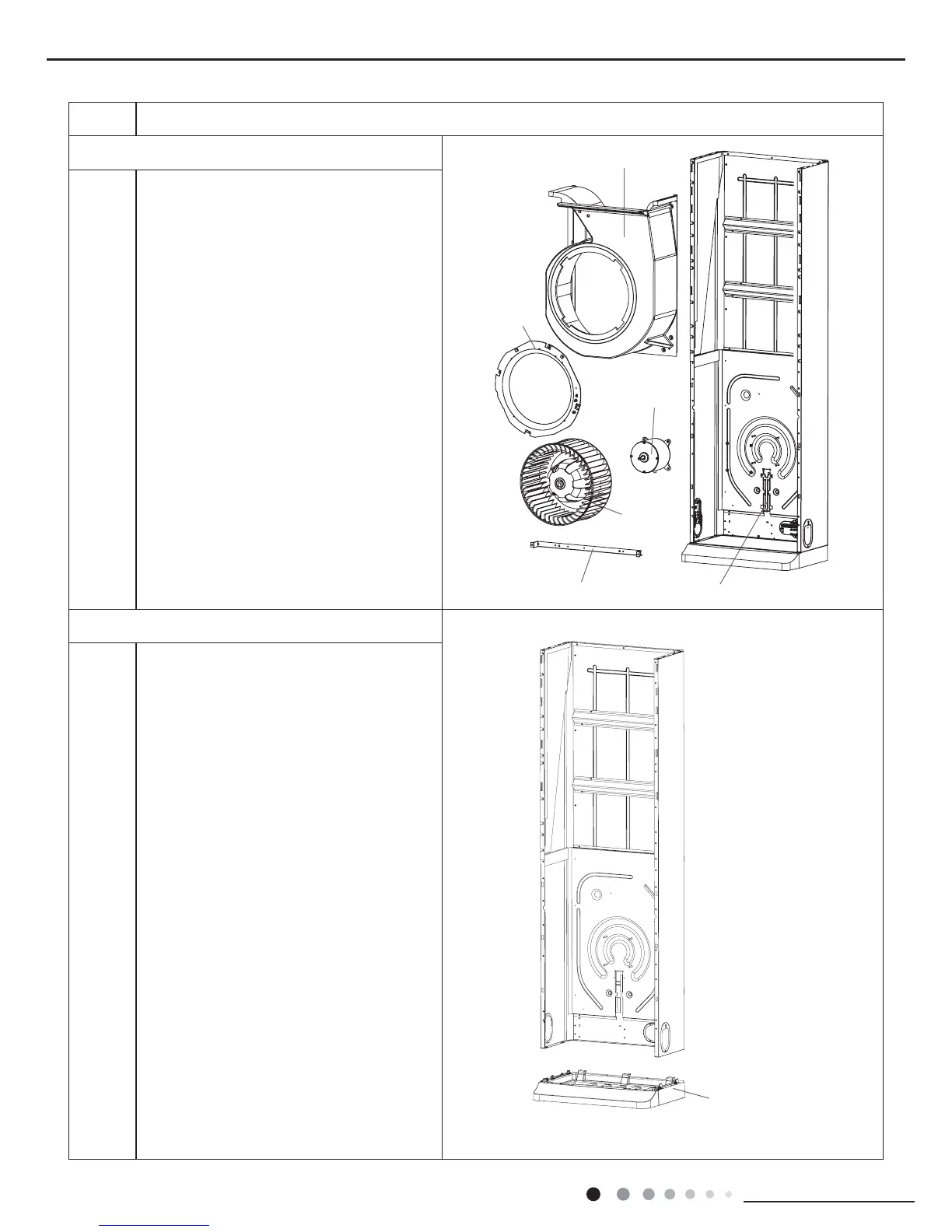

14.Remove propeller housing, centrifugal blade and
motor
Remove 3 screws used for xing the press
plate of propeller housing and then remove
the press plate of propeller housing;
Rotate the guide loop to a certain position
along the clockwise direction, and then
remove the guide loop;
Remove 9 screws used for xing the
propeller housing, and then remove the
propeller housing;
Use wrench to twist off the nuts used for
xing the centrifugal chiller and then pull the
centrifugal blade outwards;
Remove the centrifugal blade;
Remove 4 nuts used for xing the motor and
2 screws used for xing the wire-pressing
plate, and the remove the motor.
After 9 screws are removed, pull the chassis
downwards to remove it.
Chassis
a
b
c
d
e
f
To Next Page
