Gree GWC User Manual

29
Technical Information
Service Manual

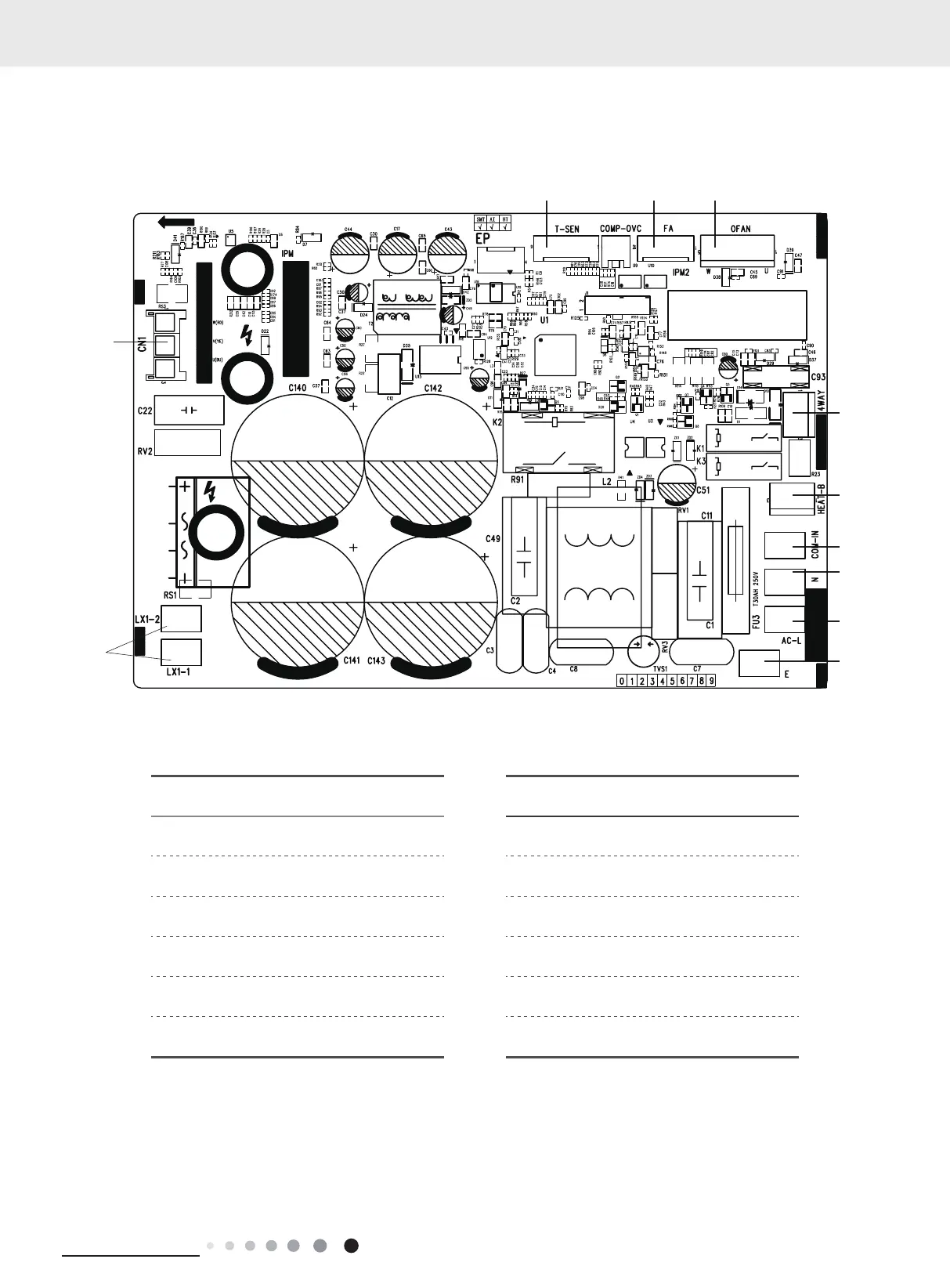

Outdoor Unit
4LIV09HP115V1AO 4LIV12HP115V1AO
2 3 4
1
11
9
8
7
6
5
10
No. Name No. Name
1 Three-phase terminal of compressor 7 Terminal of communication wire
2 Temperature sensor 8 Neutral wire
3 Electronic expansion valve 9 Live wire
4 Outdoor fan 10 Earthing wire
5 4-way valve 11 Needle stand of Connect reactor
6 Electric heating of chasssis

Gree GWC Specifications

General

Power Supply	220-240V, 50Hz
Type	Split
Refrigerant	R410A
Features	Auto Restart, Sleep Mode, Turbo Mode
EER (Energy Efficiency Ratio)	3.5
Noise Level	50 dB (Outdoor)
Cooling Capacity	12000 BTU/h
Heating Capacity	12000 BTU/h
Weight	Indoor: 9 kg, Outdoor: 30 kg
