Gree GWC User Manual

32
Technical Information
Service Manual
1
2
3
4
5678 910111213
14

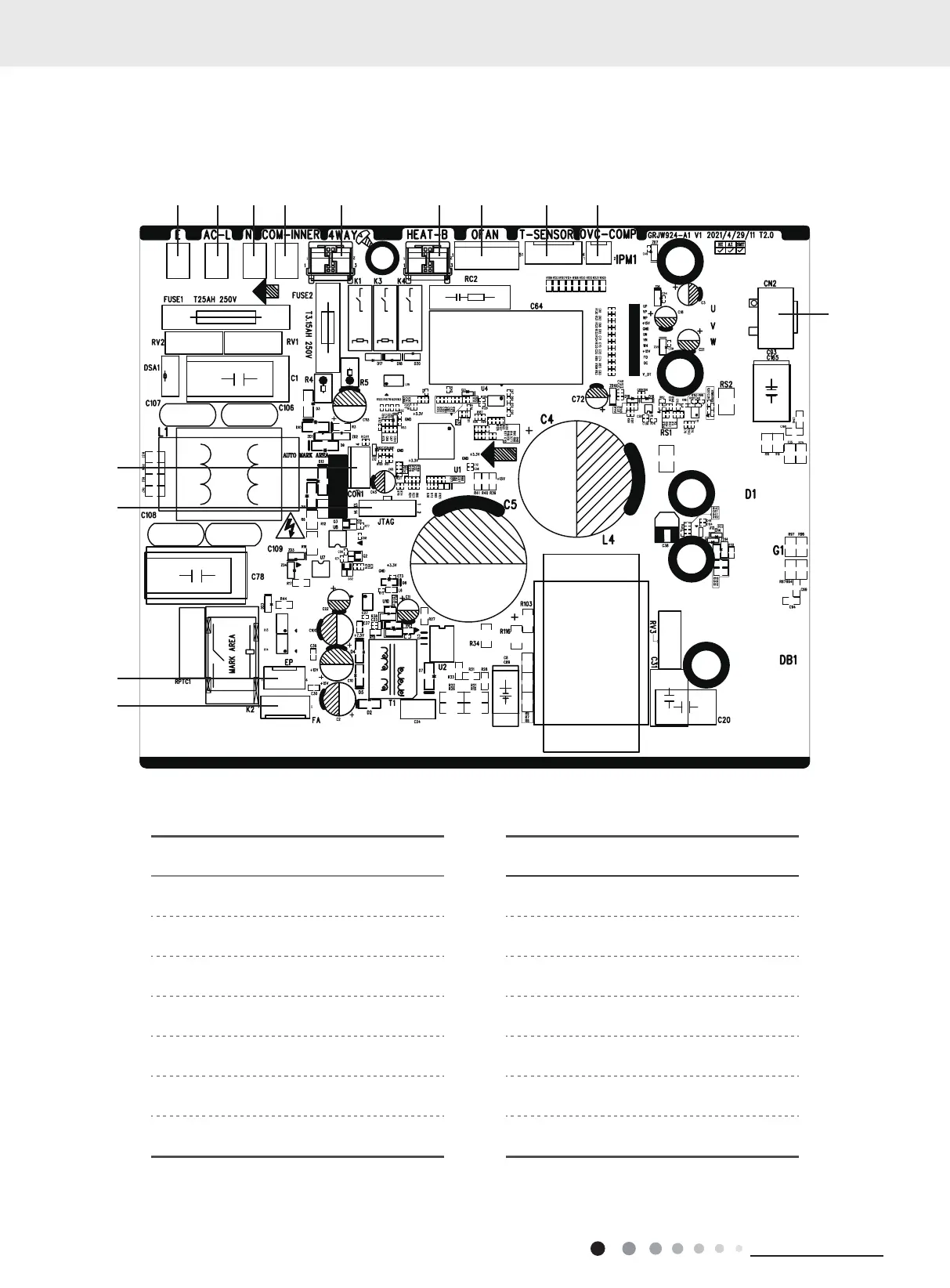

No. Name No. Name
1 Electronic expansion valve 8 Communication wire
2 E disk 9 4-way valve
3 Program debug interface 10 Electric heating of chasssis
4 Interface monitoring 11 AC fan
5 Earthing wire 12 Temperature sensor
6 Live wire 13 Overload of compressor
7 Neutral wire 14 Compressor terminal
24K

Gree GWC Specifications

General

Power Supply	220-240V, 50Hz
Type	Split
Refrigerant	R410A
Features	Auto Restart, Sleep Mode, Turbo Mode
EER (Energy Efficiency Ratio)	3.5
Noise Level	50 dB (Outdoor)
Cooling Capacity	12000 BTU/h
Heating Capacity	12000 BTU/h
Weight	Indoor: 9 kg, Outdoor: 30 kg
