Gree GWC

31
Technical Information
Service Manual
18K

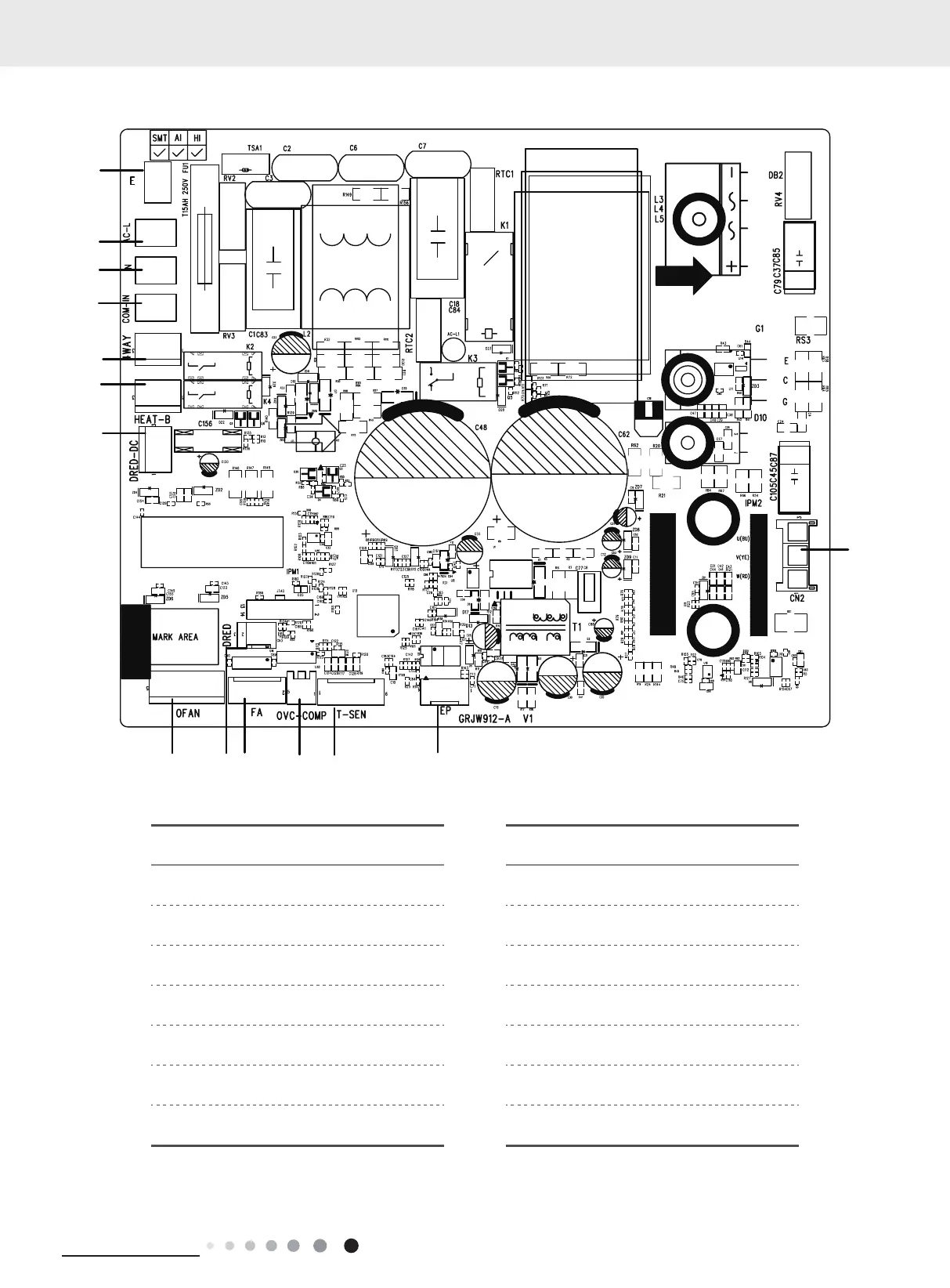

No. Name No. Name
1 Earthing wire 8 Outdoor fan
2 Live wire 9 DRED(Reserved)
3 Neutral wire 10 Electronic expansion valve
4 Communication wire 11 Compressor Overload
5 4-way valve 12 Temperature sensor
6 Electric heating of chasssis 13 EE Flash drives
7 DRED-DC(Reserved) 14 Compressor
8910 11 12 13
1
2
3
4
5
6
7
14
GWC12ATCXB-D3DNA1C/O GWH12ATCXB-D3DNA1C/O GWC09ATCXB-D3DNA1A/O GWH09ATCXB-D3DNA1A/O
