27
Technical Information
Service Manual
09K

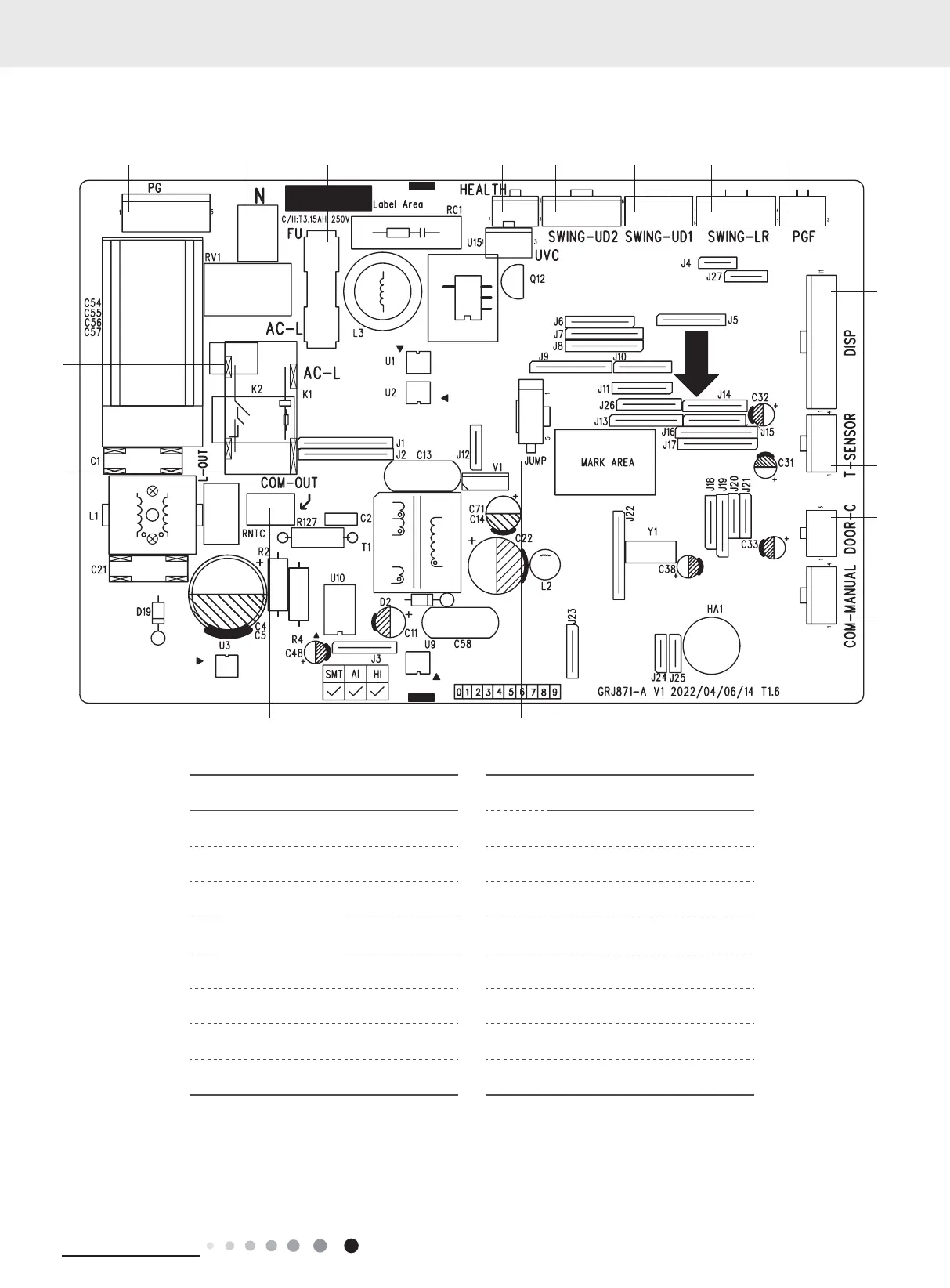

No. Name No. Name
1 Interface of fan 9 Display board
2 Interface of neutral wire 10
Needle stand for temperature
sensor
3 Fuse 11
Interface of gate-control (only for
the model with thisfunction)
4
Interface of health function(only
for the mode with this function)
12
Wired controller (only for the
mode with this function)
5 Up&down 2 swing interface 13 Jump
6 Up&down 1 swing interface 14 Communication interface
7
Left&right swing interface(only
for the mode with this function)
15
Terminal of live wire used for
supplying power for outdoor unit
8 Interface of PG feedback 16 Live wire terminal
1234578
9
10
11
12
1314
16
15
6
