Installation and Maintenance
Step Procedure

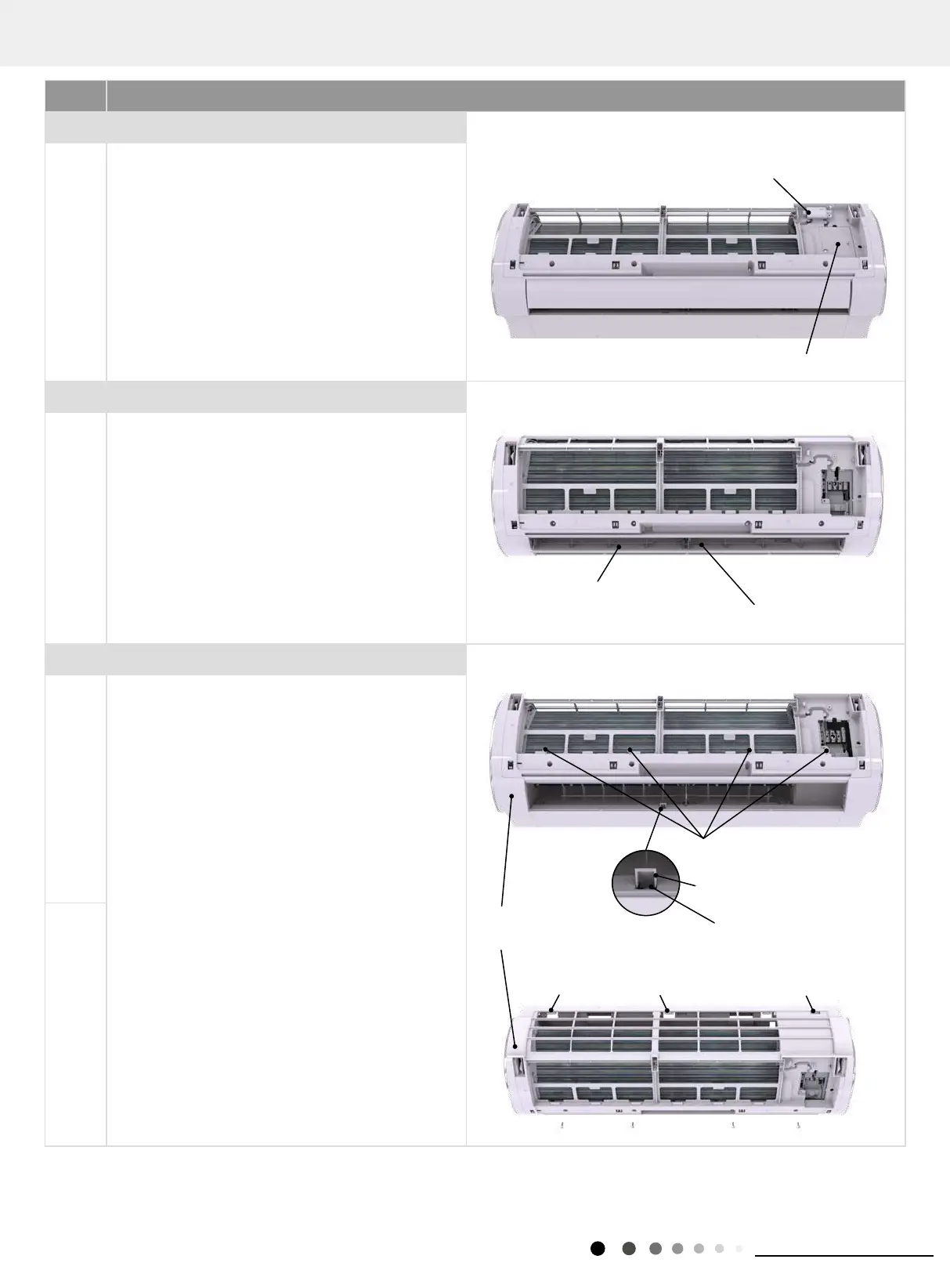

3.Remove electric box cover sub-assy2 and detecting plate(wi)
Remove the screws on the electric box cover sub-assy2
and detecting plate(WIFI), to remove the electric box
cover 2 and detecting plate(WIFI).
4.Remove horizontal louver
Push out the axile bush on horizontal louver. Bend
the horizontal louver with hand and then separate the
horizontal louver from the crankshaft of step motor to
remove it.
5.Remove front case sub-assy
a Remove the screws xing front case.
Note:
(1) Open the screw caps before removing the screws
around the air outlet.
(2) The quantity of screws xing the front case sub-assy
is different for different models.
Loosen the clasps at left, middle and right sides of front
case. Life the front case sub-assy upwards to remove it.
b
Detecting plate(WiFi)
Electric box cover sub-assy2
Horizontal louver
Screws
Screw
Screw caps
Front case
sub-assy
Left clasp Middle clasp Right clasp
Axile bush
To Next Page
