Technical Information

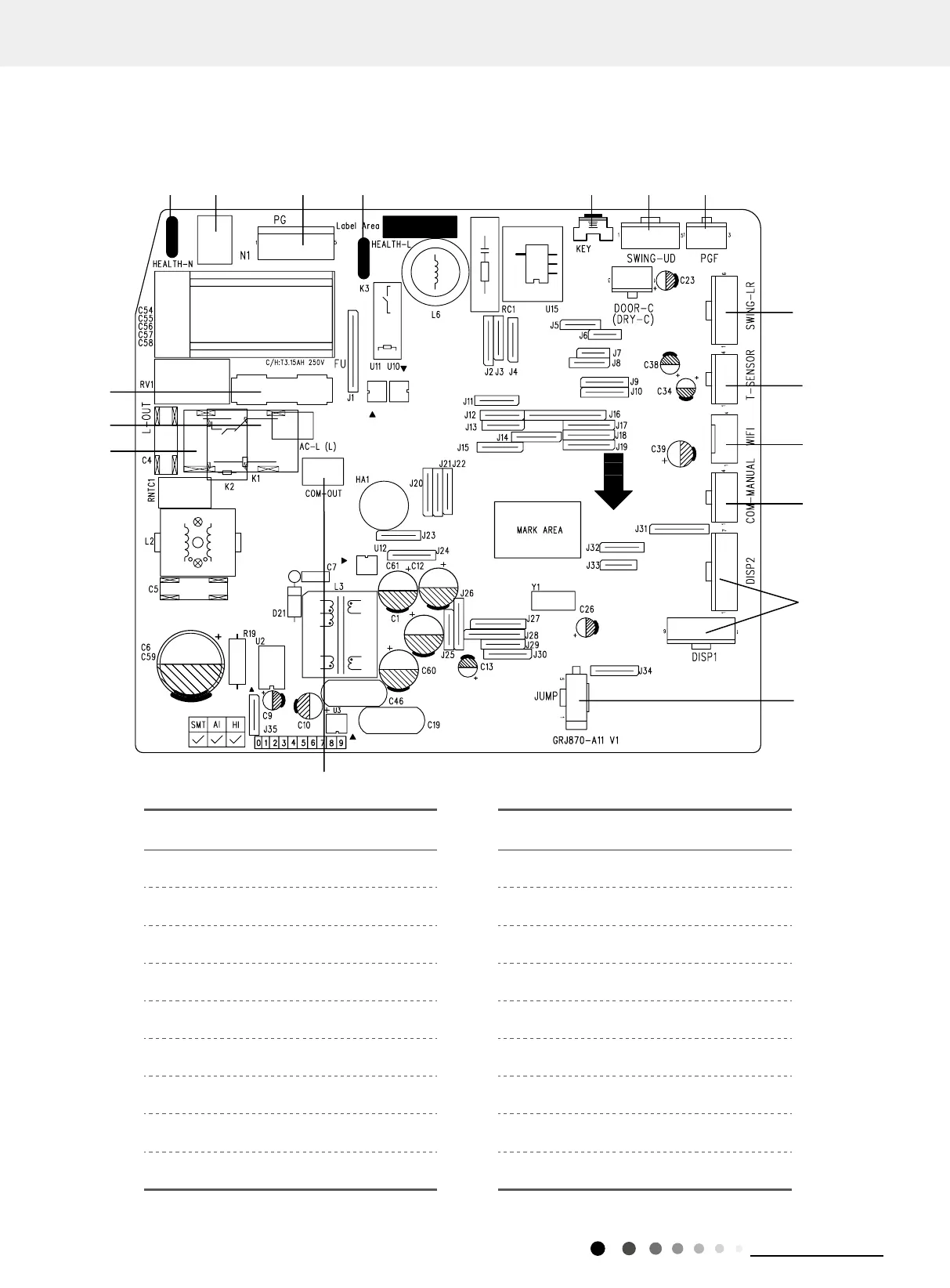

5.2 PCB Printed Diagram
Indoor Unit
9/12K
No. Name No. Name
1 Terminal of health function neutral wire 10 WIFI terminal
2 Neutral wire terminal 11 Wired controller terminal
3 Motor terminal 12 Terminal of display board
4 Terminal of health function live wire 13 Jumper cap
5 Auto button 14
Communication terminal for indoor unit
and outdoor unit
6 Up & down swing terminal 15 Live wire terminal
7 Terminal of Motor feedback 16 Fuse
8 Left & right swing terminal 17
Terminal of live wire used for supplying
power for outdoor unit
9 Terminal of temperature sensor
9
10
11
8
12
13
14
15
17
16
12 34
5 6 7
