22
Technical Information

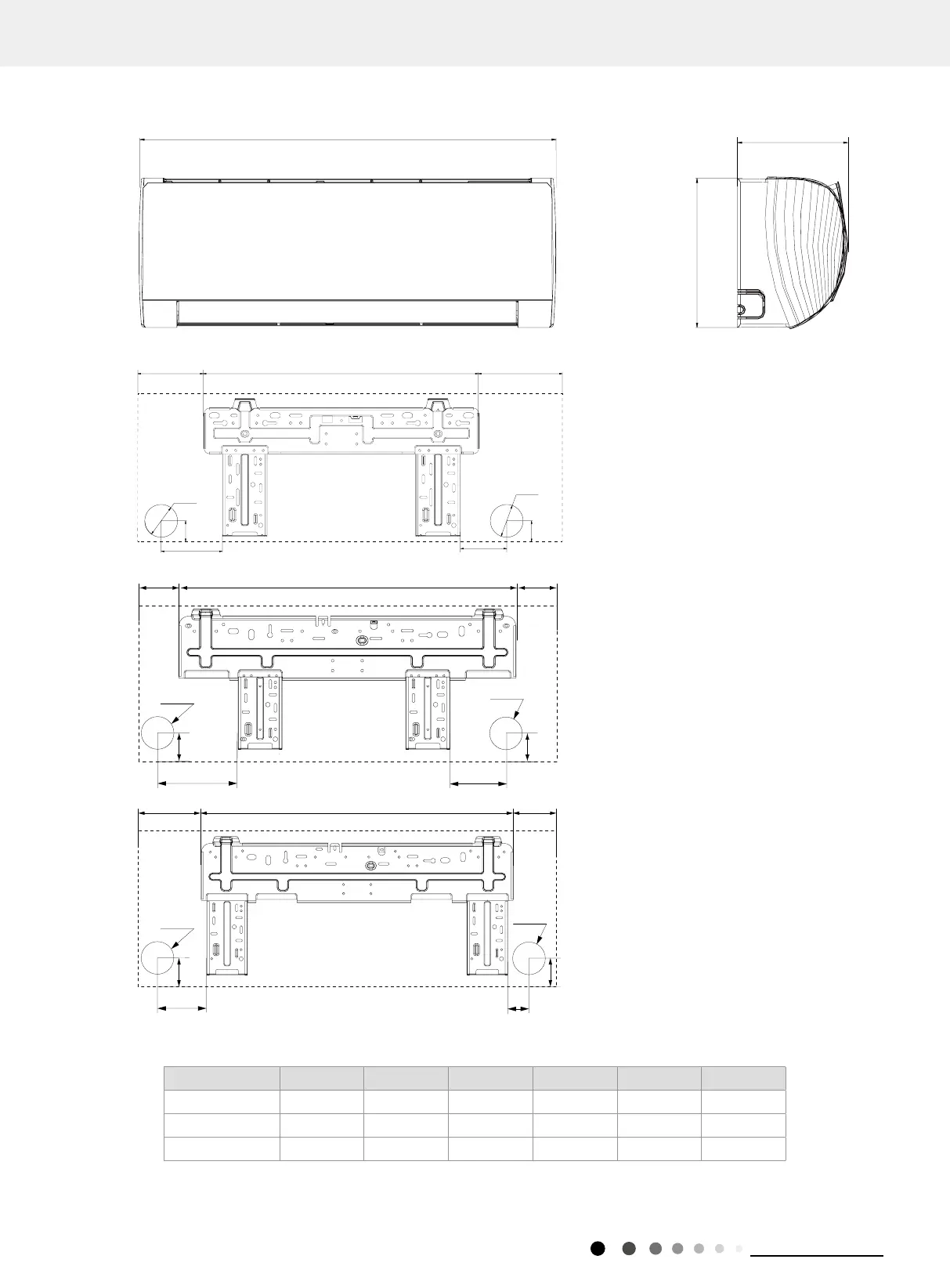

3. Outline Dimension Diagram
3.1 Indoor Unit
Model W H D W1 W2 W3
ACC 889 294 212 146 542 201
ACD 1013 307 221 125.5 685 202.5
ACE 1122 329 247 207 685 230
* Recommended distance
ACC
ACD
ACE
D
H
W
W1 W2 W3
140*
190*
38
Φ55
Φ55
38
83 *
43
Φ55
W3W2
W1
Φ55
43
130
*
79*
154*
43
W1 W2 W3
Φ70
Φ70
43
