Gree GWH12ACC-K6DNA1F/I - Installation; Installation Dimension Diagram

50
Installation and Maintenance
8. Installation

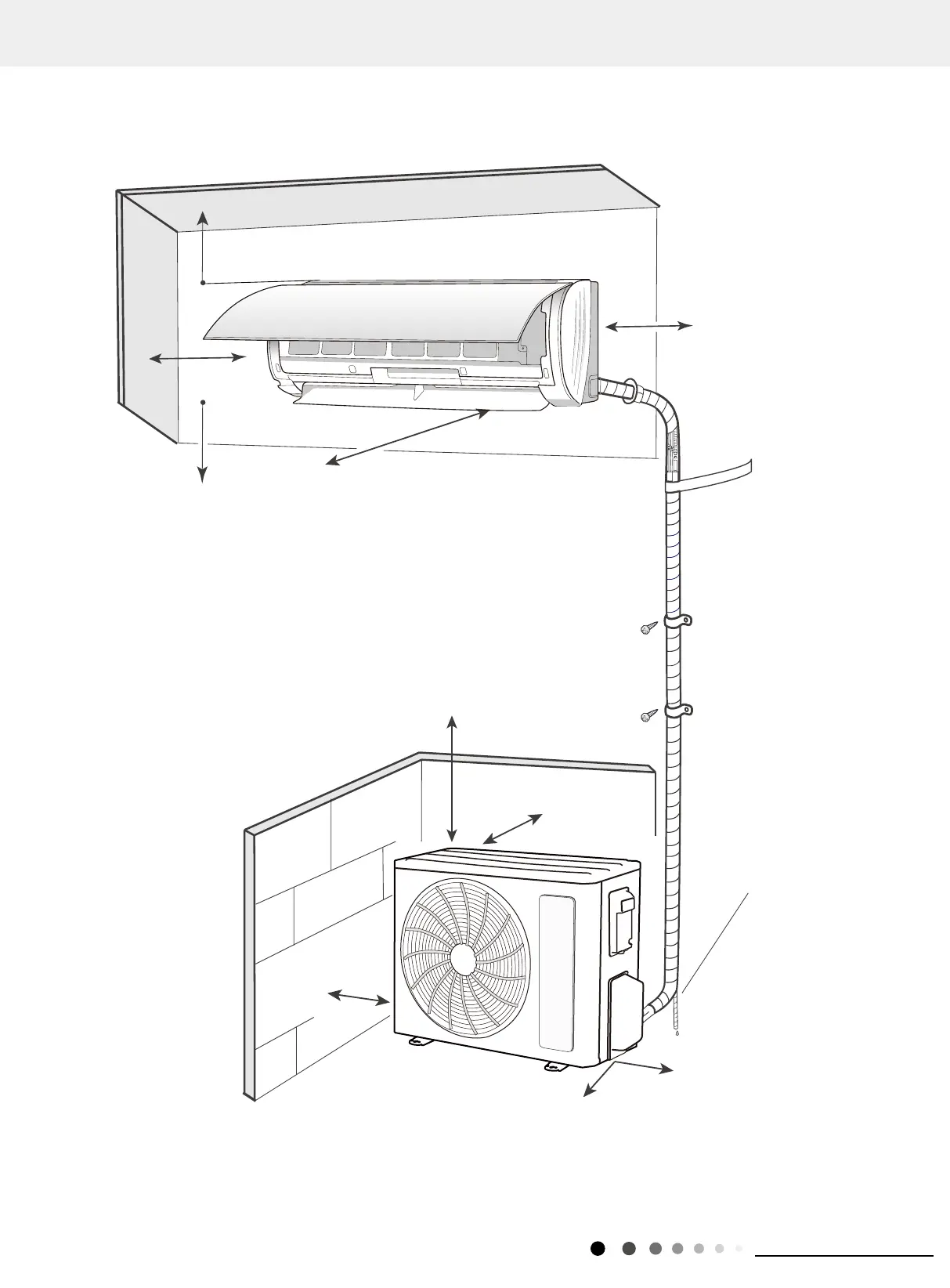

8.1 Installation Dimension Diagram
Drainage pipe
Space to the obstruction
At least 50cm
Space to the obstruction
At least 30cm
Space to the obstructio
n
At least 50cm
Space to the obstruction
At least 200cm
At least 30cm
Space to the wall
At least 15cm
Space to the ceiling
At least 15cm
At least 250cm
Space to the wall
At least 300cm
Space to the obstruction
Space to the floor
At least 15cm
Space to the wall
