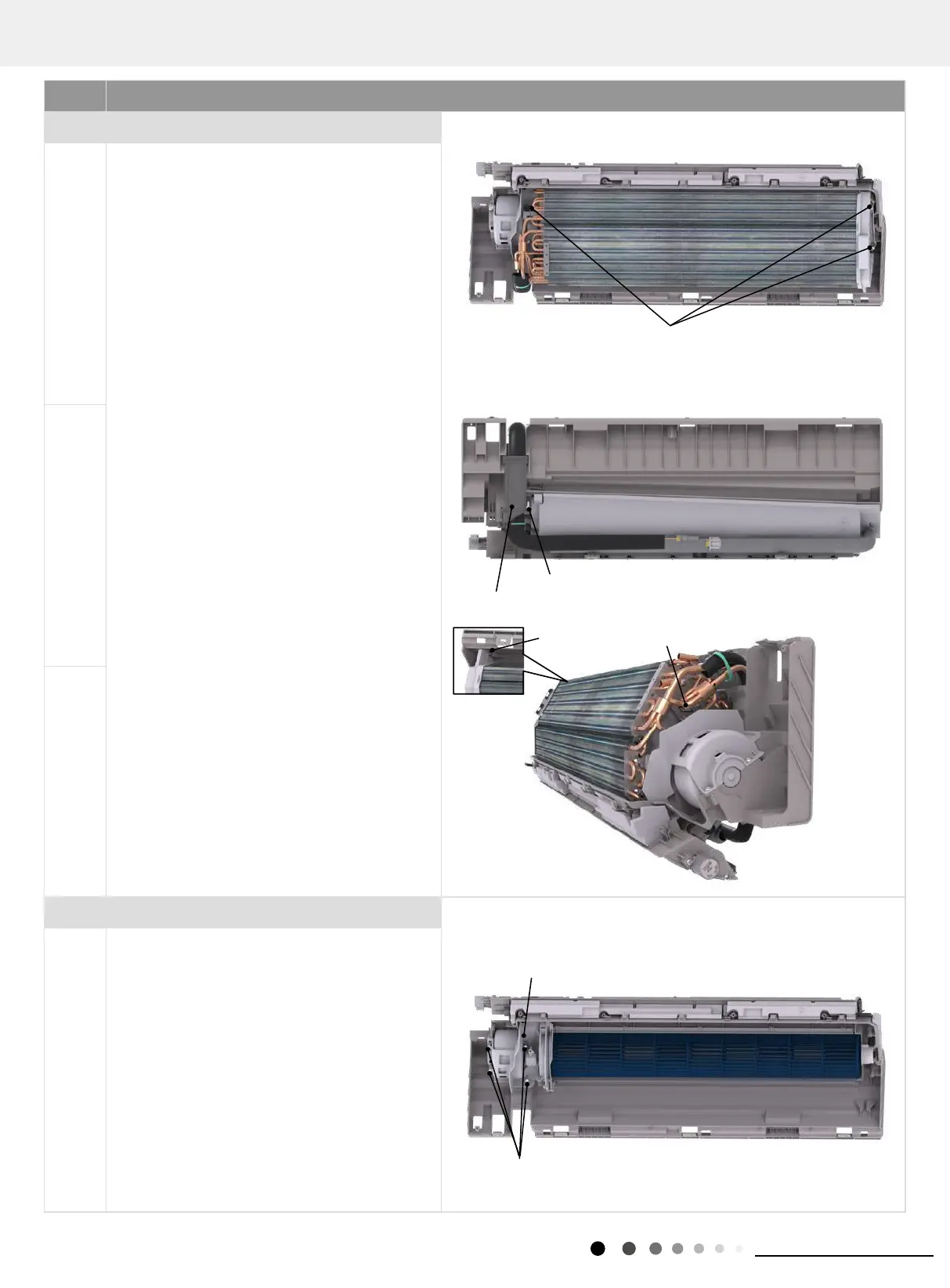

8.Remove evaporator assy
a Remove 3 screws xing evaporator assy.
At the back of the unit, remove the screw of the
connection pipe clamp and then remove the
connection pipe clamp.
First remove the left side of evaporator from the
groove of bottom shell and then remove the right
side from the clasp on the bottom shell.
Adjust the position of connection pipe on evaporator
slightly and then lift the evaporator upwards to
remove it.
b
c
9.Remove motor and cross ow blade
a
Remove the screws fixing motor clamp and then
remove the motor clamp.
Screw
Screws
Clasp
Groove
Motor clasp
Connection pipe clamp
Screws
