GREE Air-ccoled Closed Control Unit Service Manual
130
40
Centrifugal fan
SYB-355II(1.8-6)
15403716 1
41 Base 01283799 1
42 Electric cabinet 01393751P 1
43 Pressure difference switch1 01325236 1
（6）Indoor Unit JKFD40C2/Na-M(I)、JKFD40QS2/Na-M(I)
◆

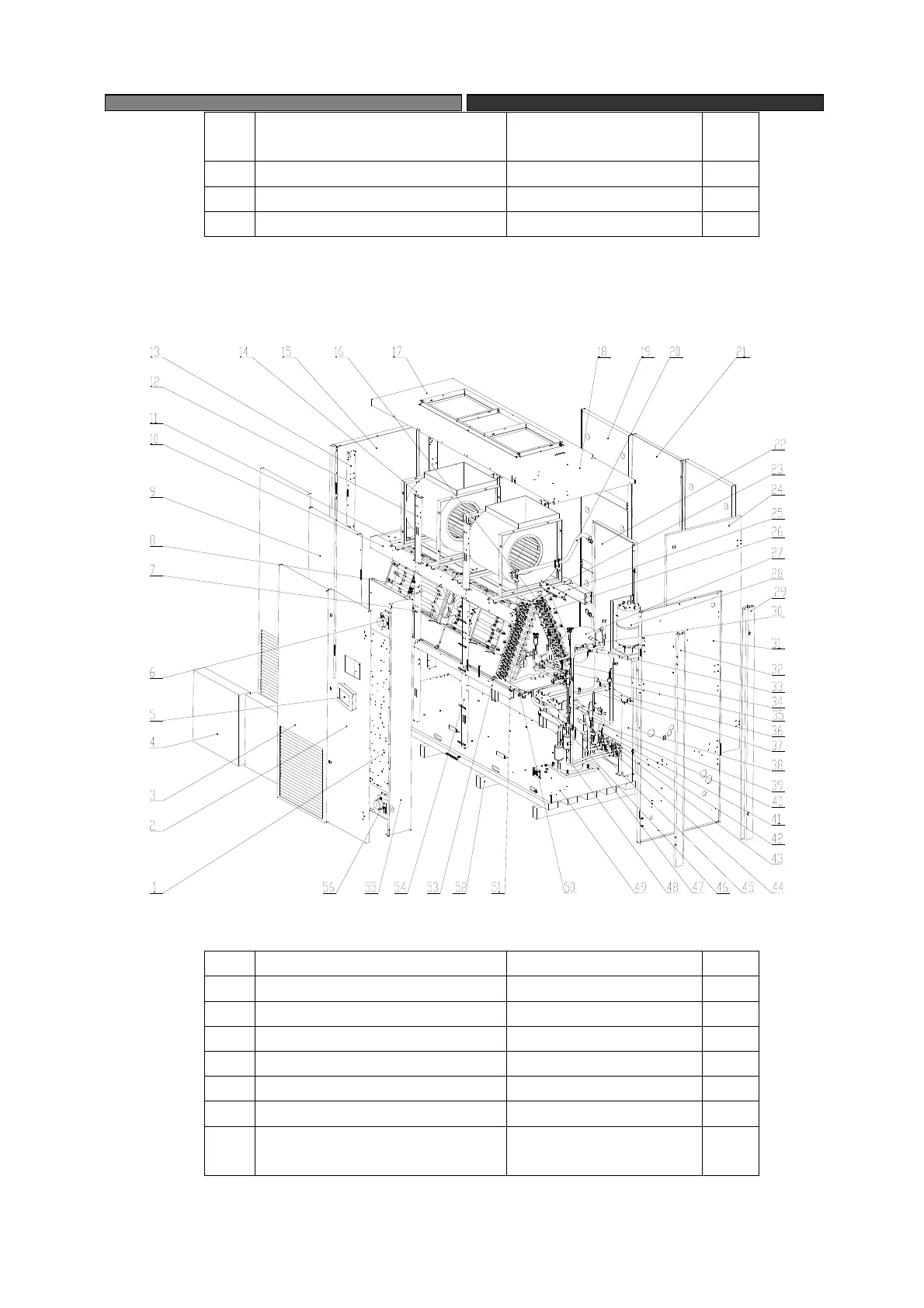

Exploded view of JKFD40QS2/Na-M(I)（applicable to JKFD40C2/Na-M(I)）
◆ Parts' list of JKFD40QS2/Na-M(I)
No. Part Name Material Code Q’ty
1 Mounting plate of electric part 01323776 1
2 Electric control door 01393753P 1
3 Panel (front right) 01543804 2
4 Primary strainer assy 07413716 3
5 Touch screen ZE130 35018017 1
6 Pressure difference switch2 01325237 1
7
Electric heater BKR
4500W/380V
32103706 2
To Next Page
