VRF Protocol Gateway
8
5.4.3 The 2st Lever of Functional DIP Switch—485 Bus Matched
Resistance Setting
The 2nd dial code of the function dialer is used for setting the matching
resistance of the gateway of 485 bus.
When the controller is at the beginning/end of the 485 bus, the controller needs
to be set to be with matching resistance, then the second bit of function dialer is set
to 1; when the controller is not at the beginning/end of the 485 bus, set the controller
to be without matching resistance, and set the dial code to 0.

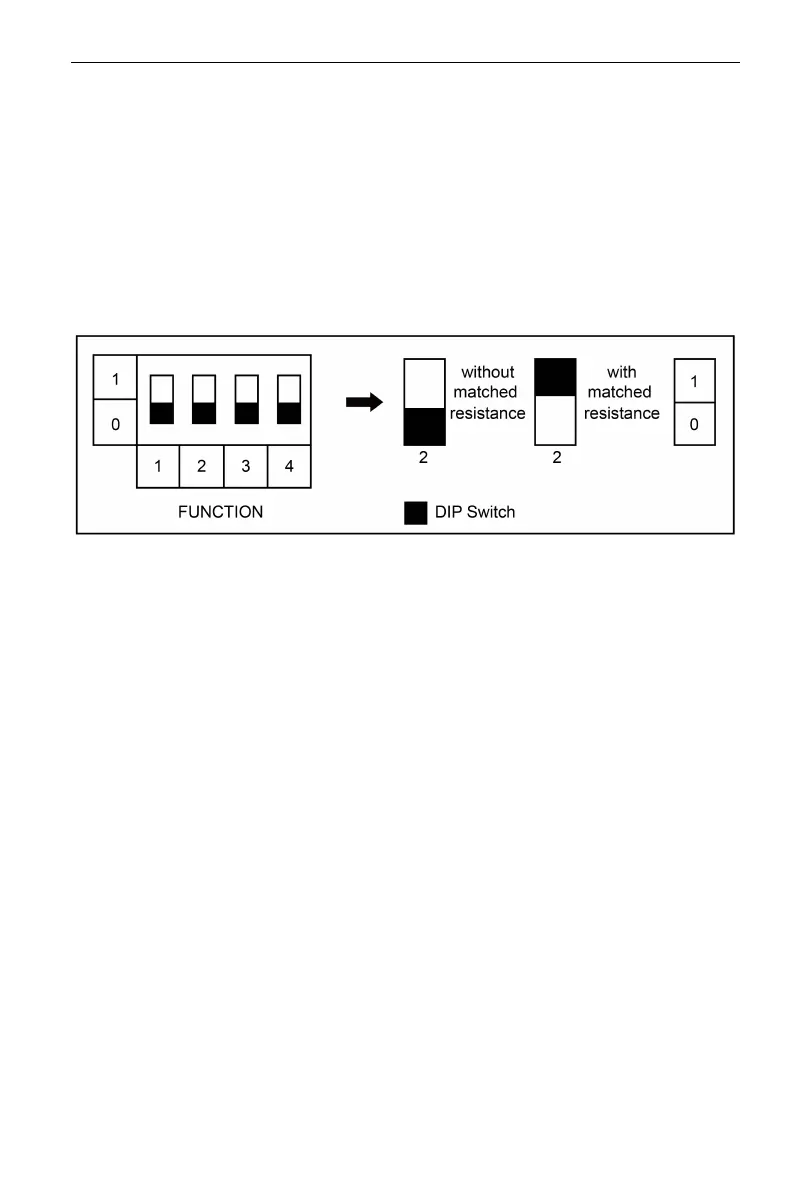

Fig. 5.6 Schematic of dial code
5.4.4 The 4st Lever of Functional DIP Switch—Gateway Reset
Selection Bits
When there’s an error in configuring Gateway IP address, subnet mask, default
gateway, gateway name or gateway ID from the webpage, and the webpage can’t
be accessed, user can reset the gateway to restore factory default information. Dial
the fourth digit of the DIP switch code to “1”, hold SHT/DWN button for 5s to restore
the default information of factory setting of the gateway.
