Disassembly of EVO+ Indoor Unit
12,000 btuh Other models may vary slightly
Warning - Wait 10 minutes aer power is disconnected before starting disassembly.

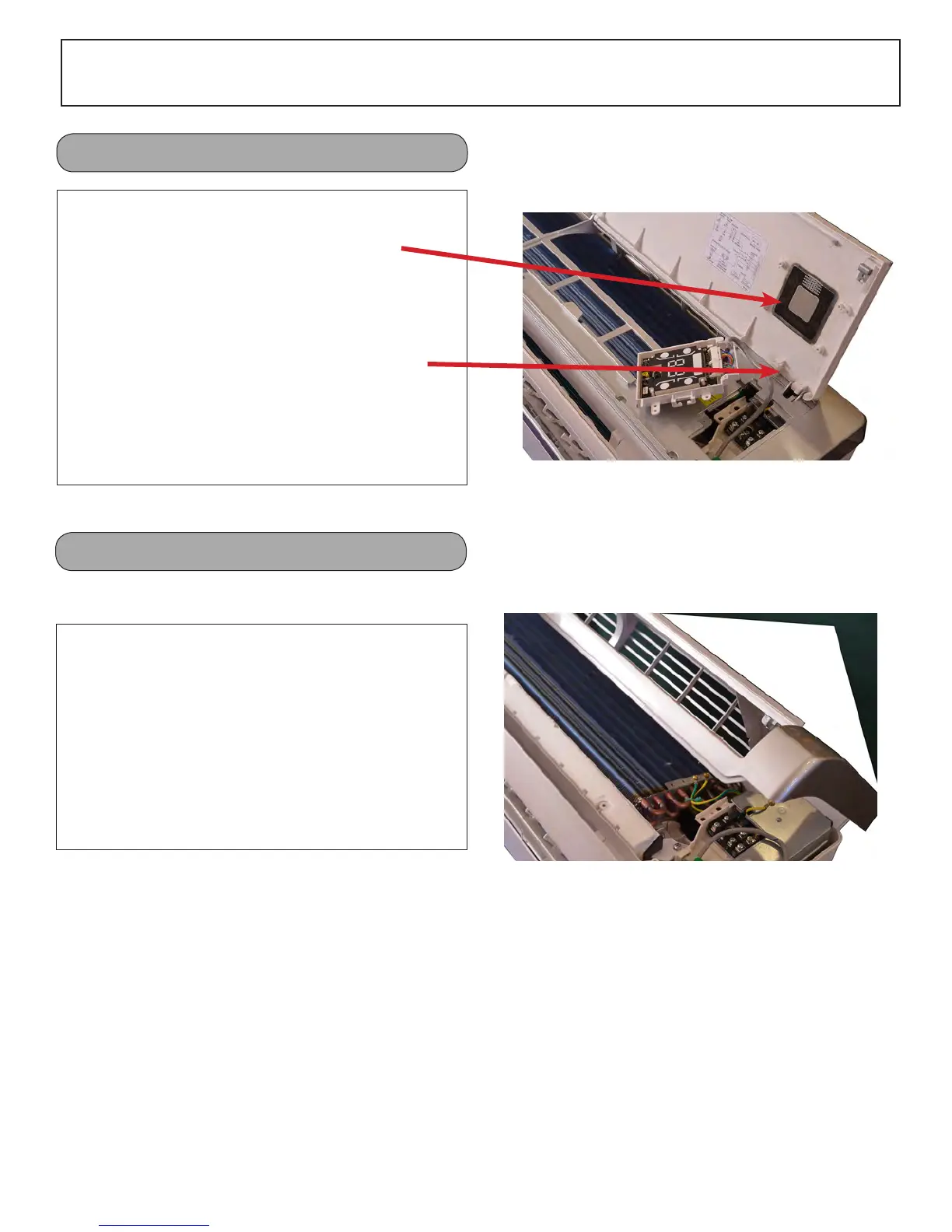

Step 1. Remove the four srews holding the display.
Carefully set to the side.
Step 2. Very carefully un-snap the cover and
remove it.
4. Remove guide louver, continued
Small guide louver
Step 1. Carefully remove the cover by slightly rotat-
ing up and un-snap from the back.
5. Remove panel
To Next Page
