Disassembly of Outdoor Unit
36,000 btuh Warning - Wait 10 minutes aer power is disconnected before starting disassembly.

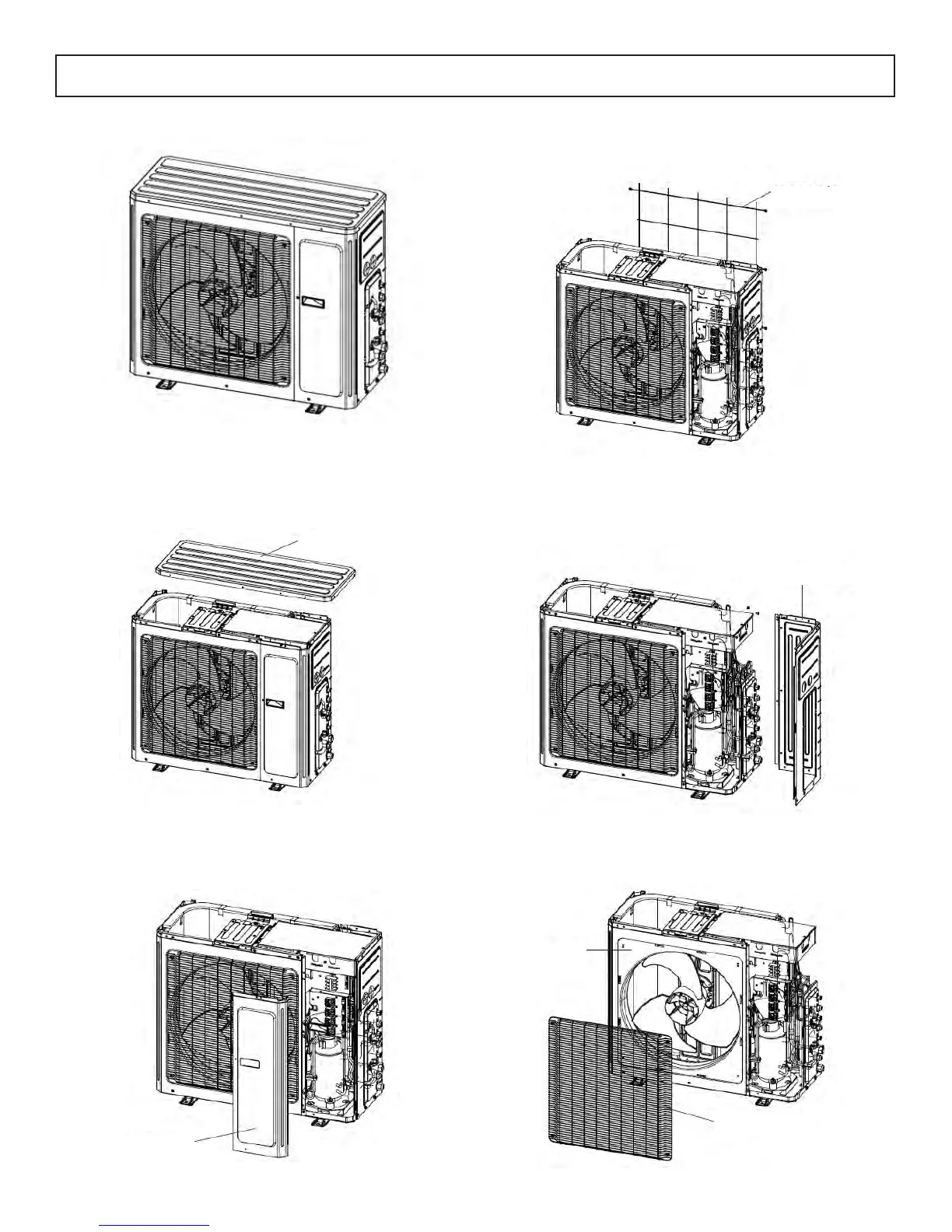

1. Before disassembly
2. Remove top cover
Remove the screws holding the top cover, panel, le and right
sides to remove the top cover..
3. Remove front side panel
Remove the screws holding the panel, chassis and middle isola-
tion sheet to remove panel.
4. Remove rear guard
Remove the 6 screws holding the grille with the right side panel
and le side panel, then remove the guard grille
5. Remove right side panel
Remove the screws holding the right side panel with electric box
assy, valve support, chassis and condenser side panel to remove
the right side panel.
6. Remove grille and cabinet
Remove the 4 screws holding the grille and outer case, then re-
move the panel grille.
Top cover
Front side panel
Rear guard
Right side panel
Cabinet
Grille
