Disassembly of Outdoor Unit, continued
24,000 & 30,000 btuh Warning - Wait 10 minutes aer power is disconnected before starting disassembly.

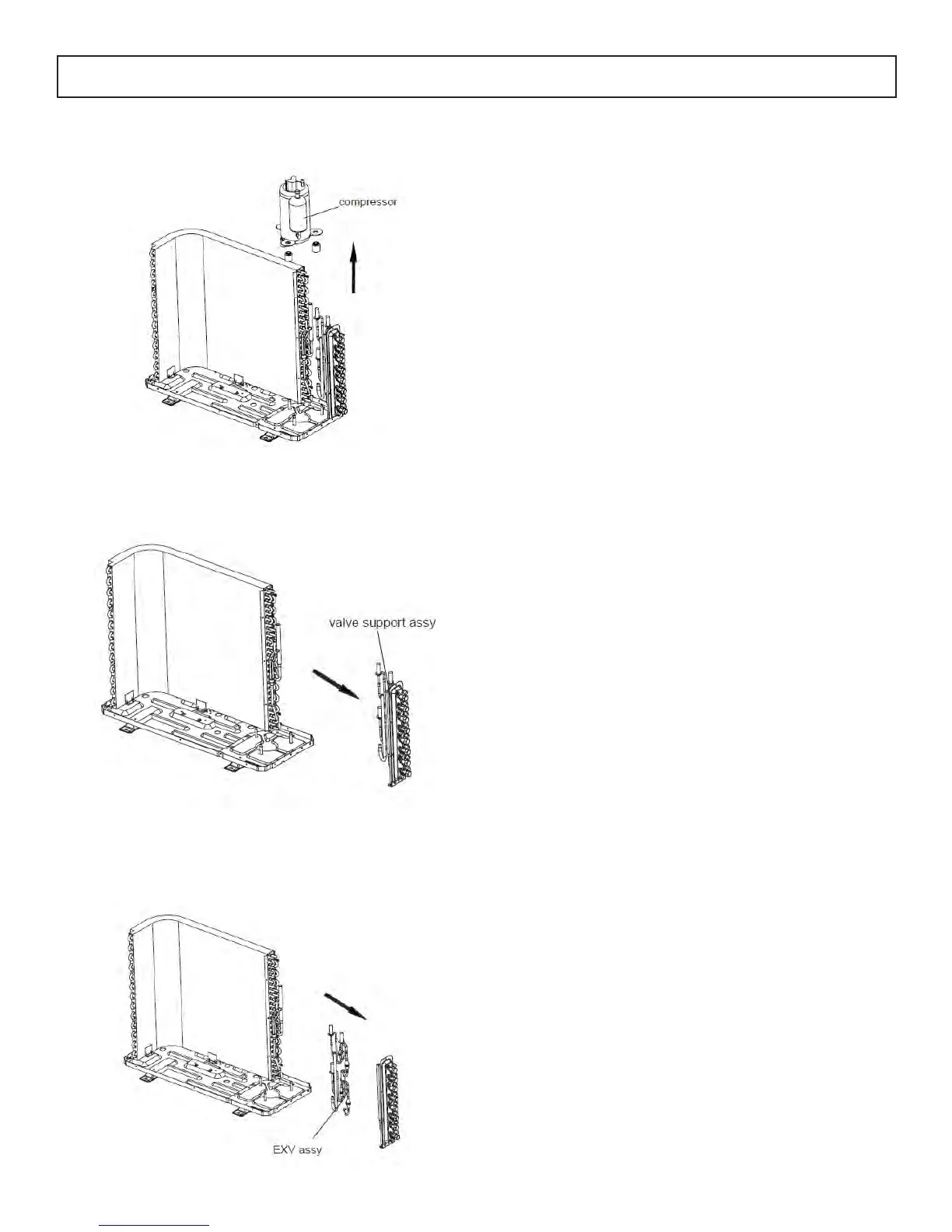

19. Remove compressor
Remove the screws holding the compressor feet and chassis as
well as the cushions to remove the compressor.
20. Remove valve support assy.
Remove the screws holding the valve support assy. and chassis
sub-assy to remove the valve support assy.
21. Remove EEV Assy
Unsolder the joints holding the EEV sub-assy and refrigerant col-
lection pipe. Note: Fully pack the big valve with a cool wet cloth to
prevent high temperature damage to valve.
To Next Page
