Disassembly of Outdoor Unit
18,000 btuh Warning - Wait 10 minutes aer power is disconnected before starting disassembly.

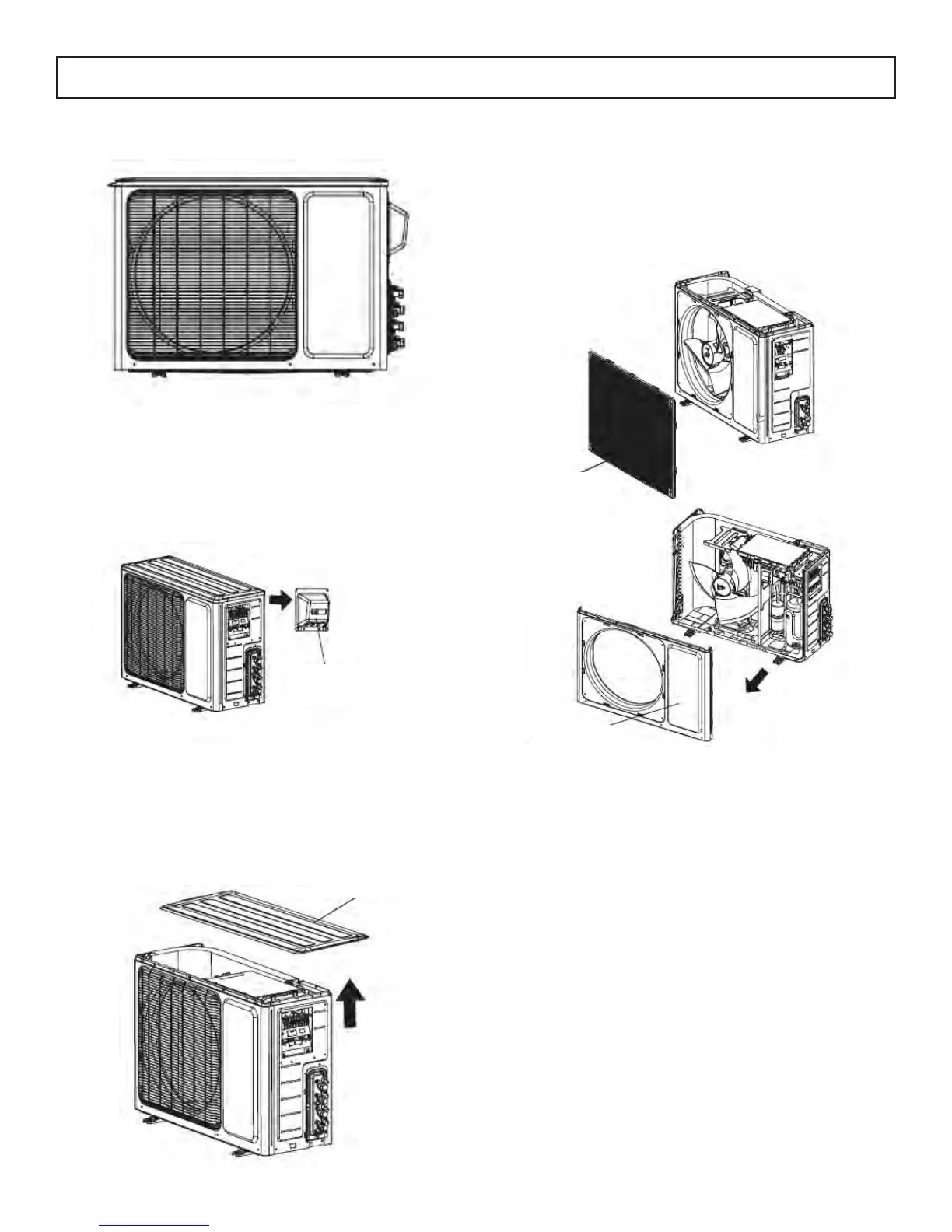

1. Before disassembly
2. Remove handle
Remove the screws connecting the handle, pull the handle upward
to remove it.
3. Remove top panel
Remove the screws connecting the handle
4. Remove front panel and front grille
Remove the screws holding the grille, then remove the grille.
Remove the screws holding the front panel and clamp, then rotate
the panel to the le and remove the front panel.
Handle
Top panel
Front grille
Front panel
To Next Page
