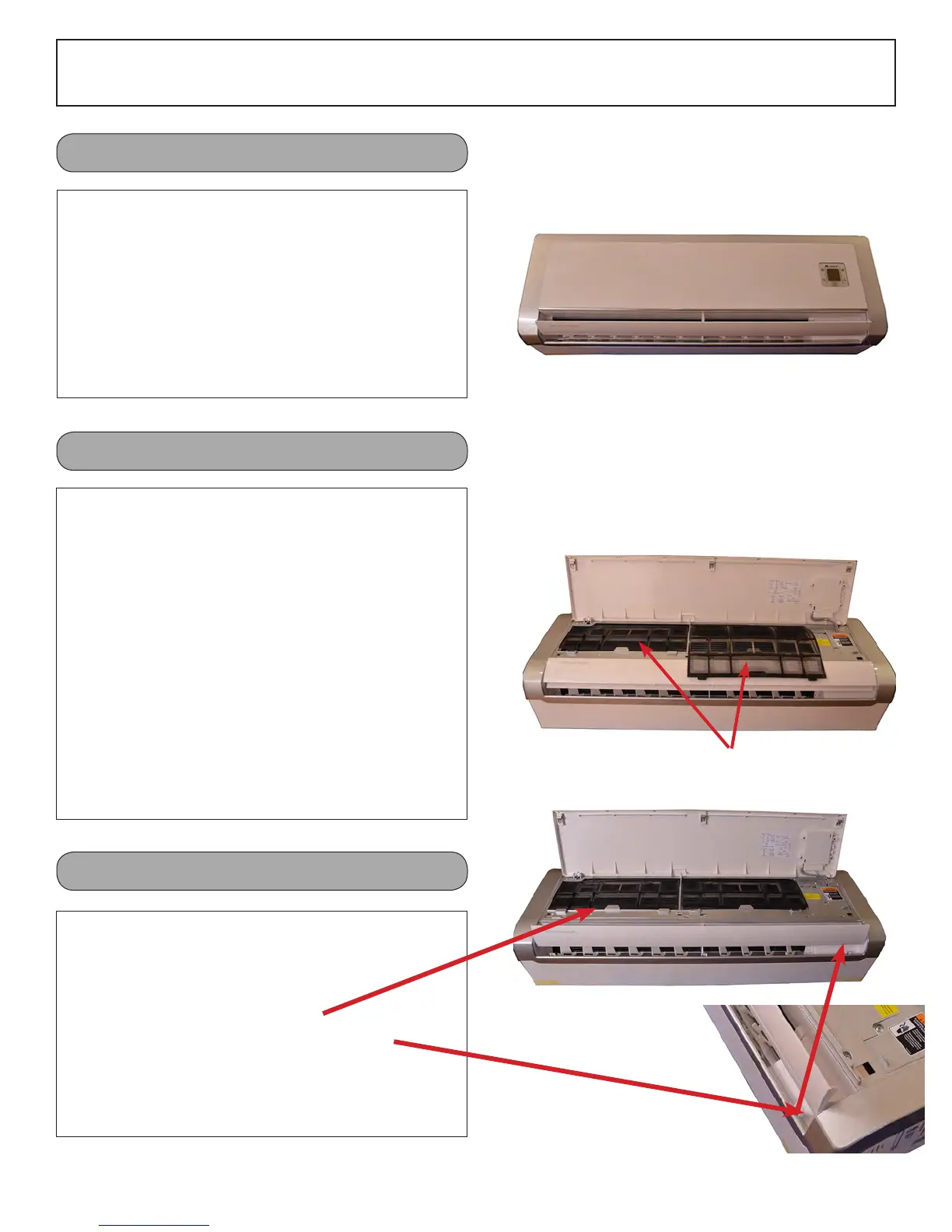

Disassembly of EVO+ Indoor Unit
12,000 btuh Other models may vary slightly
Warning - Wait 10 minutes aer power is disconnected before starting disassembly.
Before disassembly of indoor unit
Step 1. Open the panel
Step 2. Loosen the clasps on the lter, push the
lter inward, then pull upward, removing the lters.
Step 1. Remove screws near lter
Step 2. Remove screws under hinged cover
Filter
1. Before disassembly of indoor unit
2. Remove lter
3. Remove guide louver
To Next Page
