110

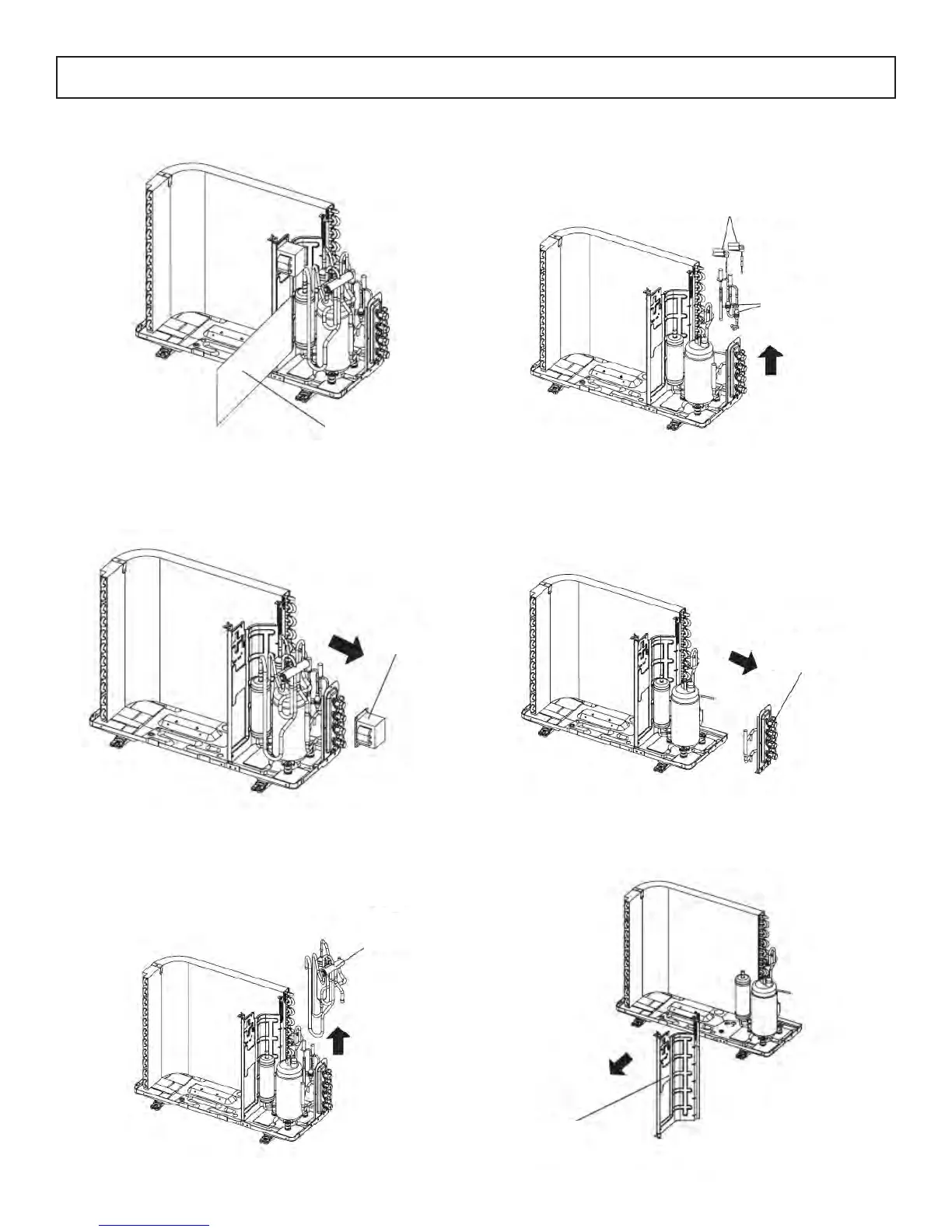

8. Remove sound proof sponge
Remove the sound proof sponge carefully.
9. Remove reactor
Remove the three screws holding the reactor and middle isolation
sheet, and the remove the reactor.
10. Remove 4-way valve
Discharge the refrigerant completely, unsolder the tubing con-
necting the compressor, then condenser assemble. Remove the
4-eway valve assembly.
Disassembly of Outdoor Unit, continued
18,000 btuh Warning - Wait 10 minutes aer power is disconnected before starting disassembly.
4-way
valve
Reactor
Sound proof
sponge
11. Remove electronic expansion valve and cut-o
valve
Unsolder the electronic expansion valve and cut-o valve. Rotate
and remove.
12. Remove valve support sub-assy.
Remove the screws holding the valve support and chassis, then
remove the valve support sub-assy.
13. Remove isolation sheet
Remove the screws holding the isolation sheet then remove it.
Isolation
sheet
Valve support
and sub-assy
cut-o valve
Electronic expansion valve
