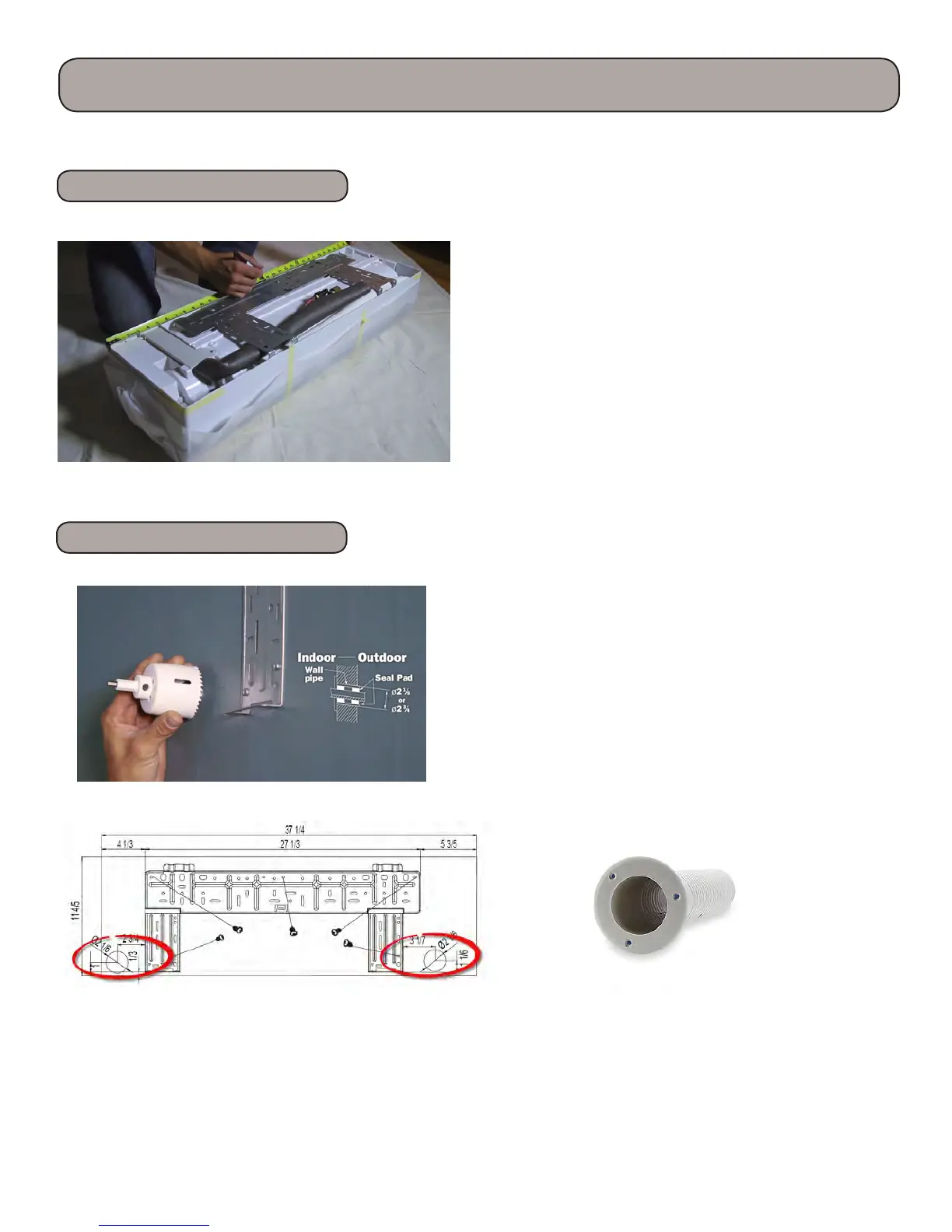

1. e mounting plate should be installed horizontally
and level.
2. Measure the center of the indoor unit. Please note, that
depending on model, the center of the bracket may not
correspond with the center of the unit.
3. Attach the mounting plate on the wall with screws.
4. Be sure that the mounting plate has been attached
rmly enough to withstand approximately 132
pounds.
5. Refer to specic models for dimensional data.
Mounting Plate Installation
1. e piping can exit the indoor unit from either side,
see pictured below.
2. Drill a 2-1/2” diameter hole at a slightly downward
angle to the outdoor side.
3. Note: e outdoor hole should be approximately 1/4”
lower than the indoor hole.
4. Insert the piping-hole sleeve into the hole to prevent
the piping and wiring from being damaged when pass-
ing through the hole.
Locate and Drill Hole
