52

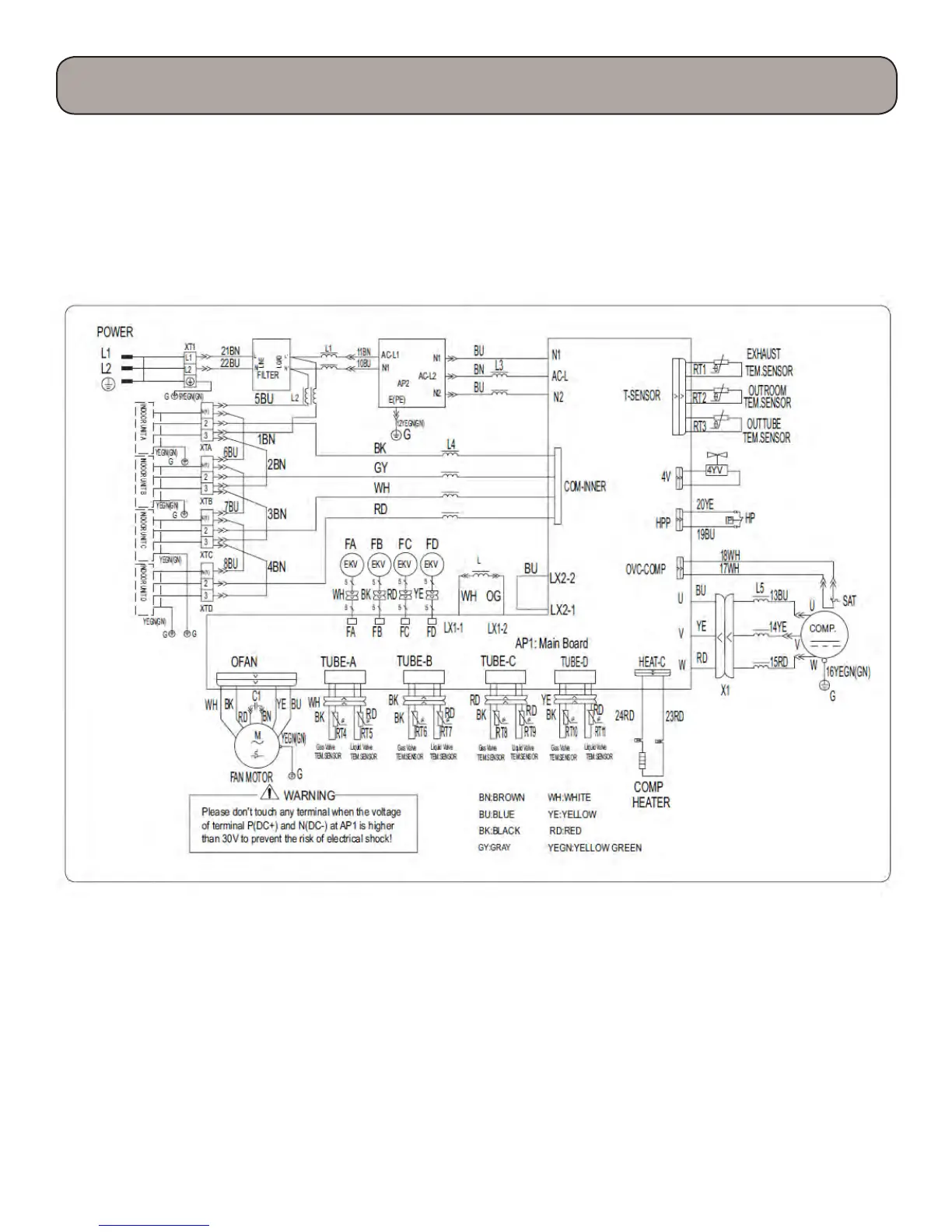

Electrical Schematics
ese circuit diagrams are subject to change without notice, please refer to the one supplied with the unit.
MULTI30HP230V1AO
