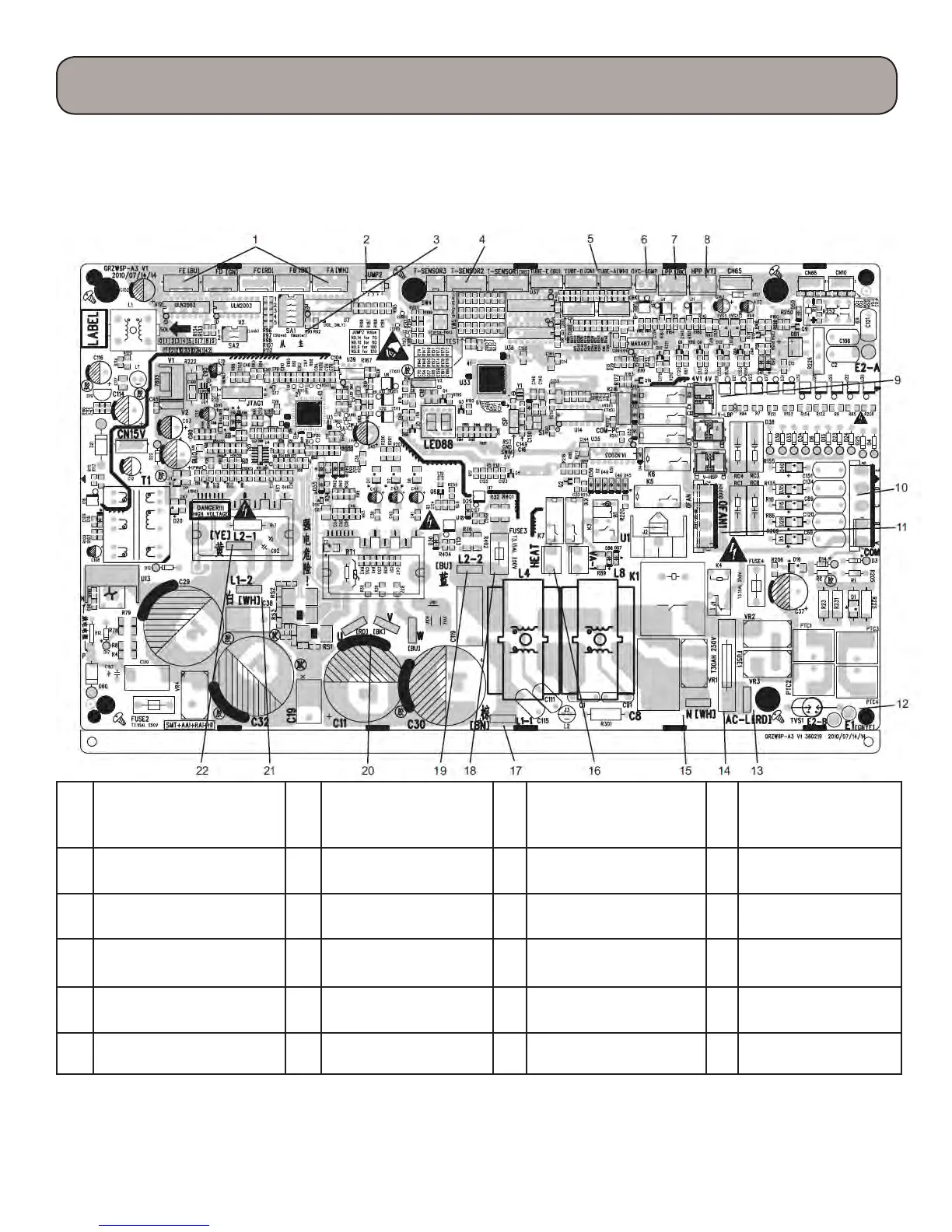

Printed Circuit Boards
MULTI42HP230V1AO
1
FA-FE: Terminals
of EXV(Electronic
Expansion Valve)
7 Low Pressure Switch 13 Power Wire Terminals 19 Blue Reactor Wire
2 Jumper Terminals 8 High Pressure 14 Fuse 20
Compressor
Terminals
3
Master Select Switch
Terminals
9 4-Way Valve 15
Neutral Wire
Terminals
21 White Reactor Wire
4
Temperature Sensor
Terminals
10
Communication
Terminals
16
Compressor Band
Heater
22 Yellow Reactor Wire
5 Temperature sensor of
Tubes
11 Fan Terminals 17 Brown Reactor Wire
6
Overload Protector 12 Earth Ground 18 Fan Fuse
ese circuit diagrams are subject to change without notice, please refer to the one supplied with the unit.
