GMV6 HR Mode Exchange Box
12

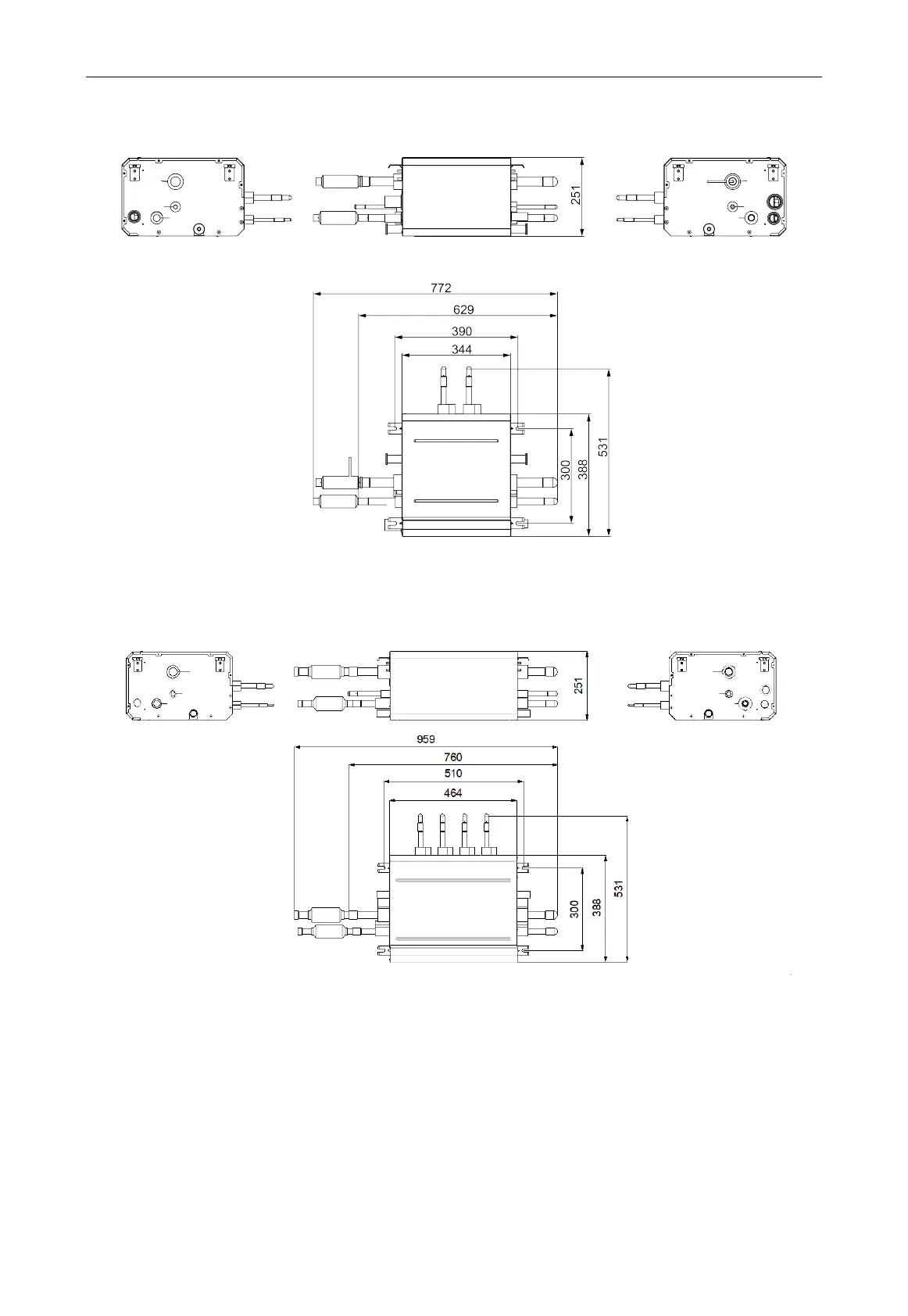

NCHS2D outline and installation dimension:
Unit
：
mm
Fig.4.1.6
NCHS4D outline and installation dimension:
Unit
：
mm
Fig.4.1.7
