Fabra Hood Gravity Ventilator2

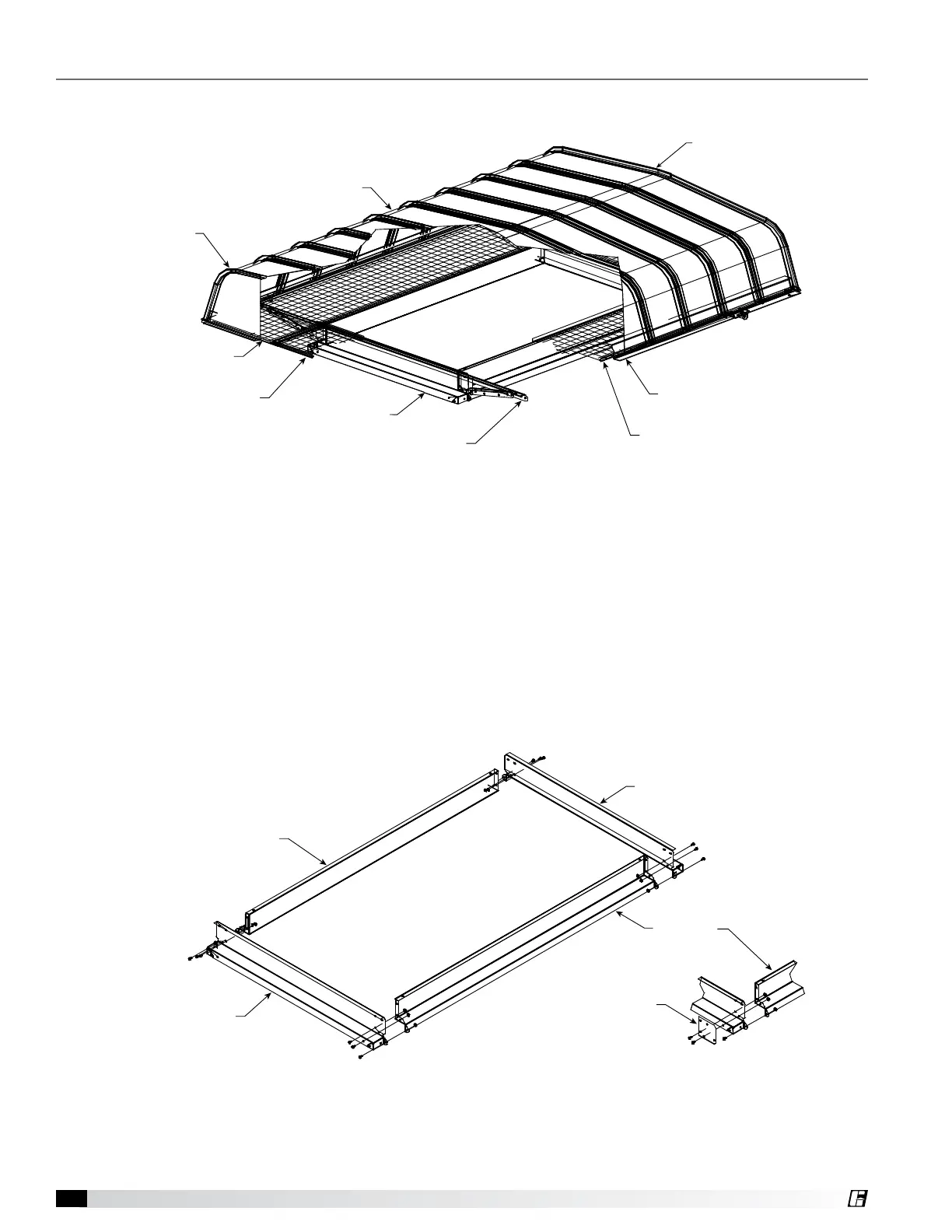

Step 1 - Fabra hood B #471321

HOOD END ASSEMBLY

(FEMALE RIB)

HOOD RAIL ASSEMBLY

SIDE BIRDSCREEN ASSEMBLY

HOOD SUPPORT ANGLE

BASE ASSEMBLY

END BIRDSCREEN

ASSEMBLY

SIDE BIRDSCREEN

ASSEMBLY

HOOD END ASSEMBLY

(MALE RIB)

HOOD PANEL

Step 1 – Open crates and separate parts

Open the shipping crates and separate the parts according to the size of the unit, refer to Figure 1.

Step 2 – Place BASE ENDS and BASE SIDES

Place the two base ends and the two base sides in their approximate relationship to each other, see Figure 2.

Fasten together using three 1/4-20 fasteners per corner for 5 inch high base and four 1/4-20 fasteners per corner

for 12 inch high base.

NOTE: Fasteners should be hand tightened only until Step 4.

On some units where the difference between the hood width and throat width is greater than 32 inches, a

reinforcing plate is required in the corners of the base, refer to Figure 2, Detail A.

Figure 1

Figure 2 Fabra hood B #471321

BASE END

BASE SIDE

REINFORCING PLATE

DETAIL A

BASE END

BASE SIDE

Figure 2

IMPORTANT: For high wind rated hood, follow assembly instructions starting on page 6.

Standard Assembly
