Fabra Hood Gravity Ventilator4
®

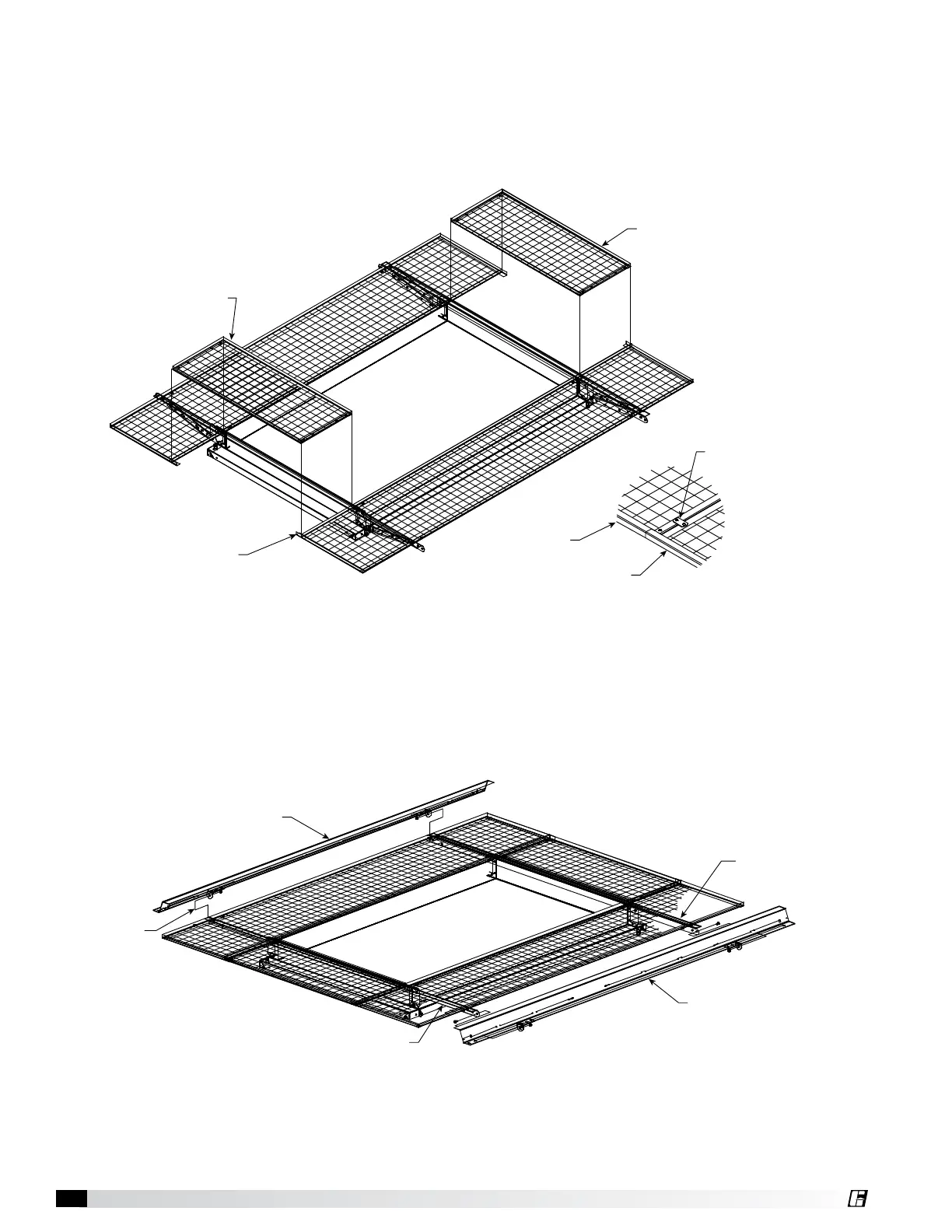

Figure 5 Fabra hood B #471321
END BIRDSCREEN
ASSEMBLY
END BIRDSCREEN
ASSEMBLY
SIDE BIRDSCREEN
FRAME EXTENSION
END BIRDSCREEN
ASSEMBLY
SIDE BIRDSCREEN
ASSEMBLY
BIRDSCREEN
CLIP
DETAIL D
VIEWED FROM UNDER SIDE
Figure 5
Step 6 – Install END BIRDSCREEN ASSEMBLY
Install the end birdscreen assembly, refer to Figure 5. Turn the birdscreen clips (which are pre-assembled to the end
birdscreen assembly) so that two are under the side birdscreen frame extension and the other two are under the
hood support angle. See Figure 5, Detail D.
NOTE: Loosen and tighten the birdscreen clip as necessary.
Step 7 – Attach HOOD RAIL ASSEMBLY to HOOD SUPPORT ANGLES
Attach the hood rail assembly to the hood support angles, using 3/8 x 3/4 inch bolt with 3/8 inch Nyloc nut at each
attachment point, see Figure 6.
NOTE: Fasteners should be hand tightened only until Step 9.
Figure 6 Fabra hood B #471321
HOOD RAIL
ASSEMBLY
NYLOC NUT
HOOD SUPPORT
ANGLE
HOOD RAIL
ASSEMBLY
HOOD SUPPORT
ANGLE
Figure 6
