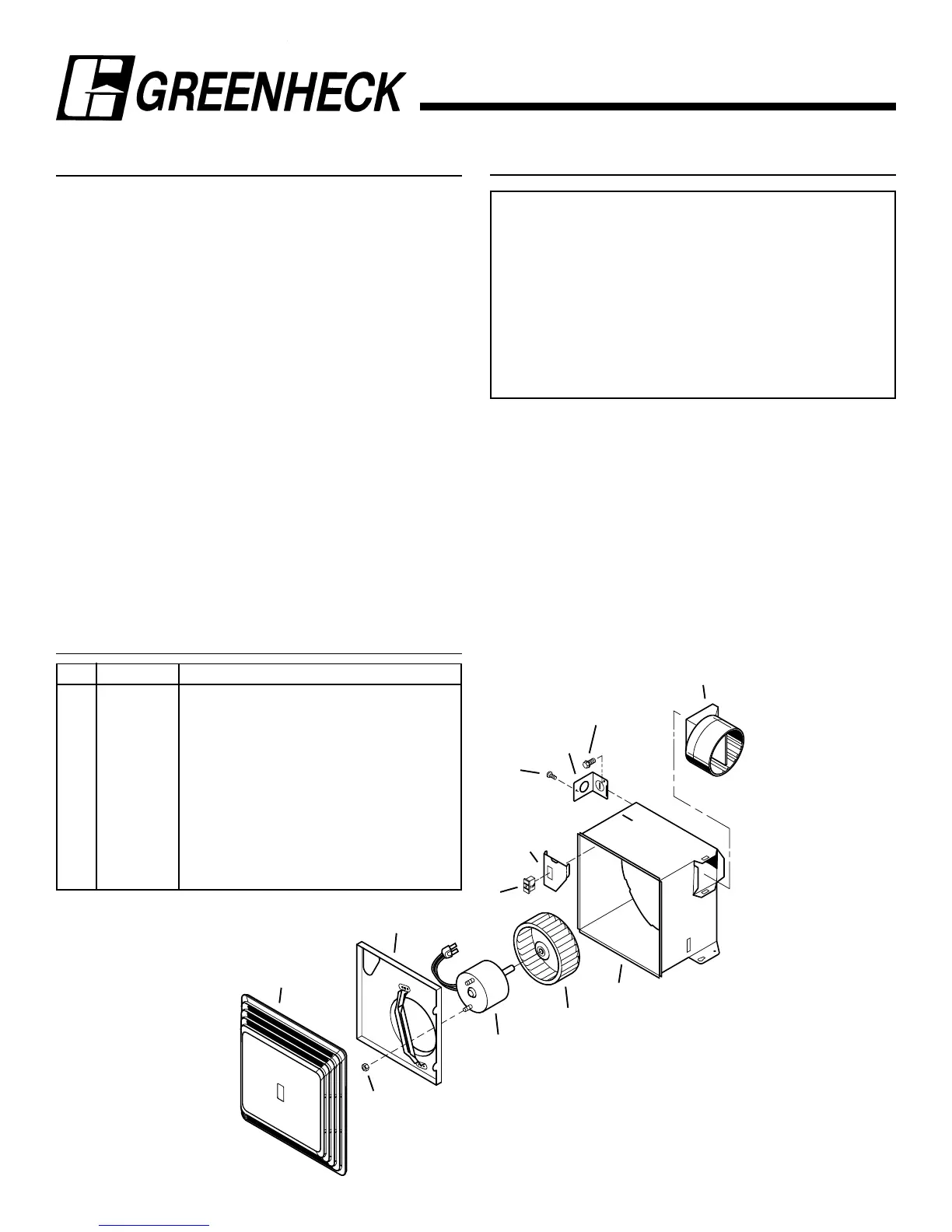

MODEL SP-6
1
3
8
6
9
10
2
11
7
12
4
5
KEY PART NO. DESCRIPTION
1 97013576 Grille
2 97014926 Motor Plate
3 99080518 Motor
4 99020276 Impeller
5 99260425 Motor Nut (2 req.)
*
97015159 Blower Assembly
(includes Key Nos. 2 thru 5)
6 99270982 Receptacle
7 98009611 Wire Panel
*
97015170 Wire Panel Assembly
(includes Key Nos. 6 & 7)
8 97014922 Housing
9 97003932 Damper/Duct Connector
10 98008868 Wiring Plate
11 99150575 Screw, #8-18 x .375
12 99150574 Ground Screw
*
Not shown assembled.
Order replacement parts by
“PART NO.” - not by “KEY NO.”
USE AND CARE
SERVICE PARTS
WARRANTY
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND
LOCK OUT SERVICE PANEL BEFORE CLEANING OR SERVIC-
ING THIS UNIT.
The motor is permanently lubricated. Do not oil or disassemble
motor.
TO CLEAN GRILLE:
CAUTION: Plastic parts can be cleaned with mild, soapy water (use
a mild detergent, such as dishwashing liquid) and dried with a soft
cloth. Do not use abrasive cloth, steel wool pads, or scouring
powders.
TO CLEAN FAN ASSEMBLY:
Unplug fan assembly. To remove motor plate: Find the single tab on
the motor plate (located next to the receptacle). Push up near motor
plate tab while pushing out on side of housing. Or insert a straight-
blade screwdriver into slot in housing (next to tab) and twist
screwdriver. Gently vacuum fan, motor and interior of housing.
METAL AND ELECTRICAL PARTS SHOULD NEVER BE IM-
MERSED IN WATER.
99042895A
IOM SP-6 12-99
The Greenheck Fan Corporation warrants this equipment to be
free from defects in material and workmanship for a period of one
year from the purchase date.
Any units or parts which prove to be defective during the warranty
period will be repaired or replaced at our option when returned to
the factory, transportation prepaid.
Greenheck Fan Corporation will not be responsible for any
installation or removal costs.
Greenheck Fan Corporation
P.O. Box 410
Schofield, Wisconsin 54476
Telephone: 715-359-6171
