777 Segment Bender
Greenlee Textron Inc. / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109 815-397-7070
7

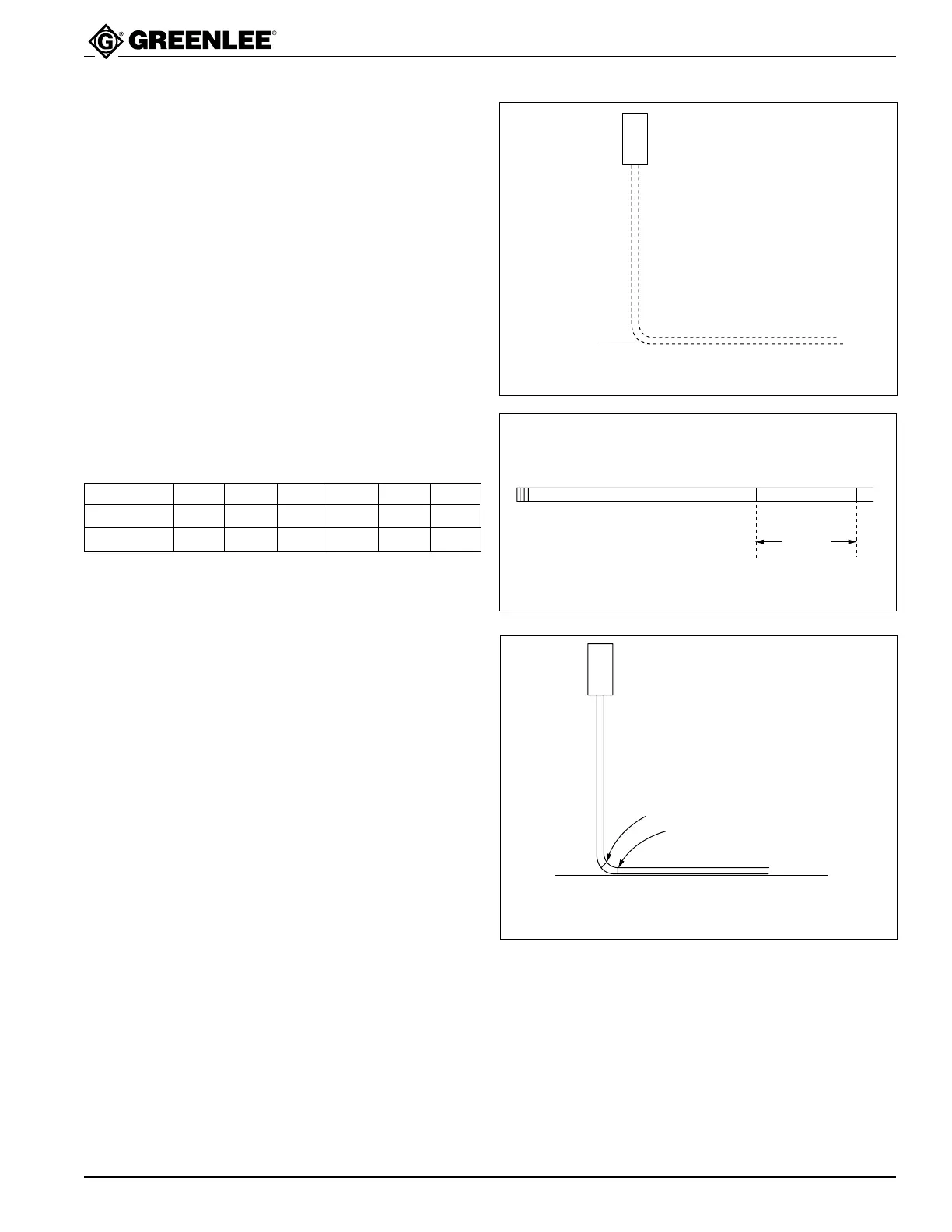

Laying Out One-Shot 90-Degree Bends
1.
Measure the length of the required stub. See Figure 1.
2. Find the minimum stub length for that diameter of
conduit on the Deduct and Minimum Stub Length
Table. The stub you require must be equal to or
longer than the minimum stub length.
3. Measure and mark the stub length on the conduit.
This is mark 1. Subtract the deduct from the stub and
mark the conduit. This is mark 2, or the bending
mark. See Figure 2.
4. Insert the conduit into the bender so that mark 2, the
bending mark, lies at the center of the shoe.
5. Bend the conduit. To achieve the desired angle, refer
to the Ram Travel Table for Common Bends in this
manual. See Figure 3.
Deduct and Minimum Stub Length Table
CONDUIT SIZE 1/2 3/4 1 1-1/4 1-1/2 2
DEDUCT 1-5/16 1-1/2 1-7/8 2-3/8 2-3/4 3-1/4
12-1/16 12-1/16 14-1/8 15-11/16 15-3/4 17-11/16
MINIMUM
STUB LENGTH
FIGURES ARE APPROXIMATE
Figure 1
FLOOR
LENGTH
OF
STUB
JUNCTION
BOX
{
MARK 1MARK 2
LENGTH OF STUB
{
DEDUCT
Figure 2
JUNCTION
BOX
MARK 1
FLOOR
MARK 2
Figure 3
