00967 Deluxe Force Gauge
Greenlee Textron / Subsidiary of Textron Inc. 7 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070
Operation
With no load on the rope, the display should read “0”
(± 4.5 kg or 10 lbs). Slight variations as the unit sits idle
are normal.
If the display is off by more than 4.5 kg or 10 lbs, press
TARE to reset the zero point.
Press the NT/GRS key at any point during or after the
pull to view the peak reading. The peak reading will flash
on the display. Press NT/GRS again to return to the
present force reading.
To reset the peak reading, press RESET while the peak
reading is flashing on the display.
Note: See the Strain Gage Meter manual for more
information.

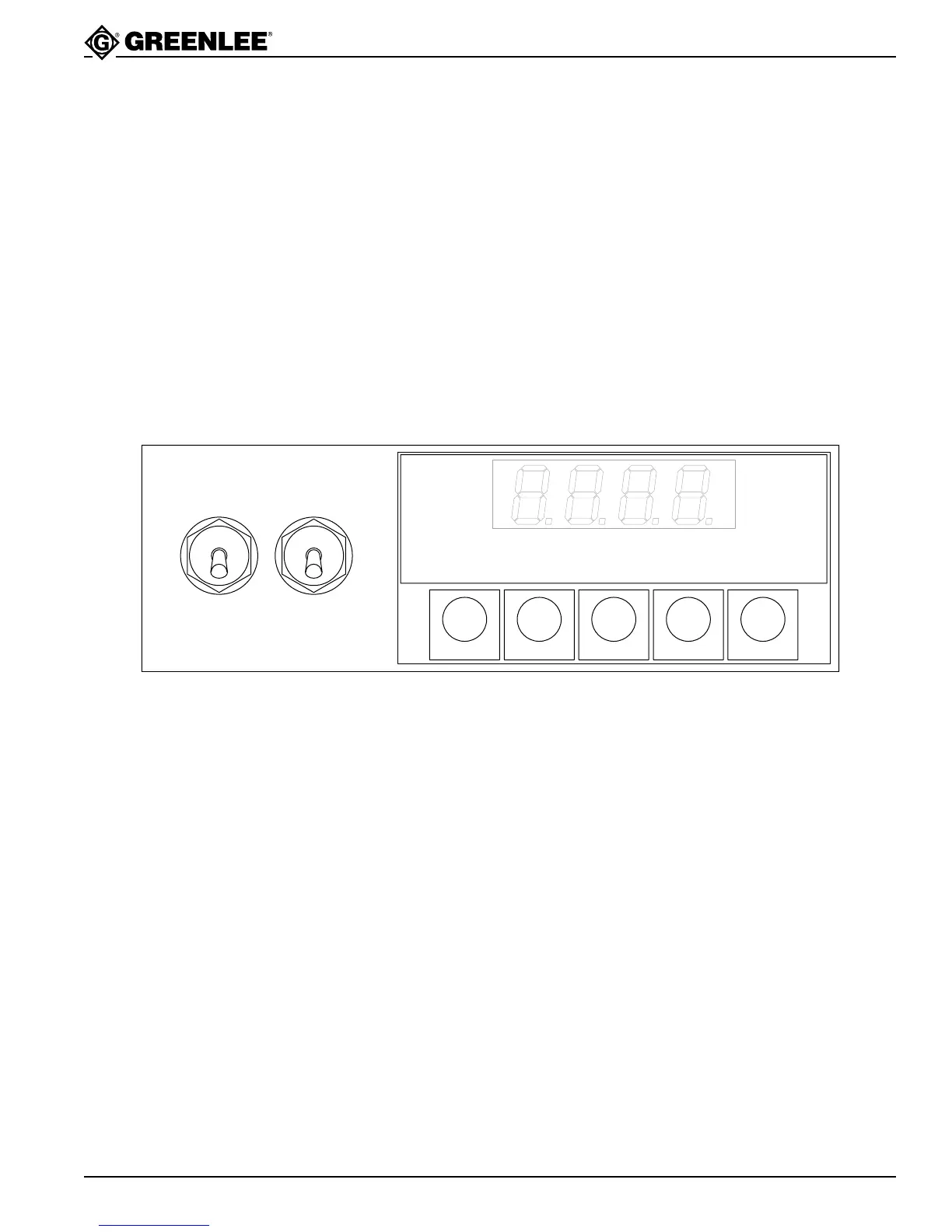

The front panel has five keys:
SETPTS (setpoints): not used
NT/GRS (net/gross): Press to recall the peak force
reading.
TARE: Press to zero the display.
MENU: Press to enter the configuration/calibration mode.
RESET: Press to reset the peak or tare readings.
SETPTS NT/GRS TARE MENU RESET
ON
OFF
ON
OFF
R
E
A
R
P
O
W
E
R
M
A
I
N
P
O
W
E
R
To Next Page
