EK6FTLX and EK6FTILX Battery-powered Crimping Tools
Identification
Specifications
EK6FTLX
Crimping Tool
Length ...................................................................................................................15.5" (393 mm)
Width ......................................................................................................................3.00" (76 mm)
Height (with battery) .............................................................................................13.9" (354 mm)
Weight .................................................................................................................. 11.4 lb (5.18 kg)
Crimping Force .................................................................................................... 6.2 tons (55 kN)
EK6FTILX
Crimping Tool
Length ...................................................................................................................17.7" (450 mm)
Width ......................................................................................................................3.00" (76 mm)
Height (with battery) ...............................................................................................5.5" (139 mm)
Weight .................................................................................................................... 7.1 lb (3.21 kg)
Crimping Force .................................................................................................... 6.2 tons (55 kN)
All Models
Hydraulic Oil .................................................................................52057878 biodegradable hydraulic uid
Recommended Operating Temperature Range ................................................ 5 °F to 122 °F (–15 °C to 50 °C)
Crimping Capacities
Crimping Range
Copper .......................................................................................................... 4 AWG to 750 kcmil
Aluminum ...................................................................................................... 6 AWG to 750 kcmil
Battery Charger ................................................................................... Read the instructions supplied
with the battery charger
Battery Technology .................................................................................... MAKITA
®
LXT
®
Lithium ion
Inline ..................................................................... BL1815, BL1820, BL1830, BL1840, BL1850
Pistol .................................................................................................. BL1830, BL1840, BL1850

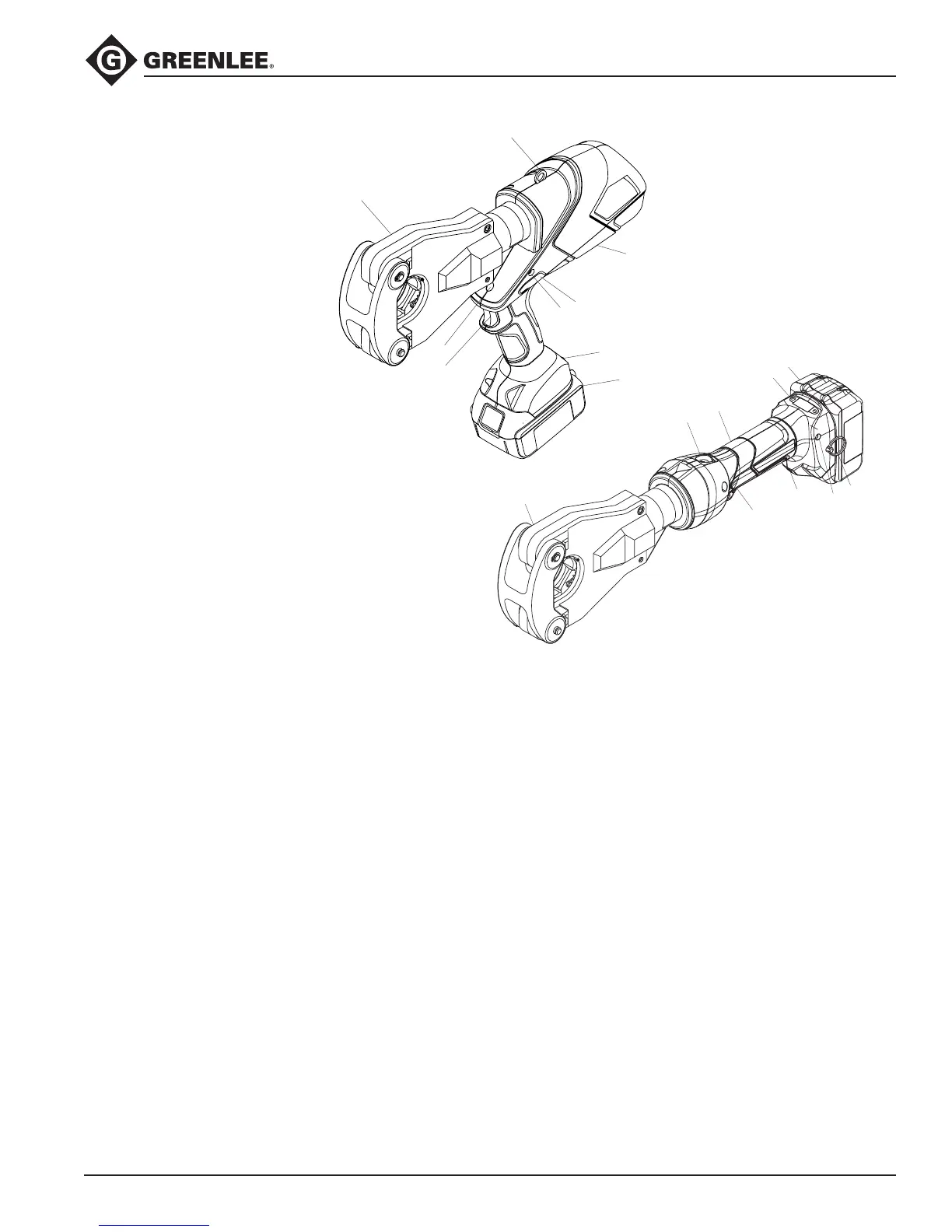

1. LED Work Light (white)
2. Crimping Head
3. Lanyard Ring
4. Housing
5. Retract Button
6. LED Indictor (red)
7. LCD Screen
8. Battery
9. Trigger
9
8
3
5
6
4
1
7
2
5
4
9
1
6
3
7
8
2
