GreenWorks 20192 - Replacing the Bar and Chain

25
MAINTENANCE

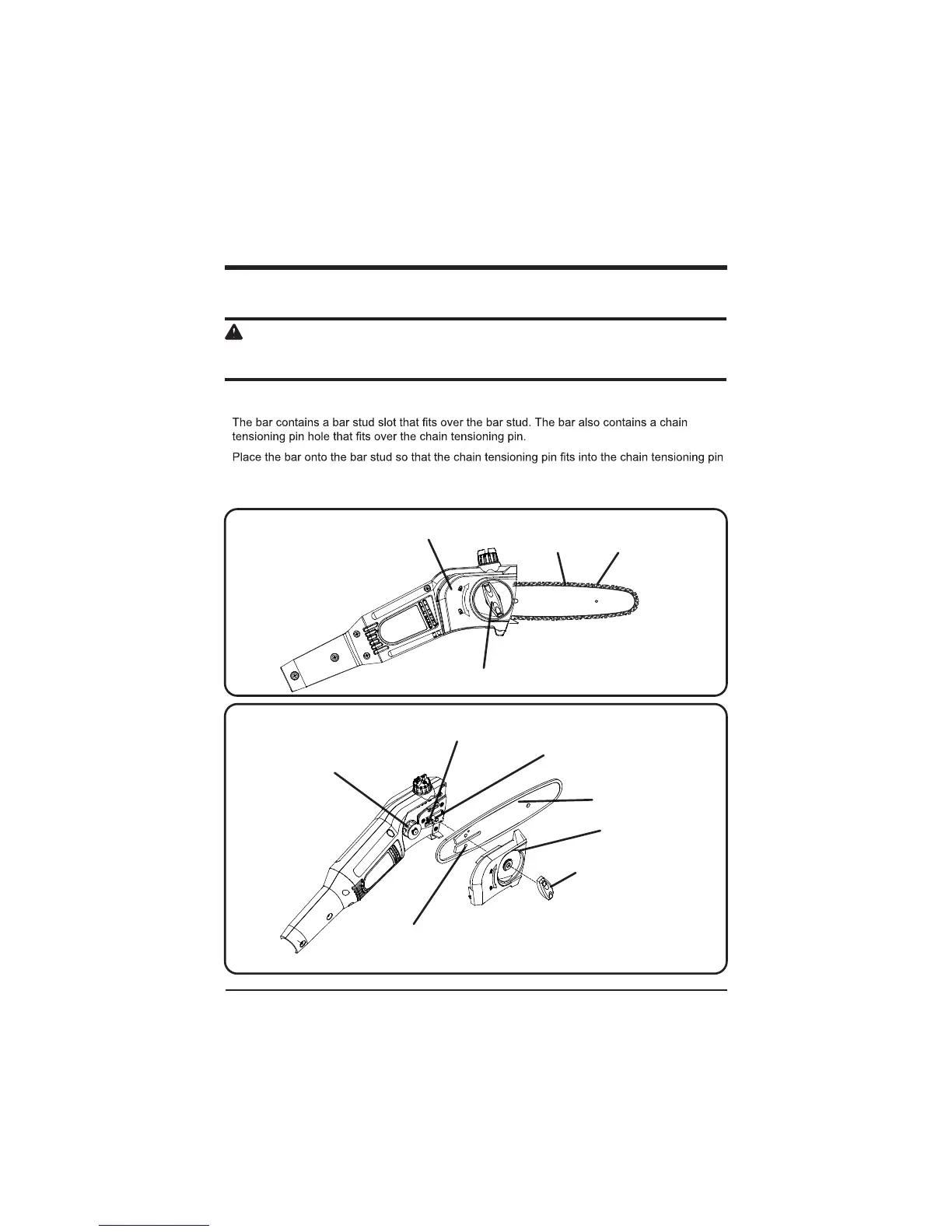

REPLACING THE BAR AND CHAIN (See Fig. 17 - 20.)
WARNING
To avoid possible serious injury, stop the motor and disconnect from power supply before replacing
the bar, chain, or performing any maintenance operation.
 Remove the lock knob and chain cover.


hole. Fit the chain over the sprocket and into the bar groove. The cutters on the top of the bar
should face toward the bar tip, in the direction of chain rotation.
Fig. 18
Fig. 17
CHAIN COVER LOCK KNOB
BARCHAIN
CHAIN
COVER
CHAIN TENSIONING
PIN HOLE
CHAIN COVER
LOCK KNOB
CHAIN COVER
BAR STUD SLOT
BAR STUD
CHAIN TENSIONING PIN
SPROCKET
