13
ASSEMBLY INSTRUCTIONS

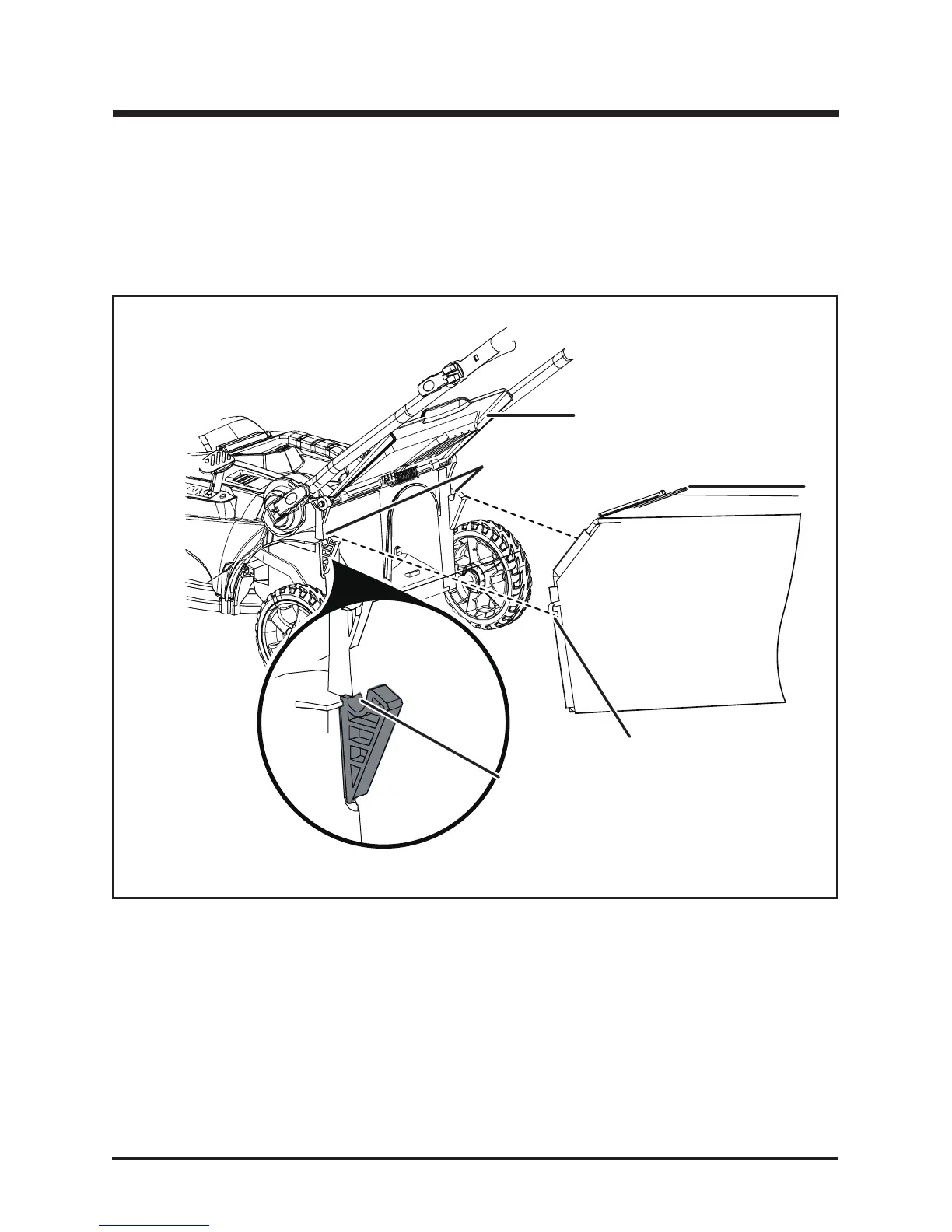

Fig. 3
INSTALLING THE GRASS CATCHER BAG (See Figure 3)
• Lift the chute cover (1).
• Lift the grass catcher by its handle (2) and place under the chute cover so that the hooks (3)
on the grass catcher frame are seated into the slots in the handle bracket.
• Release the chute cover. When installed correctly, the hooks on the grass catcher will rest
securely in the slots on the handle brackets.
Slots
Slots
3
1
2
