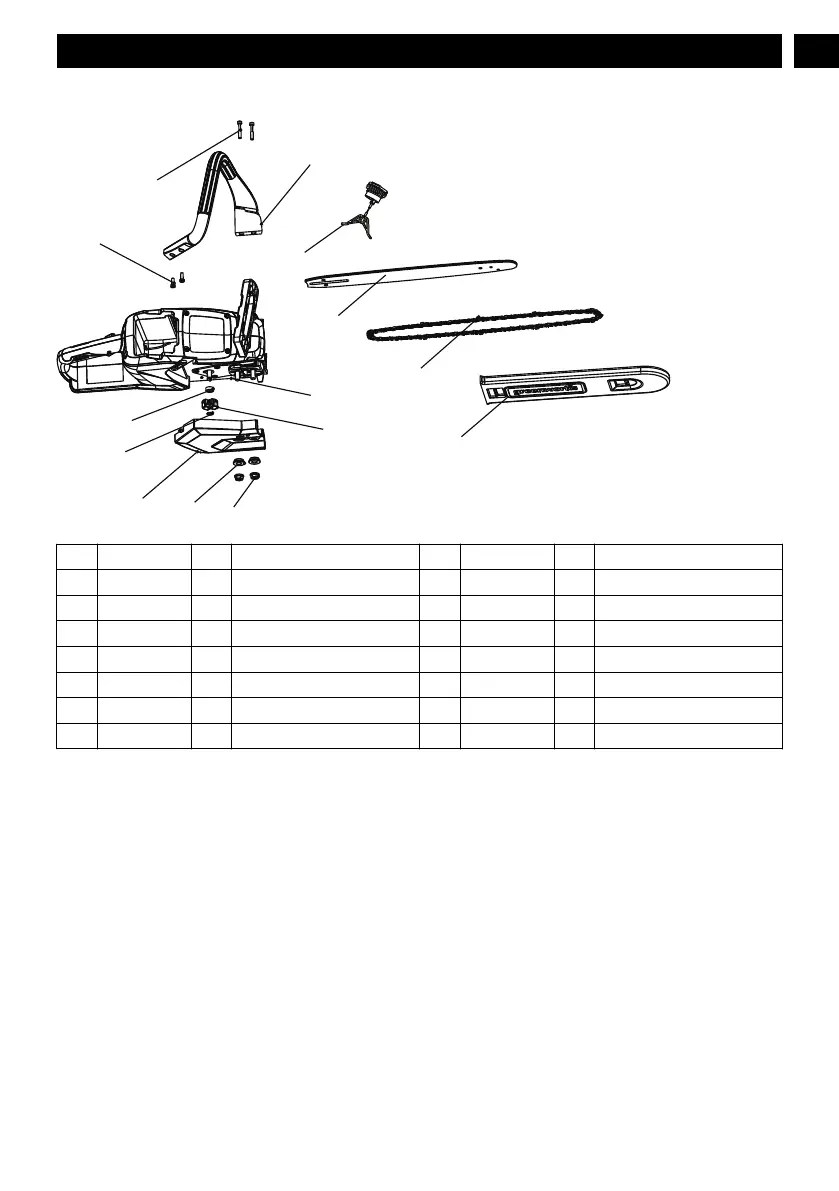

GreenWorks CSF403 - Exploded View

16 EXPLODED VIEW
12
11
10
13
3
9
2
1
4
7
5
6
8
14
No. Part No. Qty Description No. Part No. Qty Description
1 322091063-1 2 Nut 8 34114405-1 1 Scabbard
2 33906159-1 2 Bushing 9 341022030 1 Side cover
3 32209590A 1 Clip 10 32206590 2 Screw
4 33902102C 1 Sprocket 11 32211590 2 Screw
5 311122030 1 Bar 12 341062030 1 Assistant handle
6 311021068 1 Saw chain 13 322032030 1 Spacer bushing
7 311202030 1 Chainsaw housing assembly 14 311052703B 1 Oil cap assembly
