GreenWorks MO48B01 - Exploded View

TECNOLOGIA CAMPO Y JARDIN S.A. DE C.V.
ADMINISTRADORES No. 5336 A, COL. ARCOS DE
GUADALUPE, ZAPOPAN , JALISCO , C.P. 45037

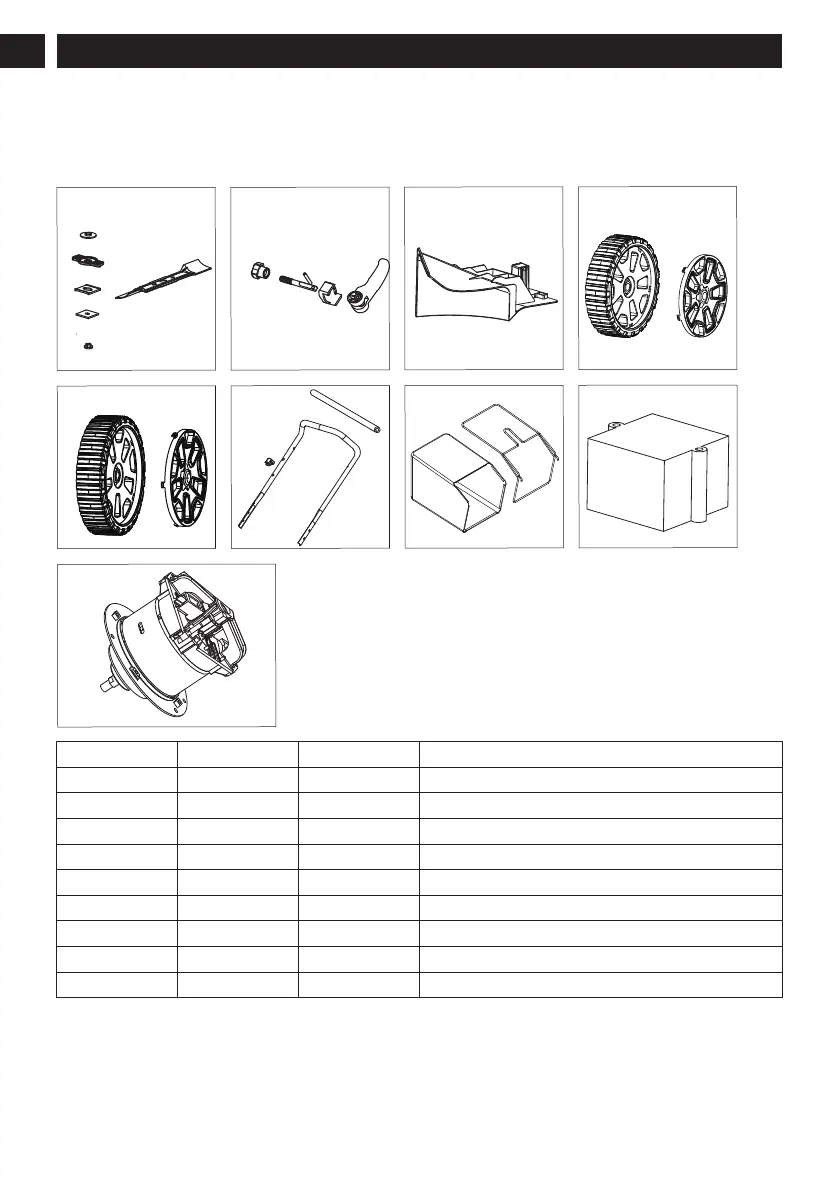

22 EXPLODED VIEW
1
3
4
5
9
6 7 8
2
No. Part No. Qty. Description
1 R0200220-00 1 Blade assembly kit
2 R0200936-00 1 Handle knob/bolt assembly
3 RB341041559 1 Mulch plug kit
4 R0201044-00 1 7" front wheel assembly
5 R0201045-00 1 8" rear wheel assembly
6 R0201046-00 1 Upper handle assembly
7 R0201049-00 1 Grass catcher assembly
8 R0201047-00 1 Power control board
9 R0201048-00 1 Motor
