Gear cases
Gear case Specication Chart
Gear case Lubricant Capacity Capacity
Fill Plug Torque
Drain Plug
Torque
Main Gearcase
(Transaxle)
ATV Angle Drive
Fluid
30.4 oz. (900 ml) 14 ft. Lbs. (19.4
Nm)
14 ft. Lbs. (19.4
Nm)
Front Gearcase Demand Drive
Fluid
5.1 oz. (150 ml) 8-10 ft. lbs. (11-
13.6 Nm)
11 ft. lbs. (15
Nm)
Main Gearcase (Transaxle)
Always check and change the main gearcase oil at the intervals outlined in the Periodic
Maintenance Chart. Maintain the oil level even with the bottom thread of the ll plug hole.
Refer to the Gearcase Specications Chart for recommended lubricants, capacities and torque
specications.

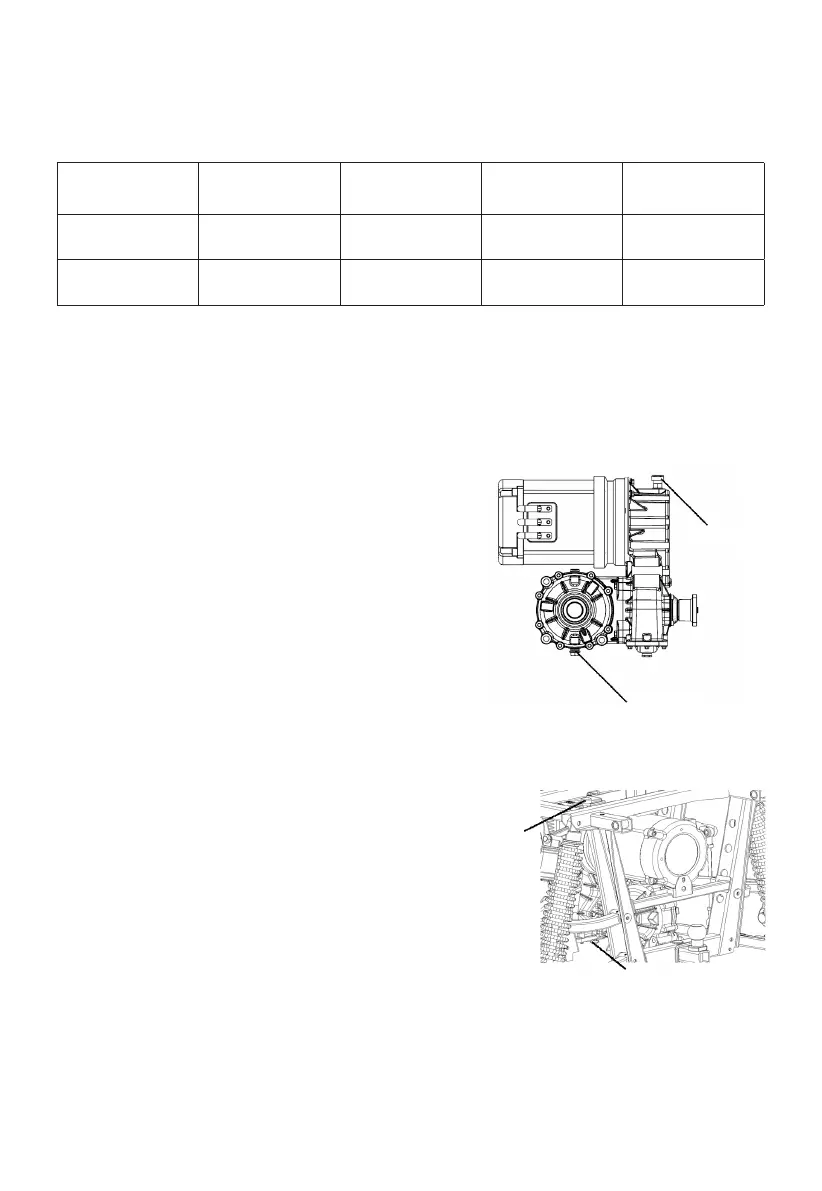

Fill plug
Drain plug
Fill plug
Drain plug
Oil Check
The ll plug is located at the right rear of the vehicle.
1. Position the vehicle on a level surface.
2. Remove the fill plug.
3. Check the oil level.
4. Add the recommended oil as needed.
5. Reinstall the fill plug. Torque to specification.
Oil Change
The drain plug is located on the lower right side of the
main gearcase, near the ll plug. Refer to the Gearcase
Specications Chart for recommended lubricants,
capacities and torque specications.
1. Remove the fill plug.
2. Place a drain pan under the drain plug. Remove the
drain plug. Allow the oil to draincompletely.
3. Wipe the magnetic end of the drain plug clean to
remove accumulated metallic filings.
4. Reinstall the drain plug. Torque to specification.
5. Add the recommended oil as needed. Do not overfill.
6. Reinstall the fill plug. Torque to specification.
7. Check for leaks. Dispose of used oil properly.
