45
MAINTENANCE
• A special wrench can be obtained at a GREENWORKS dealer to make this adjustment.
• The spring preload setting is determined by measuring distance A, shown in theillustration. The
shorter distance A is, the lower the spring preload; the longer distance Ais, the higher the spring
preload. With each complete turn of the adjusting nut.
1. Tighten the locknut.
NOTE: Always tighten the locknut against the adjusting nut, and then tighten it to the specied
torque.
Rebound damping force
Turn the rebound damping force adjusting screw in direction S to increase the rebound damping
force and thereby harden the damping, and in direction F to decrease the rebound damping force and
thereby soften the damping.

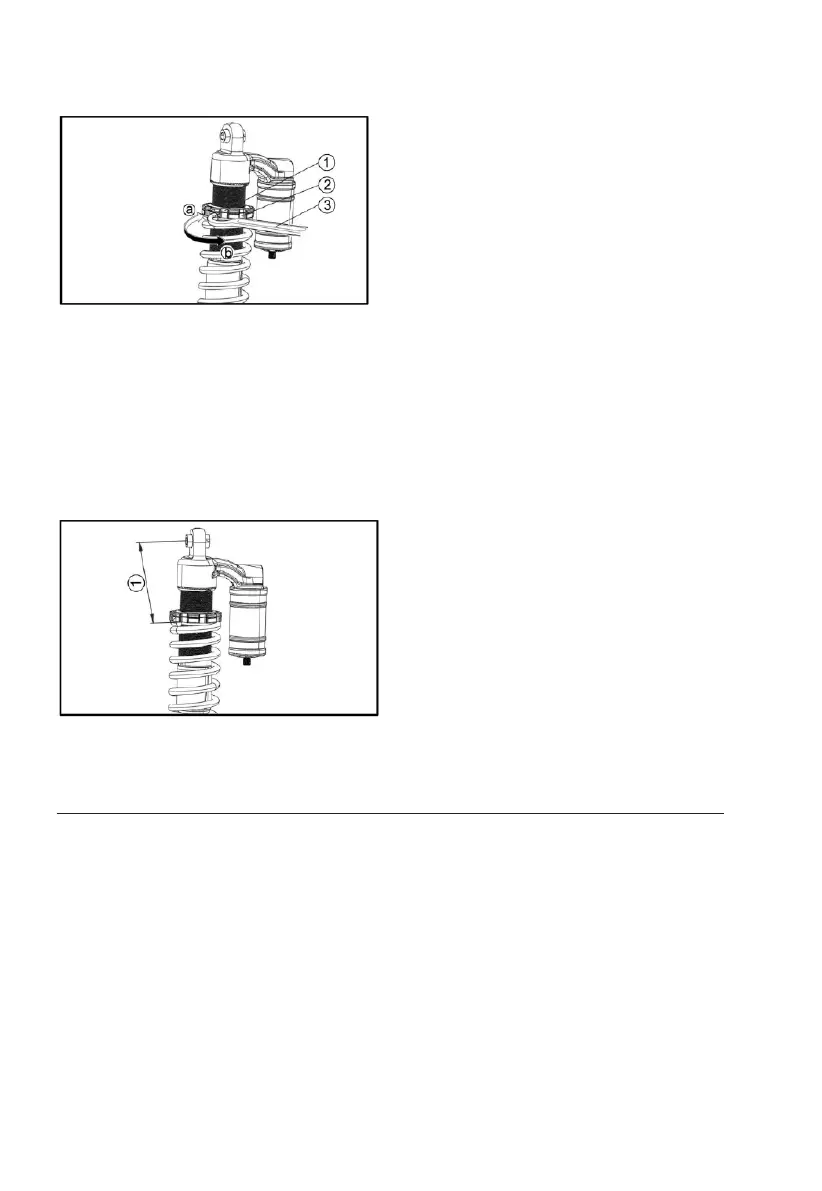

a. Locknut
b. Spring preload adjusting nut
c. Special wrench
a. Distance A
