46
MAINTENANCE

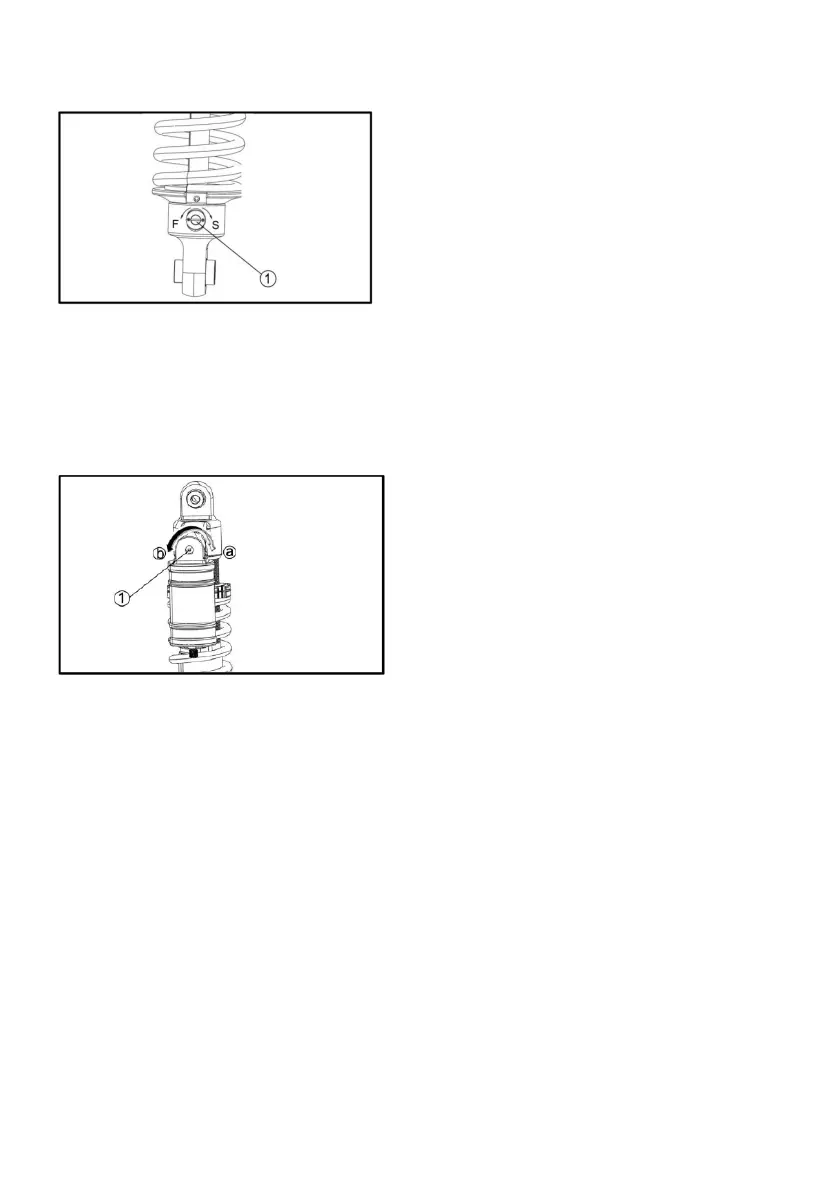

a. Compression damping force adjusting screw
• Suspension components become hotduring operation. Never touch the compression damping force
adjusting screw, the rebound damping force adjusting screw or the oil reservoir with your bare hand
or skin until suspension components have cooled.
• Always adjust the shock absorberassemblies on the left and right side to the same setting. Uneven
adjustment can cause poor handling and loss of stability, which could lead to an accident.
a. Rebound damping force adjusting screw
Compression damping force
Turn the compression damping force adjusting screw (use 3.0 allen wrench) in direction ⓐ to increase
the compression damping force and thereby harden the damping, and in direction ⓐ to decrease the
compression damping force and thereby soften the damping.
