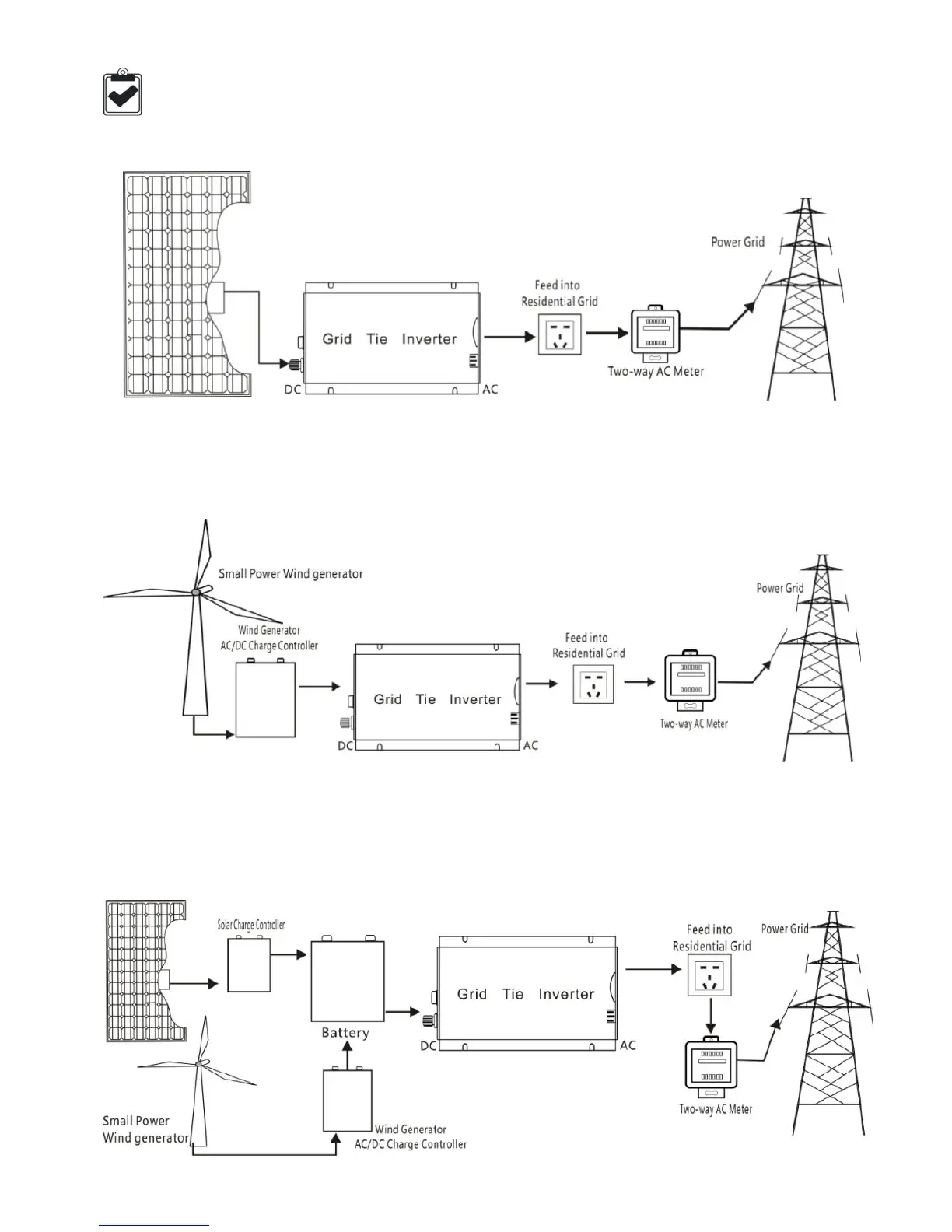

1. Work with 60 cells solar panel(Vmp:26-30V,Voc:34-38V)
2. Work with wind turbine, output DC voltage is fit in with the range as specified
and a 24V or 30V charge controller needed to be used if the wind turbine
without build-in AC TO DC charge controller.
3. Work with battery, PV module and wind turbine charging the battery and
battery discharging to inverter for converting AC power which will feed into
power grid.
Explore Applications Diagram
