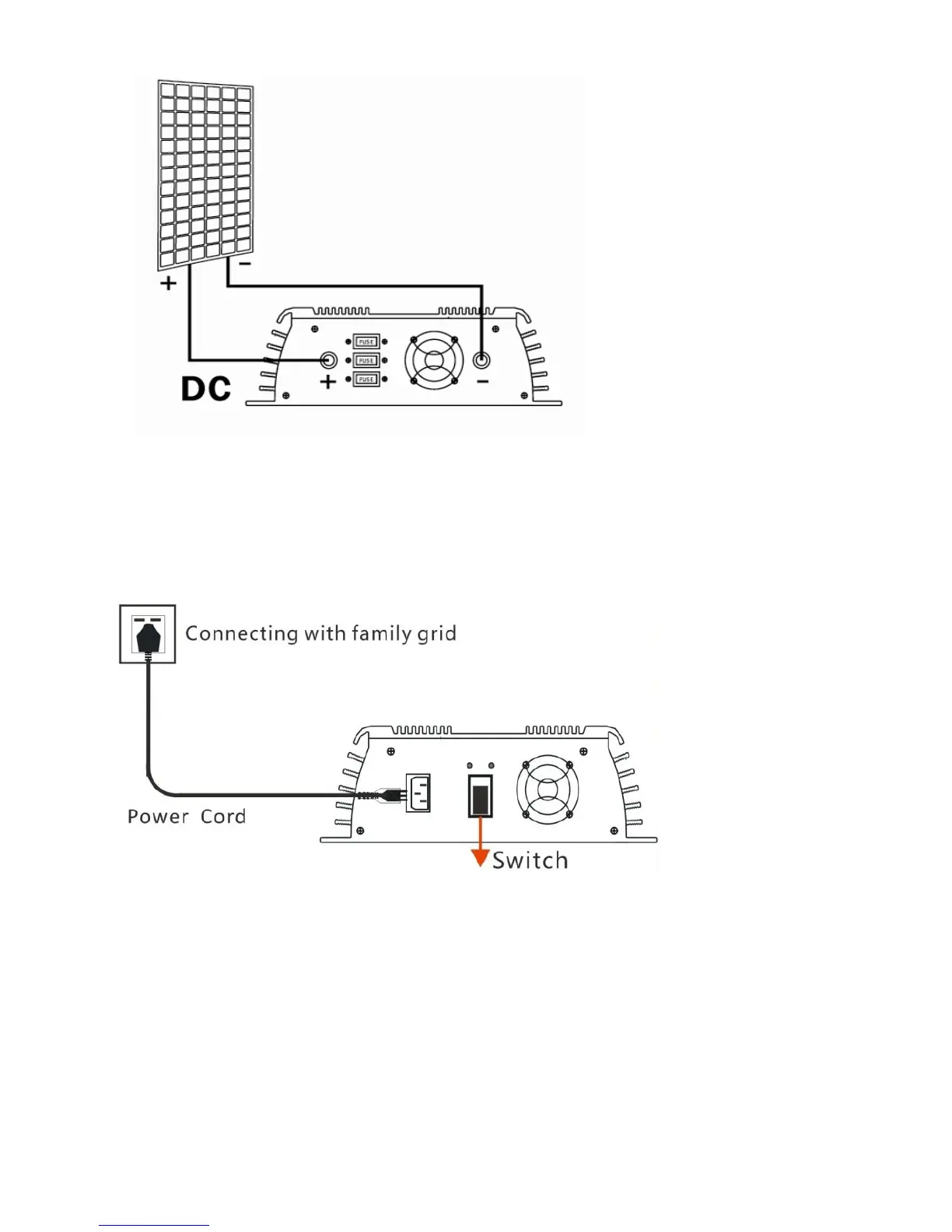

4. AC power cable connects with Smart Microinverter and residential
power grid which refers to low voltage civilian single-phase power
grid.
5. Switch on power grid after check for input and output connections are
correct and then switch on the Smart Microinverter. The red and green
LED lights up at the same time and then red LED lights off follow on
and green LED flash fast, it is means that Smart Microinverter is run
for MPPT operation.When green LED long light and it is means that
maximum power point lock-in,Smart Micro inverter proper
functioning and output steady.
